Gold Shaking Table For Sale
1.Instruction of gold concentrator
6-S shaking table is one of the main equipment of gravity concentration, it is widely used in separating tungsten, tin, niobium, gold and other rare metals and precious metal. Can be used for roughing, selection, and choose different operations, such as, selecting coarse sand (2-0. 5 mm), fine sand (0.5 0.074 mm). The slime different grade (0.074) and so on. Can also be used to choose don't iron, manganese ore and coal. When processing the minerals such as tungsten, tin, table of effective recycling granularity range is 2-0.22 mm.
2.Gold shaking table parameter
Name | Unit | Coarse sand table | Fine sand table | Slurry table | |
Table dimension | Length | mm | 4450 | 4450 | 4450 |
Driving end | mm | 1855 | 1855 | 1855 | |
Concentrate end | mm | 1546 | 1546 | 1546 | |
Max. approved grain size | mm | 2 | 0.5 | 0.15 | |
Working capacity | t/d | 30-60 | 10-20 | 15-25 | |
Concentration | % | 25-30 | 20-25 | 15-25 | |
Stroke | mm | 16-22 | 11-16 | 8-16 | |
Frequency | f | 45-48 | 48-53 | 50-57 | |
Water | t/d | 80-150 | 30-60 | 10-17 | |
Electric motor power | KW | 1.1 | 1.1 | 1.1 | |

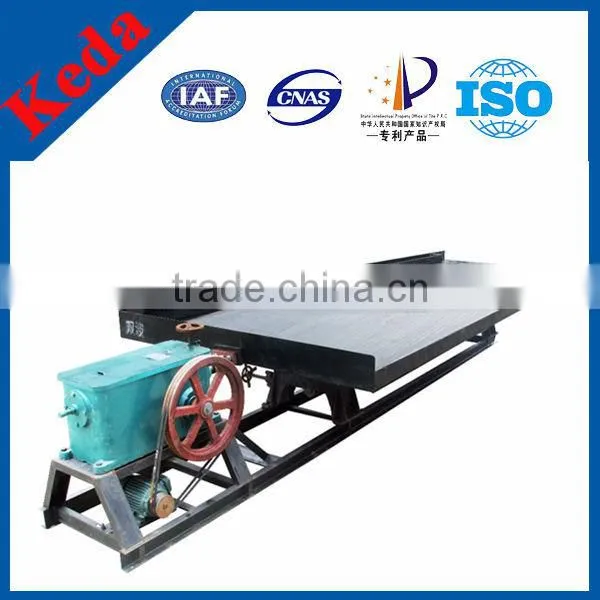

3. Structure
4.Production
6-S shaking table with high rich ore ratio, high efficiency, "easy, easy to adjust stroke. Changing transverse slope and stroke is still can keep the surface of bed movement balance, spring is placed in the casing, compact structure, and can, in turn, the final concentrate and tailings in the end.
1.--We will provide 12-months for the quality of the diesel engines, generators, gear boxes, hydraulic system, control system for free.
-- Longlife warranty with charging.
--Wearing parts are not included.
2.---24hours after sales service.
3.---Engineer is available to go aboard to conduct the installation and train operators
4.---We have experienced and qualified technicists and engineers who can design rational and feasible solutions according to clients’ requirements and the working condition.
1. STL Concentrator
A). Wide application range : It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
B). High efficiency: test proved, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 0.04mm.
C). Quick return, high profits: usually, the investor can Achieve profitability within half a year.
Model | KDL19 | KDL30 | KDL60 | KDL80 | KDL100 |
Capacity T/H | 0.25-0.30 | 3.0-5.0 | 15-20 | 40-50 | 80-100 |
Feed particles mm | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
Feed density % | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
Recoil of water T/H | 1.5-2 | 4.0-6.0 | 10.0-15.0 | 17-25 | 40-60 |
Concentrate production | 2.0-3.0 | 10.0-20.0 | 30-40 | 60-70 | 70-80 |
(kg per time) |
|
|
|
|
|
Motor Power kw | 0.75 | 3 | 7.5 | 11 | 18.5 |
Cone rotational speed | 800 | 600 | 460 | 400 | 360 |
Water Pressure MPa | 0.04 | 0.1 | 0.16 | 0.18 | 0.2 |
Overall Size mm | 790×785×790 | 1150×1360×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 |
Weight | 300kg | 500kg | 1300kg | 1800kg | 2800 |
2.--Vibrating Chute / Fixed Chute With Carpet
A).--Keda shaking chute is upgraded with recoil box, make sure the material can be good concentrated on the table instead of flow away quickly. the recovery rate can be >90%.
B).--The new generation shaking table is equipped with electric hoist to save time to collect the concentrated black sand and man force.
3.--Shaking Table/Concentrate Table
4.--Gold Furnace: from 2 kg-50kg
