Manufacturer of stone washing machine artificial sand washer
1.Sand washing machine feature
Keda series high-efficient sand washing machine is the necessary wheel and bucket sand washing equipment, which is used for sand making . It can wash stone powder and residual away from the mixed sands produced by sand making machine to improve the quality of sand. It is produced by considering the home sand industry situation, which is widely used to wash,fractionate and dehydrate in sandstone factory,sand factory,hydroelectric concrete dam,concrete casting basin,glassworks quartz sand and pressure oil backfilling sand. High clean ratio,reasonable structure,high capacity,low powder cost and less waste are its features. Especially its transmission parts are isolated from water and sand to reduce the malfunction compared with traditional sand washer. And it is the best choice if you want to upgrade the product.
2. Sand stone washer Basic Parameter:
| Type | KDSSJ12-26 | KDSSJ15-28 |
| Dimension(L*W*H) | 3400x2300x2700 | 3600x2800x2900 |
| Water wheel dimension | φ2600x1200double row | φ2800x1500double |
| Material | 8mm | 8mm |
| Feeding hopper dimension | 3400x1300 | 3600x1600 |
| Material | 4mm | 4mm |
| Working capacity m³/h | 50-60 | 80-100 |
| Max.approval grain size(mm) | ≤12 | ≤12 |
| Main Power(kw) | 7.5kw-4 | 11kw-4 |
| Submersible pump | ||
| Power | 5.5kw | 7.5kw |
| Clean Water Flow m³/h | 60 | 65 |
| Conveyor | ||
| Length mm | 10000 | 10000 |
| Belt width mm | 600 | 800 |
| Frame material | 12#channel steel | 12#channel steel |
| Electromotor kw | 5.5 | 7.5 |

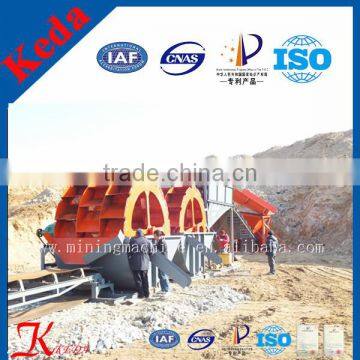

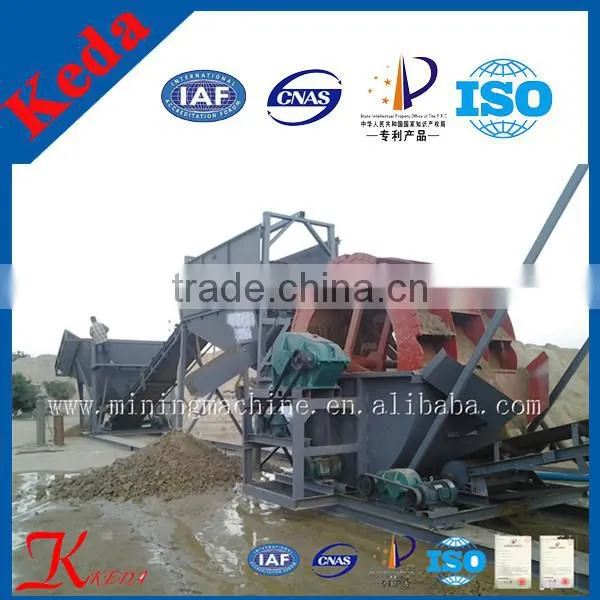

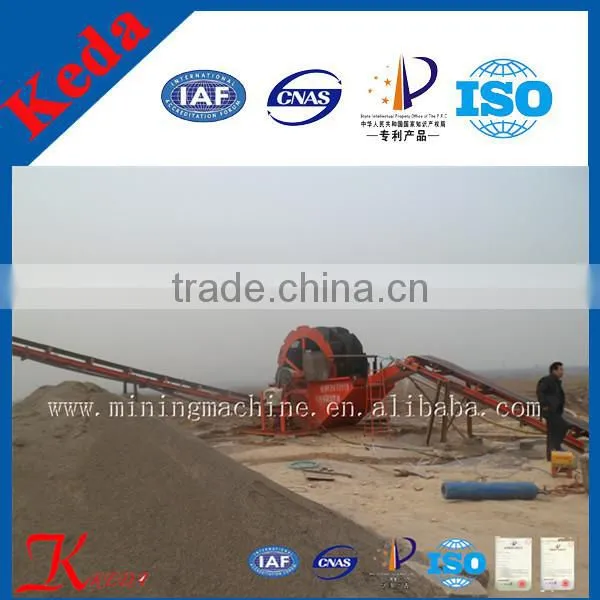

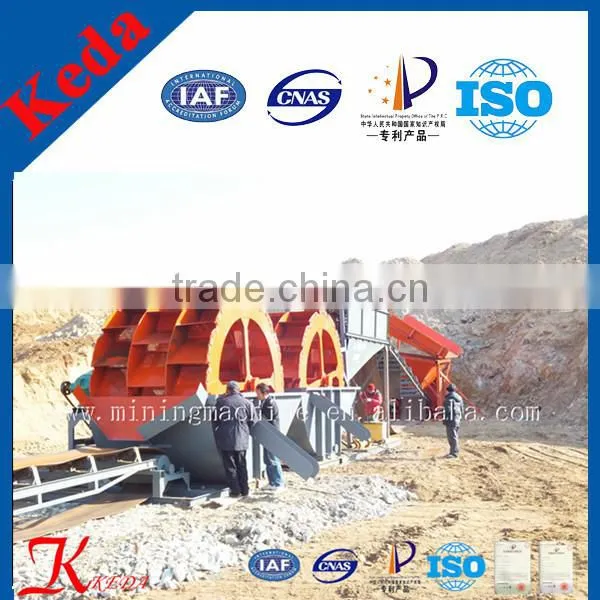

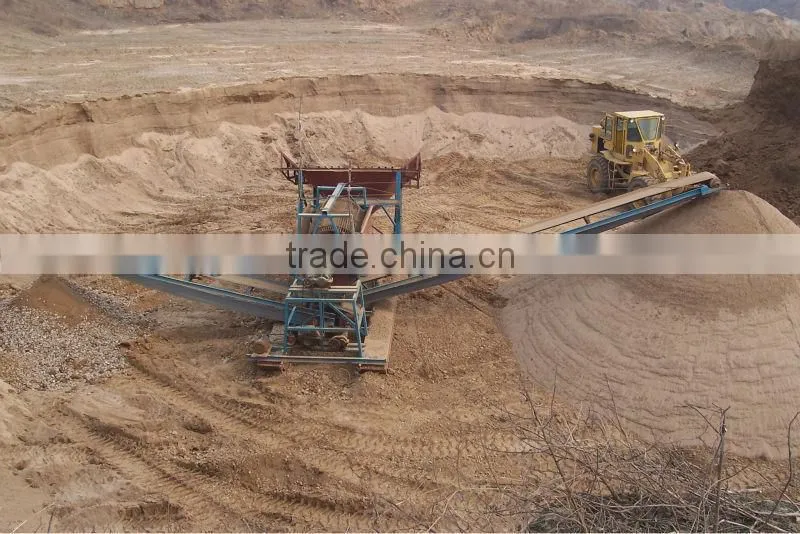

3.sand mining washer Working site

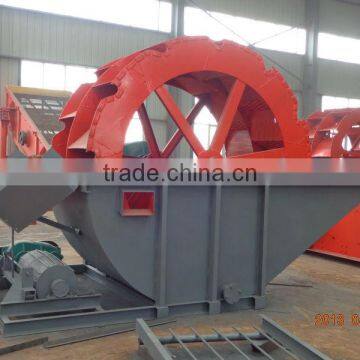

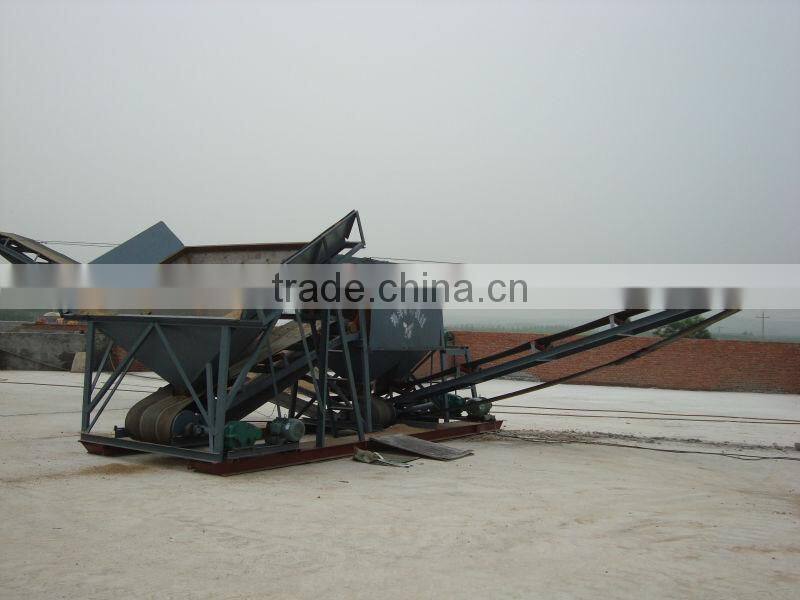

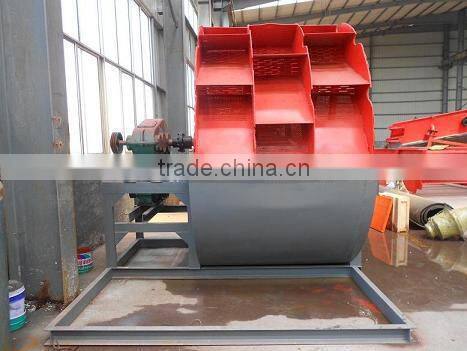

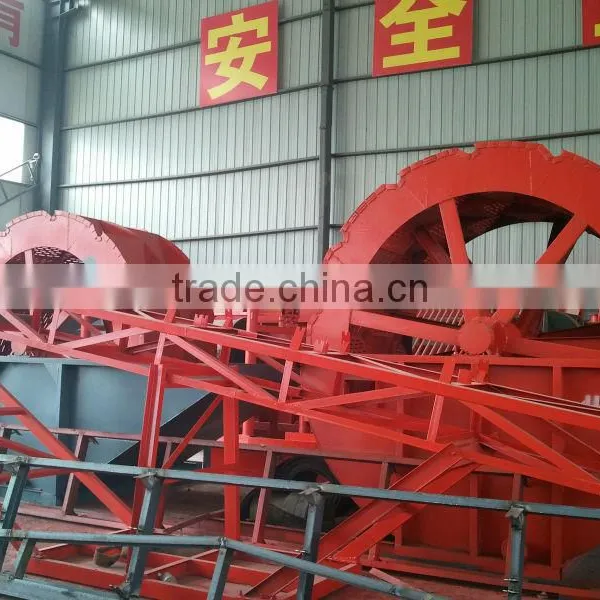

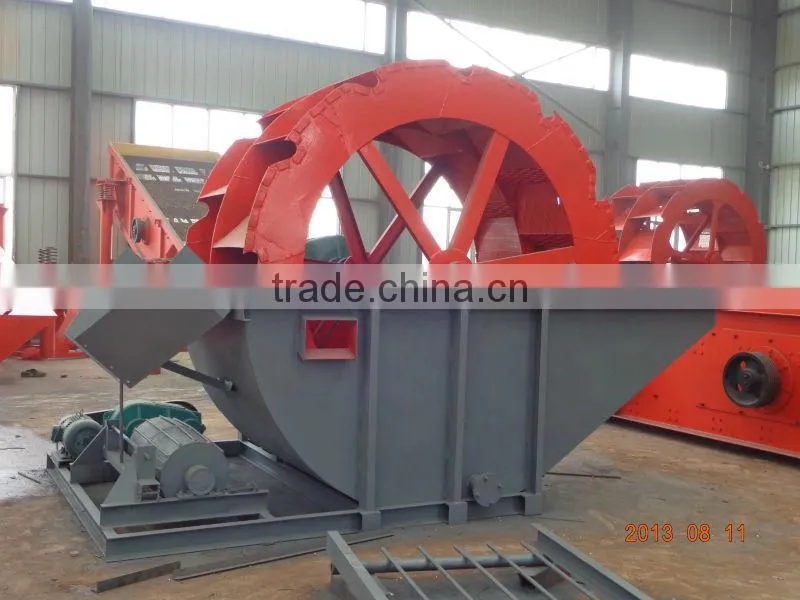

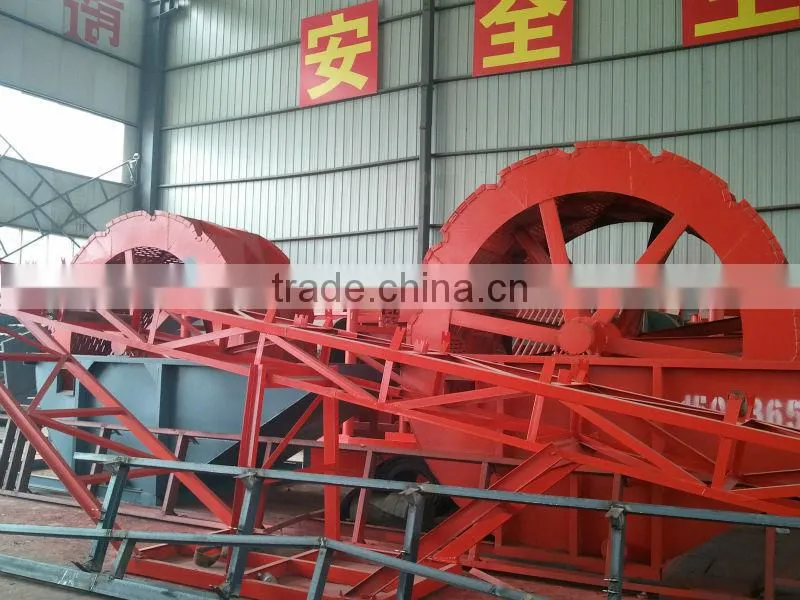

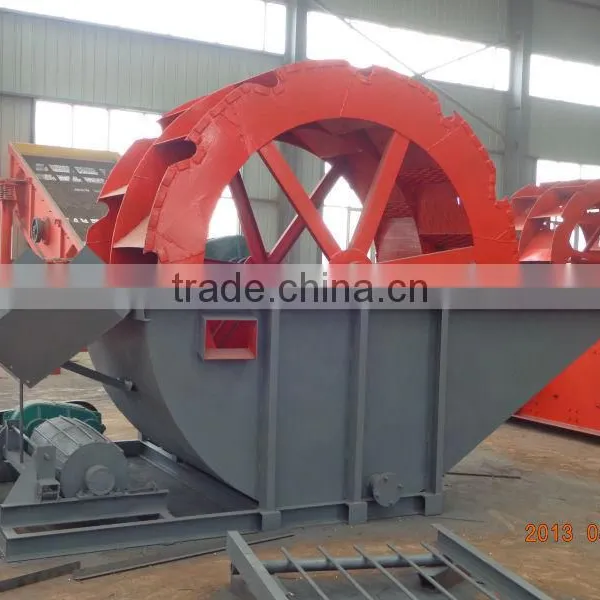

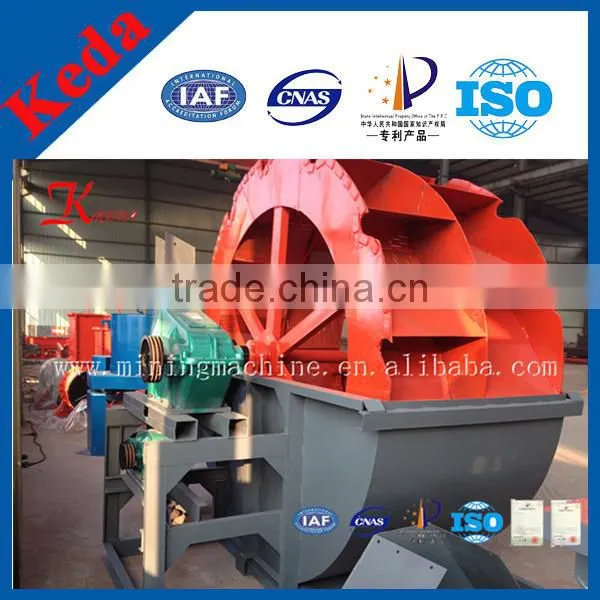

Sand stone washer details
Customer vising our company

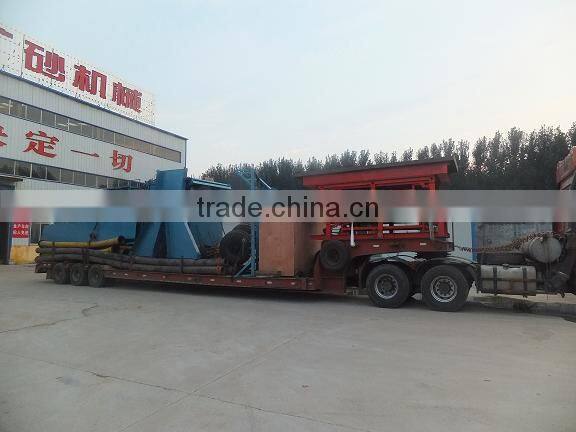

Delivery before shipping
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Our engineers will arrive your worksite to assemble the dredger. Meanwhile, we can train your staff for free, until they can operate the dredger by themselves.
Qingzhou Keda Mining Machine Co,.Ltd
Eden Lee
Tel/Fax:0086-0536-2105419
Email:sales09 @miningmachine.net
Skype:kedamachinery04
