High efficient Sand/Stone washing machine for sale
1.Sand washing machine feature
Keda series high-efficient sand washing machine is the necessary wheel and bucket sand washing equipment, which is used for sand making . It can wash stone powder and residual away from the mixed sands produced by sand making machine to improve the quality of sand. It is produced by considering the home sand industry situation, which is widely used to wash,fractionate and dehydrate in sandstone factory,sand factory,hydroelectric concrete dam,concrete casting basin,glassworks quartz sand and pressure oil backfilling sand. High clean ratio,reasonable structure,high capacity,low powder cost and less waste are its features. Especially its transmission parts are isolated from water and sand to reduce the malfunction compared with traditional sand washer. And it is the best choice if you want to upgrade the product.
2. Sand stone washer Basic Parameter:
| Type | KDSSJ12-26 | KDSSJ15-28 |
| Dimension(L*W*H) | 3400x2300x2700 | 3600x2800x2900 |
| Water wheel dimension | φ2600x1200double row | φ2800x1500double |
| Material | 8mm | 8mm |
| Feeding hopper dimension | 3400x1300 | 3600x1600 |
| Material | 4mm | 4mm |
| Working capacity m³/h | 50-60 | 80-100 |
| Max.approval grain size(mm) | ≤12 | ≤12 |
| Main Power(kw) | 7.5kw-4 | 11kw-4 |
| Submersible pump | ||
| Power | 5.5kw | 7.5kw |
| Clean Water Flow m³/h | 60 | 65 |
| Conveyor | ||
| Length mm | 10000 | 10000 |
| Belt width mm | 600 | 800 |
| Frame material | 12#channel steel | 12#channel steel |
| Electromotor kw | 5.5 | 7.5 |
3.Our Sand stone washer principle:
When it Works, the motor through the V-belt, reducer, gear reducer driven impeller, after the slow rotation, sand and gravel are washed into the tank to the trough, in the impeller, driven by rolling and grinding each other to remove cover the gravel surface impurities, while destruction of the vapor-coated layer of sand to facilitate dehydration; the same time, add water to create a strong water flow, in a timely manner a small proportion of impurities and foreign matter away from the export of washing tank overflow discharge to complete the cleaning effect. Clean sand and gravel away from the blade end into the gravel from the rotation of the impeller out of Trough, the completion of gravel cleaning effect.

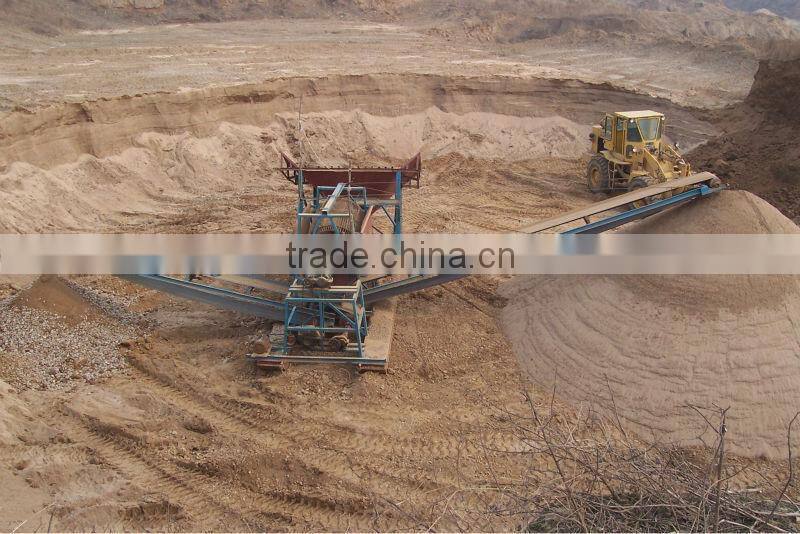

4.sand mining washer Working site
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Customer vising our company
1.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
2.Can we vist your company?
Yes, our company warmly welcome clients to visit our company at anytime. we will prepare the VISA for you, and arrange hotel, traffic, translator in order to let you stay comfortable while you are visiting us. Moreover, during the visiting, you can check our factory and machinery, and take tour to some of the nearby mining project build by our company. Also, we can throughly discuss your project in order to build a flawless project in the future.
3. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Kedaequipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
4. If i need the complete mineral processing line. is Keda able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
If our product is what you need,please contact without hesitate!
Contact person:
Qingzhou Keda Mining Machine Co,.Ltd
Eden Lee
Tel/Fax:0086-0536-2105419
Email:sales09 @miningmachine.net
Skype:kedamachinery04
