Weifang Manufacturer River Sand Washer for Sale

Weifang Manufacturer River Sand Washer for Sale photo-1
US$ 3,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
50-100T/H
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Gravity Separator
Production Capacity 50-100T/H
Place of Origin Shandong, China
Brand Name KEDA
Model Number KDXS
Voltage 220/380V
Power(W) 24-110kw
Dimension(L*W*H) 3800x3100x3100mm
Weight 5t
Certification ISO 9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Weifang manufacturer River Sand washer for sale
1 Durability
2 Easy to maintain
3 Manufacturer
4 ISO 9001

Weifang manufacturer River Sand washer for sale





1.Sand washer Description:



1)sand washer are mainly for the construction of highways, railways, bridges, tunnels high standards of engineering

2)sand washer used to wash aggregated rock of specialized equipment, with ease of movement, processing power.

3)sand washer high rate of savings in power and so on, compared with domestic like products.



2.Sand washer Feature:



1)high efficiency and capacity

2)Reasonable structure, high efficiency, and little sand loss during washing;

3) Reliable operation

4) Simple structure
5) Convenient to install and maintain
6) Enclosed type can prevent dust pollution

7)The most advantageous factor is that the transmission device isolates with sand and water, which greatly reduces the failure rate.



3.Sand washer Basic Parameter:



     TypeKDSSJ15-28KDSSJ18-30
Dimension(L*W*H)3600x2800x29003800x3100x3100
Water wheel dimensionφ2800x1500doubleφ3000x1800triplex
Material8mm10mm
Feeding hopper dimension3600x16003800x1900
Material4mm5mm
Working capacity m³/h80-100120-150
Max.approval grain size(mm)≤12≤12
Main Power(kw)11kw-415kw-4
Submersible pump
Power7.5kw7.5kw
Clean Water Flow   m³/h6565
Conveyor
Length  mm1000010000
Belt width  mm8001000
Frame material12#channel steel12#channel steel
Electromotor   kw7.511





4.Sand washer Application:



1)Applicable to fine-grained and coarse-grained materials of the washing operation.

2)Stone washing machine in the rational structure, convenient maintenance, handling a large amount of power, consumption is small, clean and high.

3)Novel seal structure, the new shaft installed, adjustable septic tanks to ensure that the product efficiency, durability, cleaning, dewatering effect, and fine-grained features such as product stability.

Sand washer Working site

Weifang manufacturer River Sand washer for sale

Bucket Sand washer

Weifang manufacturer River Sand washer for sale

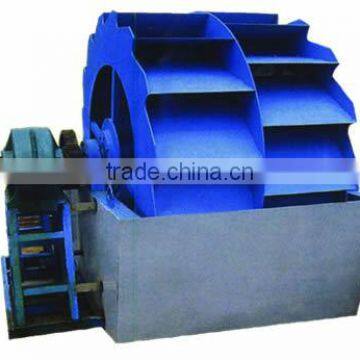

Wheel Type Sand washer

Weifang manufacturer River Sand washer for sale

Sand Recycle Equipment


Weifang manufacturer River Sand washer for sale

Weifang manufacturer River Sand washer for sale

Working Site

Weifang manufacturer River Sand washer for sale

Weifang manufacturer River Sand washer for sale

About our company

1)Qingzhou Keda Mining  Machine Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.



2)we design produce various of products according to the customers requirement and geographical condition. It is a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.



3)We have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.

Weifang manufacturer River Sand washer for sale

Customer vising our company

Weifang manufacturer River Sand washer for sale

Weifang manufacturer River Sand washer for sale
