KDXS Hot Sale Sand Washer/gold Washer

KDXS Hot Sale Sand Washer/gold Washer photo-1
US$ 3,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
50-100T/H
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Gravity Separator
Production Capacity 50-100T/H
Place of Origin Shandong, China
Brand Name KEDA
Model Number KDXS
Voltage 220/380V
Power(W) 24-110kw
Dimension(L*W*H) 3800x3100x3100mm
Weight 5t
Certification ISO 9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

KDXS Hot Sale Sand Washer/gold washer
1 Durability
2 Easy to maintain
3 Manufacturer
4 ISO 9001



KDXS Hot Sale Sand Washer/gold washer











Product Description



1.Sand Washer Application:



1)Sand washer Applicable to fine-grained and coarse-grained materials of the washing operation.



2)Stone washing machine in the rational structure, convenient maintenance, handling a large amount of power, consumption is small, clean and high.



3)Novel seal structure, the new shaft installed, adjustable septic tanks to ensure that the product efficiency, durability, cleaning, dewatering effect, and fine-grained features such as product stability.





2.Sand Washer Basic Parameter:



     TypeKDSSJ15-28KDSSJ18-30
Dimension(L*W*H)3600x2800x29003800x3100x3100
Water wheel dimensionφ2800x1500doubleφ3000x1800triplex
Material8mm10mm
Feeding hopper dimension3600x16003800x1900
Material4mm5mm
Working capacity m³/h80-100120-150
Max.approval grain size(mm)1212
Main Power(kw)11kw-415kw-4
Submersible pump
Power7.5kw7.5kw
Clean Water Flow   m³/h6565
Conveyor
Length  mm1000010000
Belt width  mm8001000
Frame material12#channel steel12#channel steel
Electromotor   kw7.511







3.Our Sand Washer Advantage:



sand washer simple structure

  • the bearing device of impeller drive is separated from water and materials with water.
  • Avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.

Sand Washer has the feature:

  • high washing quality
  • reasonable structure
  • large outputsmall energy consumption
  • little sand loss during the washing process.
  • the transmission part is separated from water and sand
  • There is little loss for medium-sized and fine sand and stone powder.
  • The grade and the fineness of the sand for construction after being washed can be up to the national standards
  • There are no other wearing parts except the screen mesh.
  • It features long service life and few times for maintenance.



4.Sand Washer Working Site:



1)Mining



2)Metallurgy



3)Industrial Material



4)Construction



5)Environmental Protection

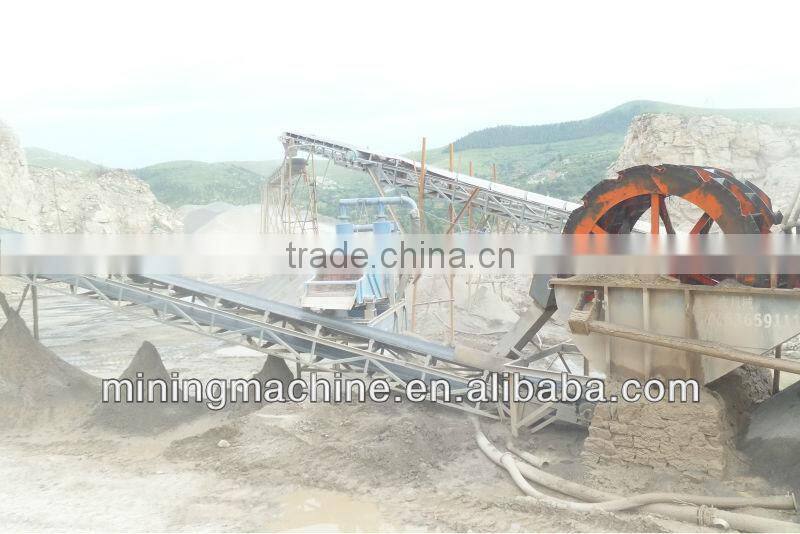

Sand washer working site

KDXS Hot Sale Sand Washer/gold washer

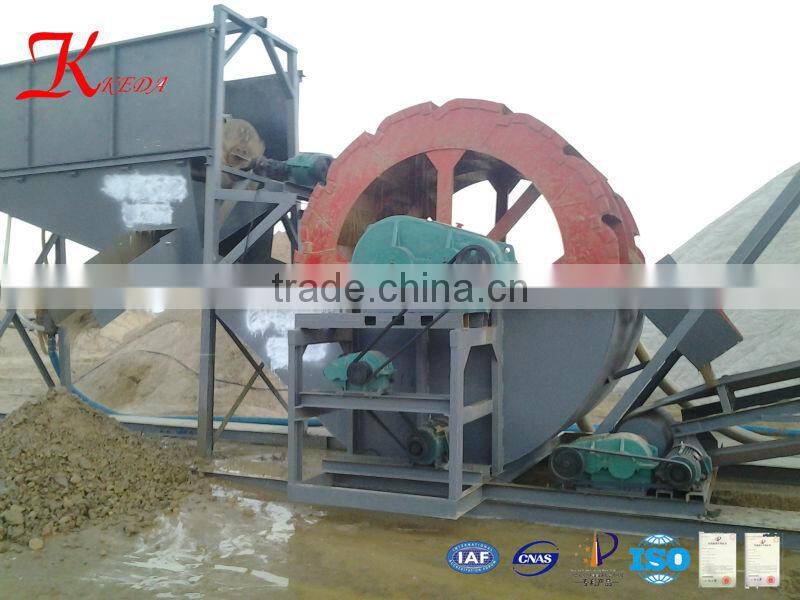

Sand Washer

KDXS Hot Sale Sand Washer/gold washer

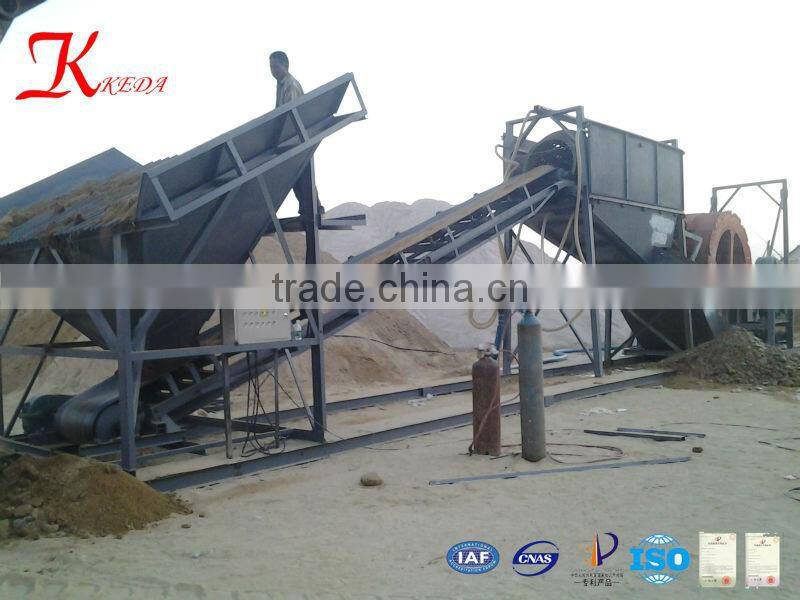

Mineral Hopper

KDXS Hot Sale Sand Washer/gold washer

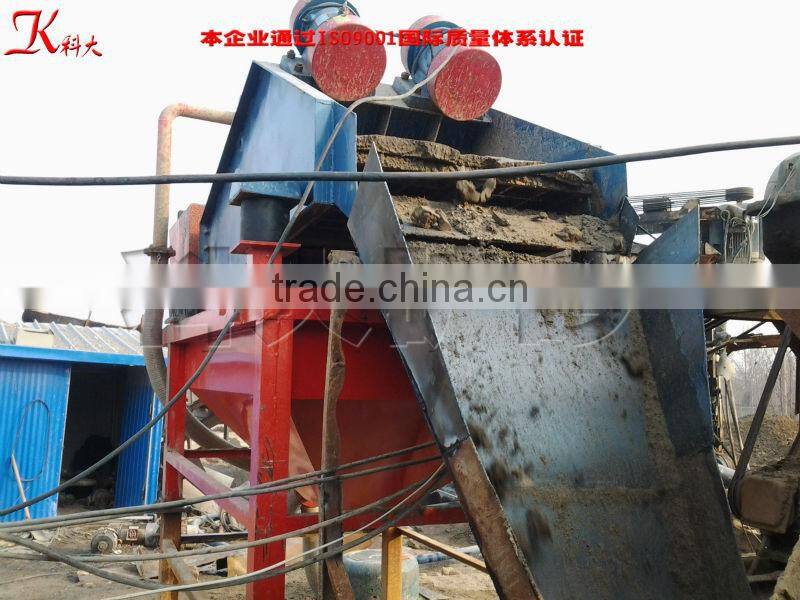

Fine Sand Recycle Equipment

KDXS Hot Sale Sand Washer/gold washer


Company Information



5.About our company:

1)Qingzhou Keda Mining  Machine Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.

2)we design produce various of products according to the customers requirement and geographical condition. It is a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.

3)We have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.

Customer vising our company:

In order to decrease the deliver time, we will make some ready or semi-product in our workshop.Welcome all of you to our factory and check the products first.

KDXS Hot Sale Sand Washer/gold washer KDXS Hot Sale Sand Washer/gold washer
