Malaysia Hot sand washing equipment for sale
1.sand washing equipment Feature
a.The quality of washing sand is high.
b.No easy to damage.
c.Easy to operation ,one person can control it.
d.reasonable structure, high efficiency, and little sand loss during washing;
e.the transmission device isolates with sand and water, which greatly reduces the failure rate.
2.sand washing equipment Parameter
| Type | KDSSJ12-26 | KDSSJ15-28 | KDSSJ18-30 |
| Dimension(L*W*H) | 3400x2300x2700 | 3600x2800x2900 | 3800x3100x3100 |
| Water wheel dimension | φ2600x1200double row | φ2800x1500double | φ3000x1800triplex |
| Material | 8mm | 8mm | 10mm |
| Feeding hopper dimension | 3400x1300 | 3600x1600 | 3800x1900 |
| Material | 4mm | 4mm | 5mm |
| Working capacity m³/h | 50-60 | 80-100 | 120-150 |
| Max.approval grain size(mm) | ≤12 | ≤12 | ≤12 |
| Main Power(kw) | 7.5kw-4 | 11kw-4 | 15kw-4 |
| Submersible pump | |||
| Power | 5.5kw | 7.5kw | 7.5kw |
| Clean Water Flow m³/h | 65 | 65 | |
| Conveyor | |||
| Length mm | 10000 | 10000 | |
| Belt width mm | 800 | 1000 | |
| Frame material | 12#channel steel | 12#channel steel | 12#channel steel |
| Electromotor kw | 7.5 | 11 |
3.sand washing equipment Introduce
1)Sand Washing Machine is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand
2)sand washing machine can improve the quality of the sand.
3)The materials include the required gravel in building-site, gravel factories, hydropower station and concrete dam site, post and electric pole factory
It is the perfect equipment for domestic sand washer industry.

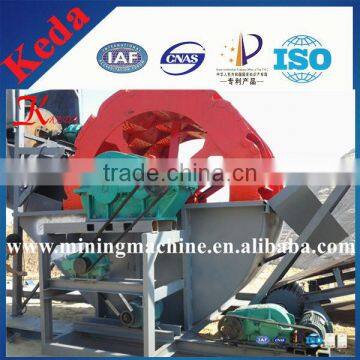

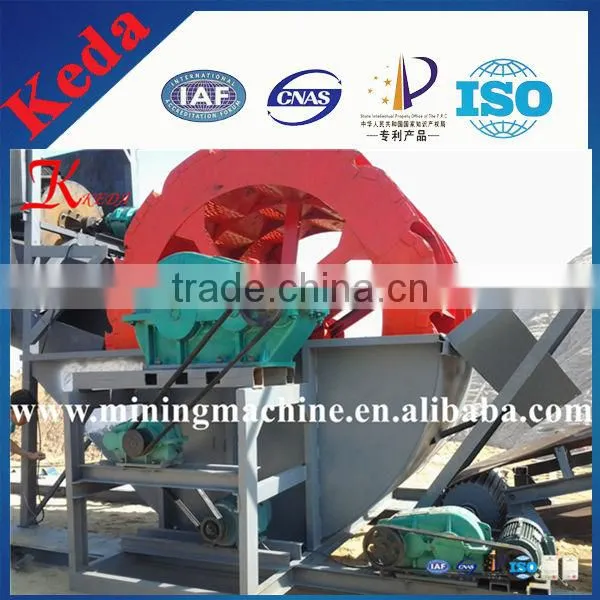

4.Details Of sand washing equipment
5.sand washing equipment Working Site:
6.About Our Company- sand washing equipment Manufacturer
1)Qingzhou Keda Mining Machine Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products. And we design produce various of products according to the customers requirement and geographical condition.
2)It is a modern large-scale mineral processing equipment manufacturer have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site
3)Honesty and credit is our bussiness value , customer first.First-class quality and first-class service is the business life.

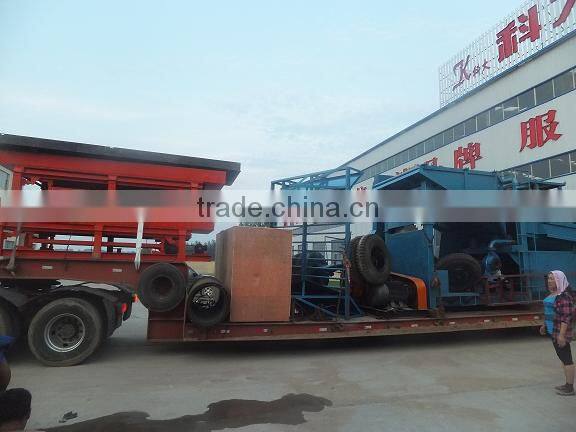

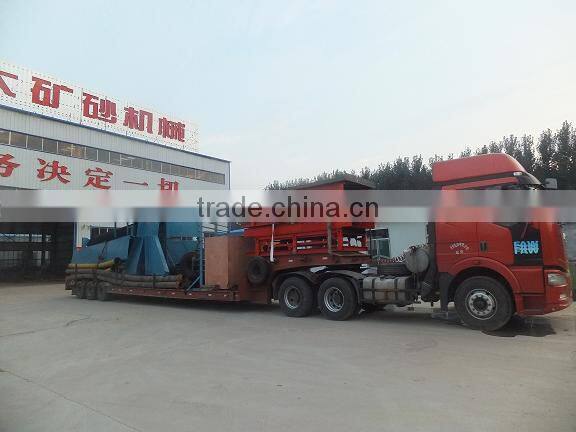

Delivery before shipping
We are original equipment manufacturer, we have more advantages as below:
1)competitive price
2)customers can test the products at anytime
3)repairing the machines in time.
