Help CenterShantui Janeoo LB1500-3B Asphalt Mixing Plant
Related Products
-
SHANTUI JANEOO STATIONARY ASPHALT BATCHING PLANT LB2000NegotiableMOQ: 1 Piece -
SHANTUI JANEOO Asphalt Mixture Equipment Asphalt Mixing Station LB1000NegotiableMOQ: 1 Piece
-
SHANTUI Janeoo Concrete Batching Plant HZS050-2H With Capacity 50m3/hNegotiableMOQ: 1 Set
-
Shantui Janeoo Concrete Mixing Mixer Truck CONCRETE TRUCK MIXER SDX5250GJBZ02NegotiableMOQ: 1 Combo
-
JS500 DOUBLE HORIZONTAL SHAFTS FORCED CONCRETE MIXERNegotiableMOQ: 1 Piece

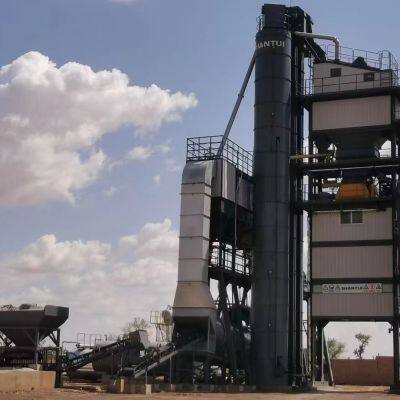

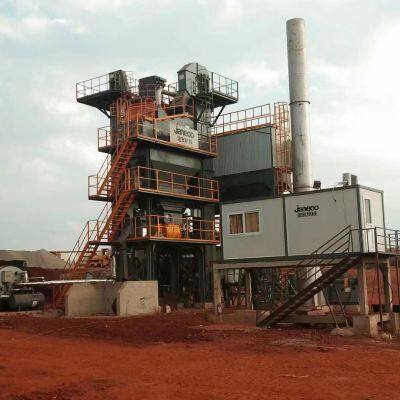

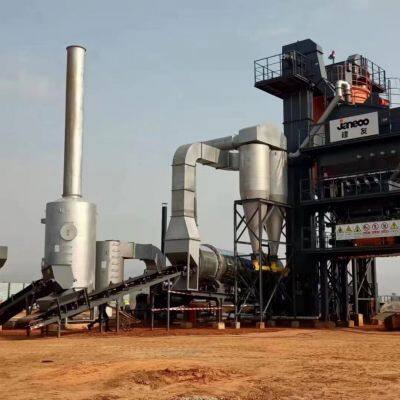

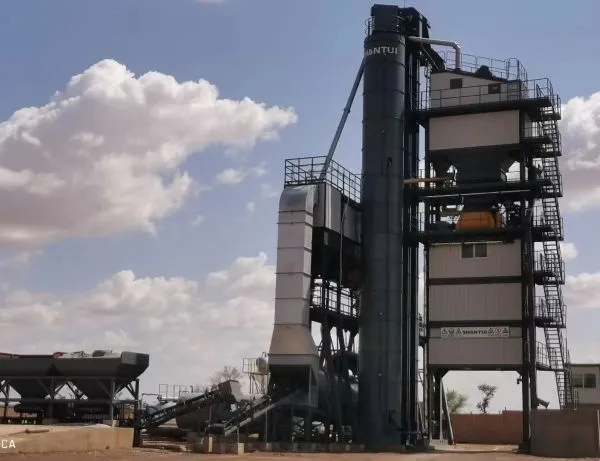

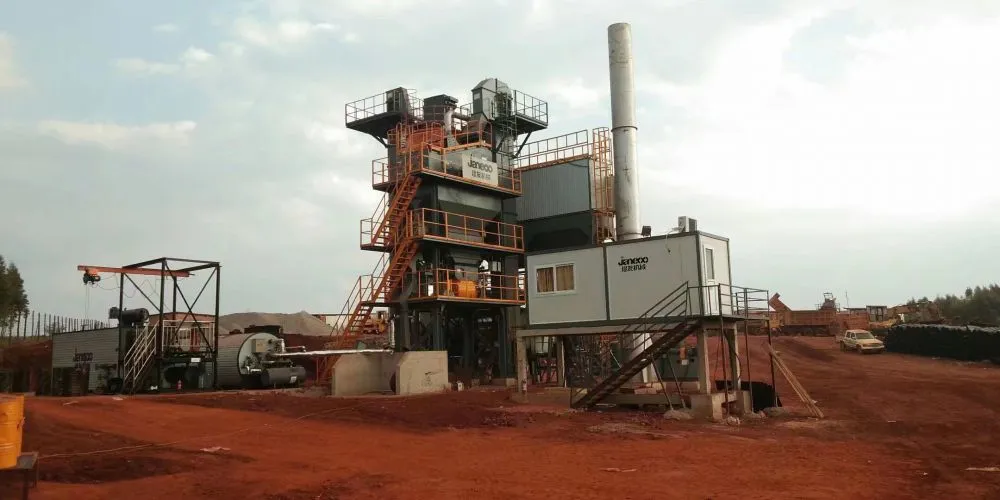

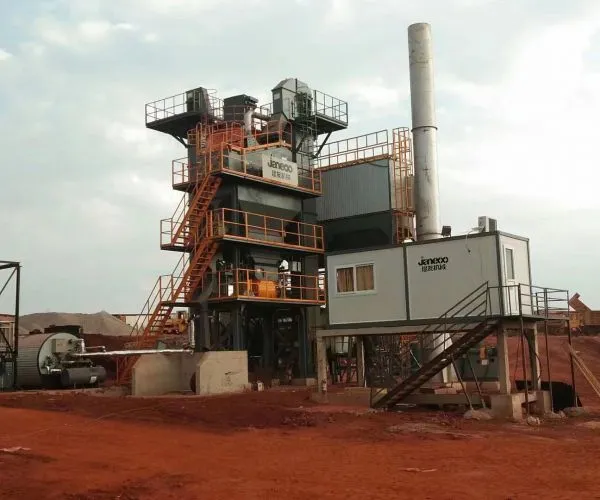

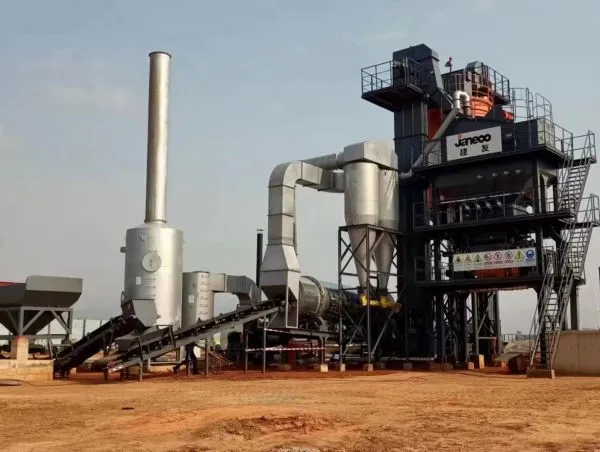

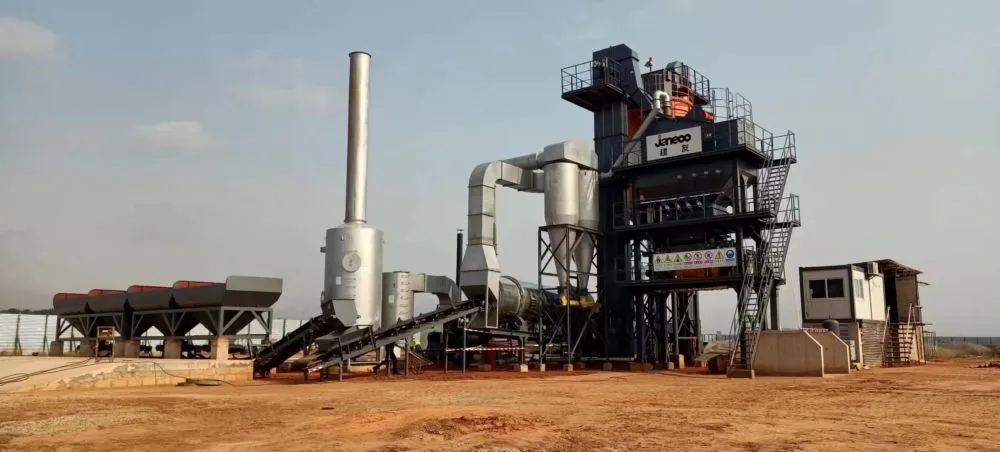

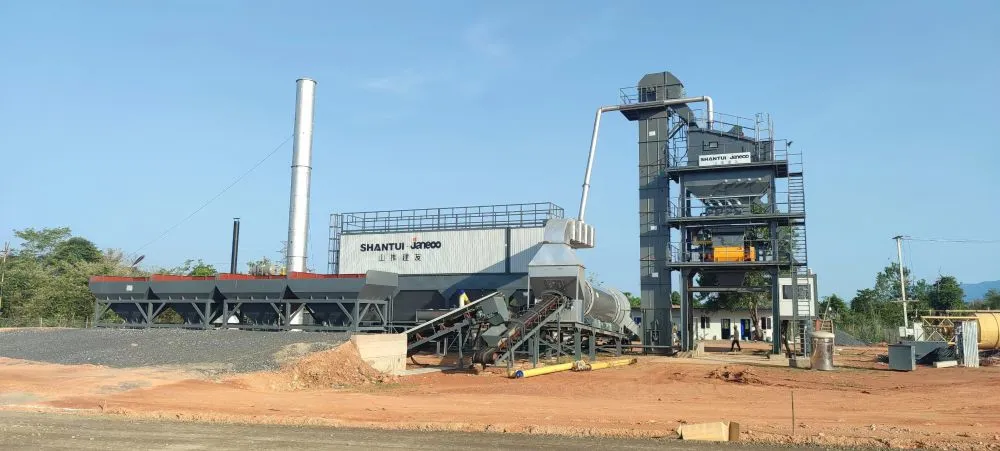

The LB1500-3B asphalt mixing equipment adopts a container modular structure design, ensuring easy disassembly and rapid site transfer. Its dust removal system utilizes a bag filter, offering high environmental performance. Equipped with a light oil burner and a 4-stage aggregate screening system, this equipment meets the construction, maintenance, and upkeep requirements of various grades of asphalt concrete pavement both domestically and internationally.
Theoretical production rate: 120 t/h Mixing host capacity: 1500kg
Mixing host power: 2X22kW Aggregate measuring hopper capacity: 1500kg
Powder metering hopper capacity: 225kg Asphalt metering hopper capacity: 150kg
Aggregate metering accuracy: ±0.5% Powder metering accuracy: ±0.3%
Asphalt metering accuracy: ±0.2% Temperature control accuracy: ≤±5℃
Dust removal efficiency: ≤50mg/Nm³ Total installed capacity: 370 kW
Total equipment mass: 95 tons Equipment footprint: 36m x 33m
