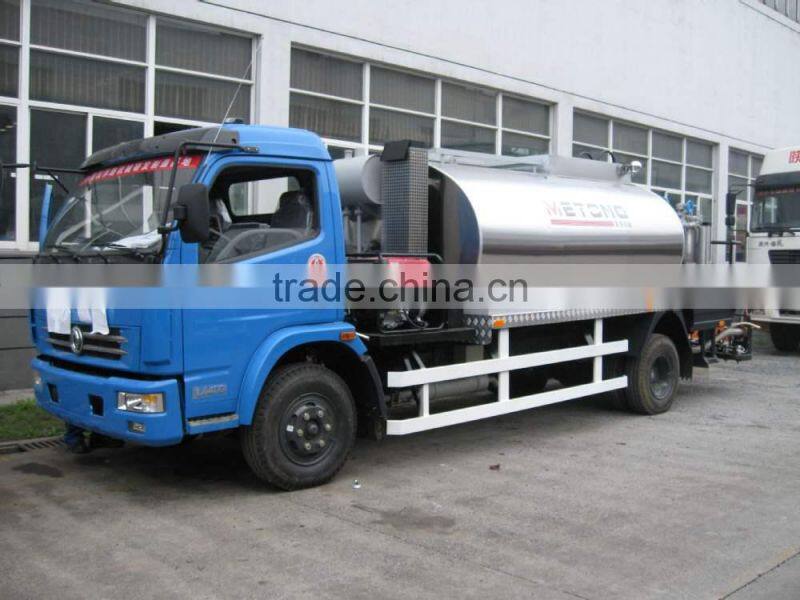

Automatic asphalt distributor truck/asphalt spray truck
Brief introduction:
LMT series of automatic asphalt distributor is made up of Chassis ,asphalt tank, asphalt pump , spray system, heat conduction oil heating system, hydraulic system, electric control system, automatic control system and rising series. The main fitting adopts the most advanced components with computer system controlled spraying. Our automatic asphalt distributor’s accuracy meets Euro standards.
Together with the advantages of asphalt distributors in the word, with automatic asphalt distributor, we innovated for new technologies.
- Any asphalt used is displaced
- Asphalt nozzle is multilayer filtrate and keeps the quality of spray
- Asphalt spraying is controlled by computer system
- Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
2.Parameters of Automatic Asphalt Distributor.
PARAMETER FOR LMT5162GLQ ASPHALT DISTRIBUTOR |
|
||||||
(Intelligence Type) |
|
||||||
Model |
LMT5162GLQ |
Engine Model |
WP10.380E32 |
|
|||
Chassis Model |
SX1255NR434C |
Displacement (L) |
9.726L |
|
|||
Truck Type |
flat head 6×2 rear drive |
Max. Power (kw) |
280 |
|
|||
Dimension (L×W×H) mm |
9875×2495×3720 |
Max. Torque (N·m) |
1500N·m |
|
|||
Cab Passenger |
3 |
Cleaning Diesel Tank Capacity (L) |
75 |
|
|||
Vehicle kerb Mass (kg) |
11.38t |
Fuel Tank Capacity (L) |
400 |
|
|||
Rated Load Mass (kg) |
25t |
Hydraulic Oil Tank Capacity (L) |
120 |
|
|||
Transmission |
RTD-11509C |
Asphalt Pump Model |
Germany Rexroth |
||||
Wheelbase (mm) |
2036 |
Asphalt Pump Displacement (ml/r) |
0.86L/r |
|
|||
Tread (front/rear) mm |
1860/1860mm |
Power Take-off Model |
included in chassis DFL1160BX |
|
|||
Min. Ground Clearance (mm) |
250 |
Burner Model |
G20-474T1 ITALY RIELLO |
|
|||
Suspension (front/rear) mm |
1430/2565 |
Temperature Control Cabin |
E5AZ JAPAN OMRAN |
|
|||
Approach/Departure Angle (°) |
20°/14° |
Invert-er |
NFA8212-2000W |
|
|||
Ramp Angle (°) |
/ |
Hydraulic Pump Model |
Germany Rexroth A11V040 |
|
|||
Max. Speed (km/h) |
99 |
Hydraulic Motor Model |
LY-A2F63W2P2 |
|
|||
Working Speed(km/h) |
2.5~10.5 |
Rated Pressure (Mpa) |
15 |
|
|||
Max. Grade ability (%) |
>23 |
Heat Conducting Oil Pump Model /Heat Conducting Oil Model |
GRY-40-25-160 /Great Wall 320# |
|
|||
Tyre Model |
10.00-20×16PR |
Generator Model |
EC6500CX HONDA |
|
|||
Tyre Pressure front/rear (kPa) |
630/630 |
Control System |
MT-1C-8(Siemens) touch screen computer control + rear plate control |
|
|||
Main Drive Ratio |
4.226 |
Asphalt Tank Capacity (L) |
8000 |
|
|||
Max. Braking Distance (m) |
<10 |
Nozzle |
39 Copper (one cylinder controls one nozzle) |
|
|||
Min. Turning Circle Dia. (m) |
<23.8 |
Spray bar Variable (m) |
0~6 |
|
|||
Oil Consumption (L/100km) |
<20 |
Spray bar Value (kg/m2) |
0.3~3.0 |
|
|||
Parking Gradient (%) |
>20 |
Emission Standard |
GB17691-2005(Ⅲ) |
|
|||
GB3847-2005 |
|
||||||

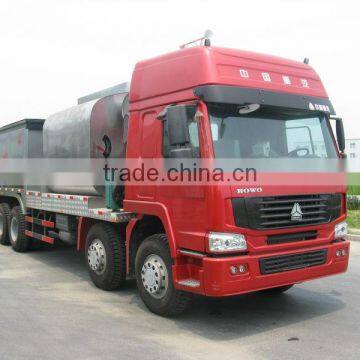

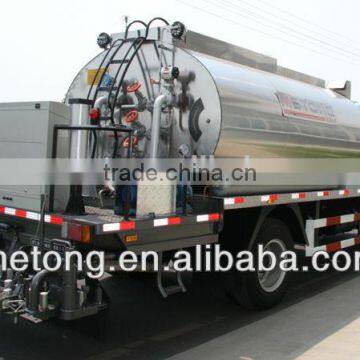

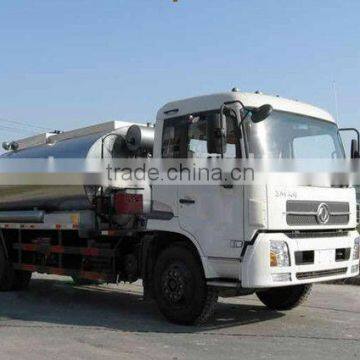

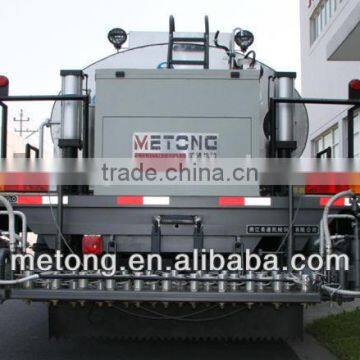

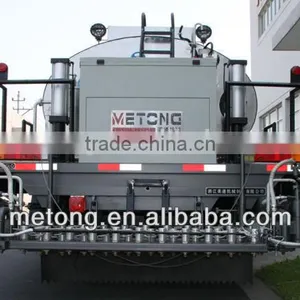

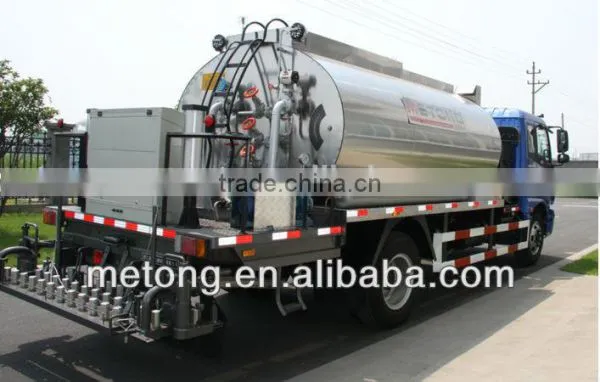

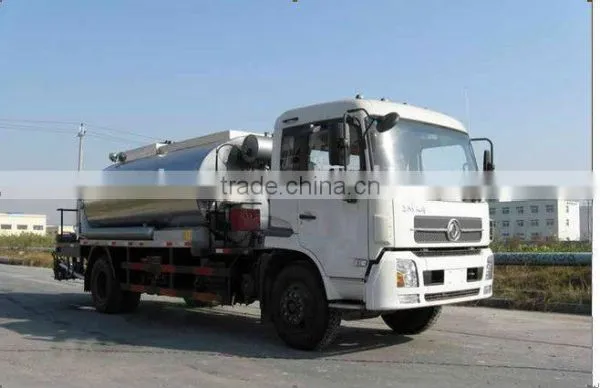

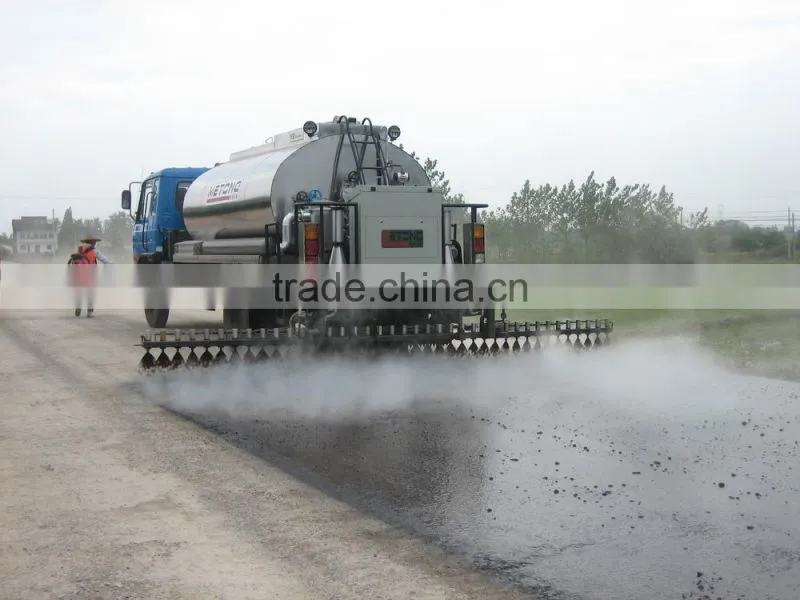

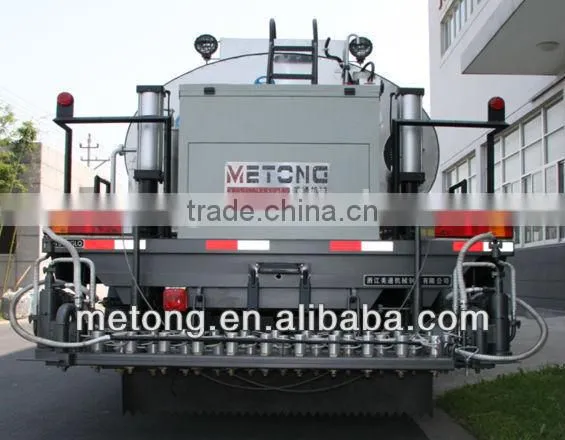

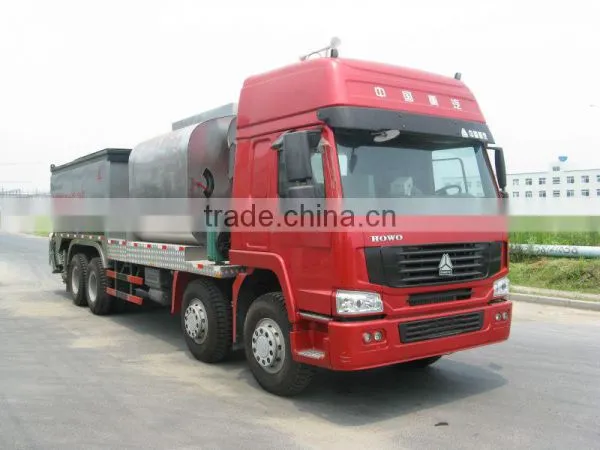

More pictures:
Our Products' Certificates(CE,SGS,ISO9001,3C,etc.)
