1. Parameter.
(1). Model name: MTR10 emulsified asphalt equipment
(2). Structures: Mobile Container
Length * width * height=11800mm*2200mm*2500mm
Total power: ≤45kw
2.Corresponding configuration.
No. | Name | Specification | Remark | |
1 | Max productivity | 10m3/h | Asphalt contect60%,Water solution 40% | |
2 | Basic bitumen transport gear pump | model | YCB-6 | Heat conducting oil for temperature preservation; Frequency conversion speed; Honeywell sensor |
flux | 6 M3/h | |||
Match engine | 4Kw | |||
3 | Colloid milling | Model | S300.4W.0.5 |
|
Flux | 10 M3/h |
| ||
Match engine | 45Kw |
| ||
4 | Water pump | Model | ISW 40-125(I) |
|
Flux | 12.5 M3/h |
| ||
RPM | 2900rpm |
| ||
Match engine | 1.5 Kw |
| ||
5 | Emulsifier supply pump and gear pump | Quantity | 1 | flow meter throttle valve is available |
model | ISWH 40-125(I) | |||
flux | 12.5 M3/h | |||
RPM | 2900RPM | |||
Match engine | 1.5Kw | |||
6 | Emulsifier circulation pump | Quantity | 1 |
|
Model | ISWH 40-125(I) |
| ||
Flux | 12.5 M3/h |
| ||
RPM | 2900RPM |
| ||
Match engine | 1.5Kw |
| ||
7 | Emulsifier mix tank | Quantity | 2 |
|
Capacity | 4M3/unit |
| ||
Material | Stainless steel(#304) tank( corrosion prevention) |
| ||
Tank dimension | tank chickness:3mm; top cover:5mm; inner diameter:1500mm;inner height:2400mm | thermal insulating layer thickness:50mm | ||
Mixer | 1.5Kw | 80-15-Y-1.5-B12-270°,97rpm,190Nm | ||
Decelerate | 15 |
| ||
Derogate speed | 97rpm |
| ||
8 | Finished emulsion bitumen transportation pump | Model | QGB/400/0.6 |
|
Flux | 400L/min or 24 M3/h |
| ||
Match engine | 7.5 Kw |
| ||
9 | finished bitumen tank | Tank thickness | 3mm |
|
Capacity | 2.5 M3 |
| ||
10 | valves application | Emulsifier | DN50 ,dual clamp butterfly valve |
|
Asphalt |
| |||
Heat oil | manual operation ,High temperature valve |
| ||
water | ball valve in stainless steel |
| ||
11 | control system | Manual frequency control | ||

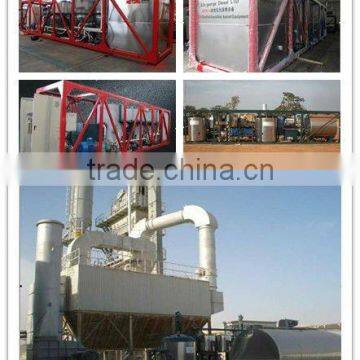

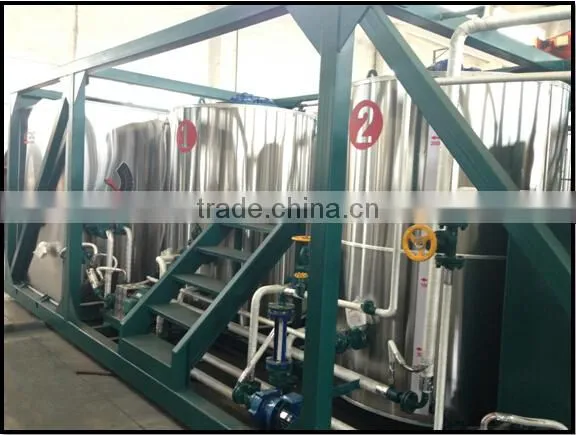

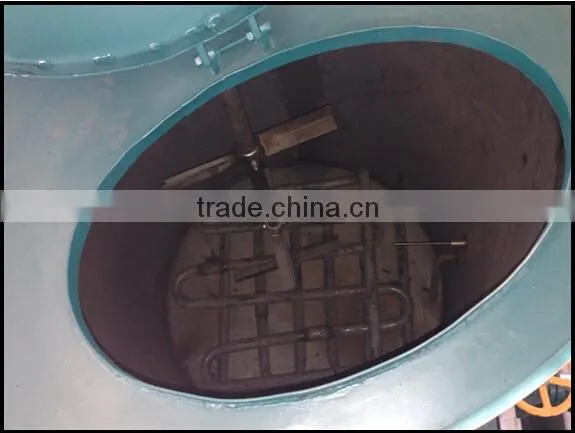

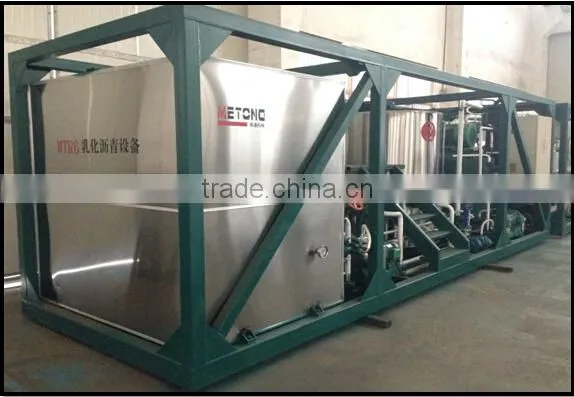

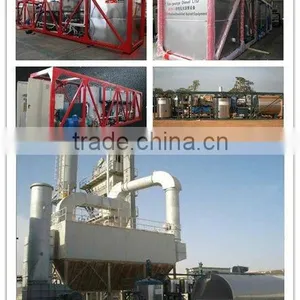

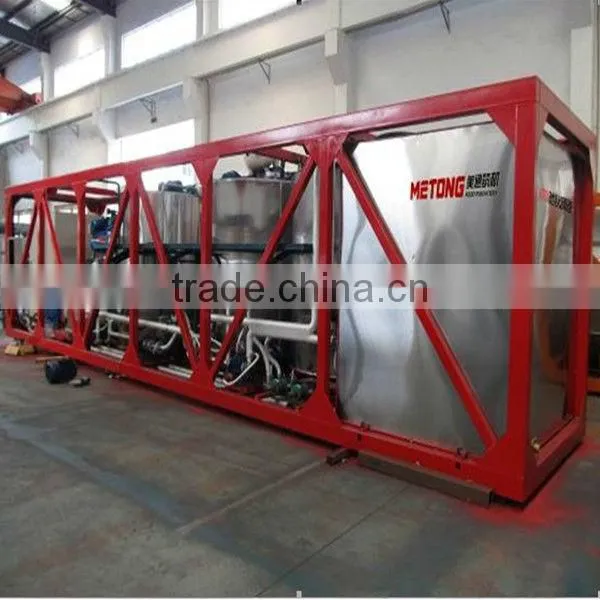

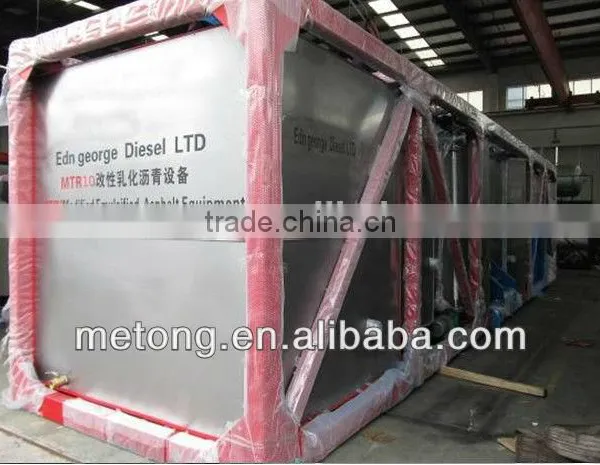

3.Product Photos.
