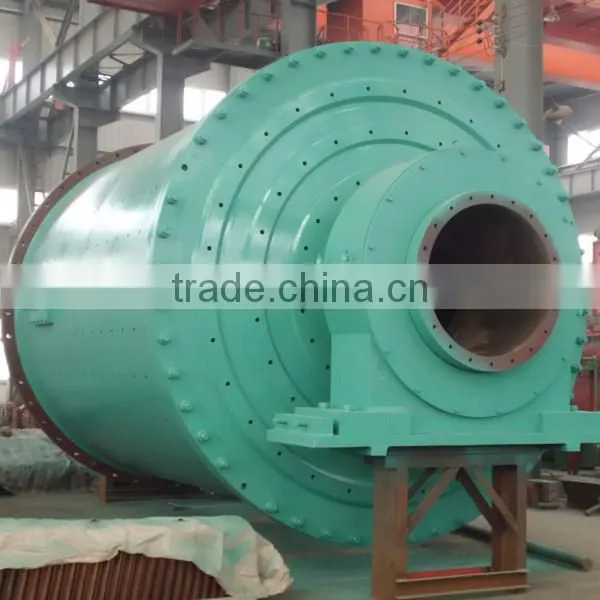

Steel Slag Dry Ball Mill With Dust Collector

Steel slag dry ball mill with dust collector   :

 slag ball mill strucuture:

Slag Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on.

The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.

slag ball mill Working Principle:

The   ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

steel slag ball mill maintenance:

1.when the ball mill running,the main bearing temperature is not more than 55℃

2.All lubricate oil should be put out after the ball mill continuously running one month,clean completely,replace new oil.and change oil every 6 months

3.Check the every lubrication point and oil surface hegith every 4 hours.

4.When the ball mill normally running,the driving bearing and the gearbox temperature is not more than 55℃,the hihest not more than 60℃

5.Every connection fastening parts no loose,joint surface is no oil leakage,no water leakage,ore leakage.

6.Girth gear gear face can be used sequentially with another side if one side is severe wear.

7.The liner bolts should be replaced if cause the liner loose.

8.The ball mill grid plate should be replaced if severe wear.

9.The ball mill liner should be replaced if 70% wear or have 70mm crack.

10.If find abnormal conditions,should stop and maintain.

slag  ball mill spare parts:

slag ball mill main technical parameters:
