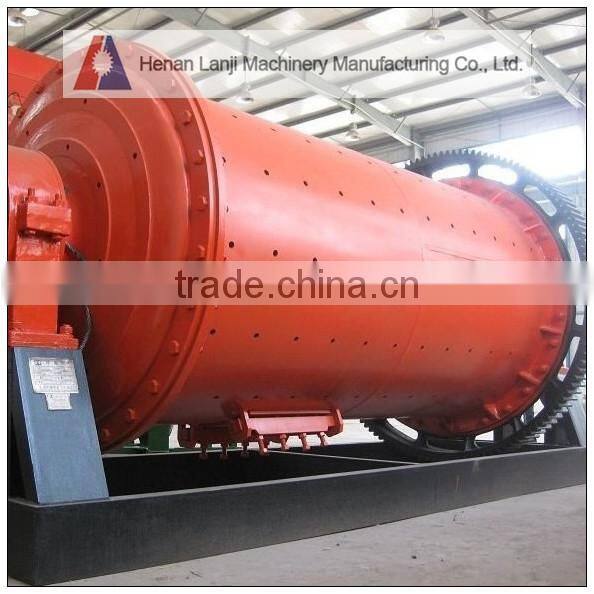

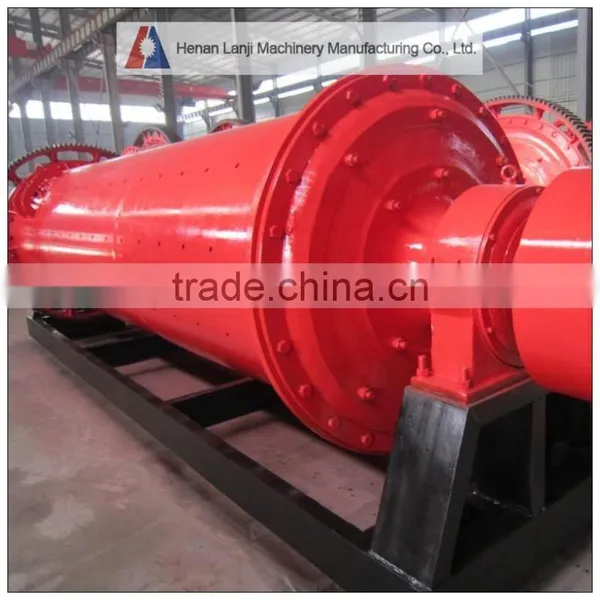

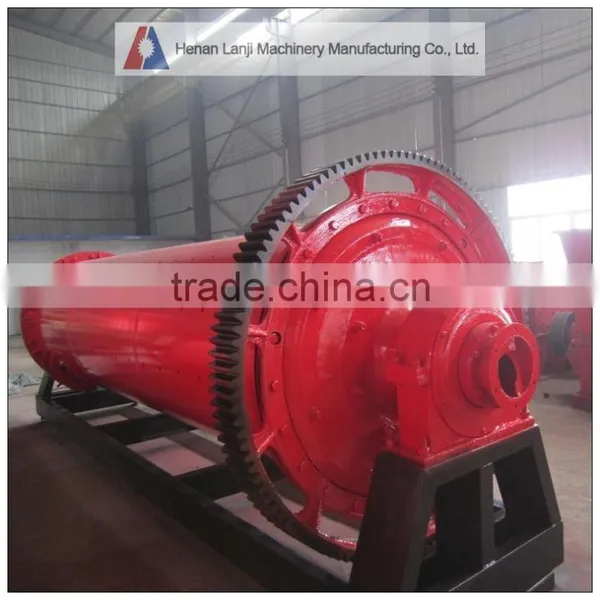

Reliable Quality Wet Type Grate Ball Mill With Competitive Price

Reliable Quality Wet Type Grate Ball Mill With Competitive Price thumbnail-1
Reliable Quality Wet Type Grate Ball Mill With Competitive Price thumbnail-2
Reliable Quality Wet Type Grate Ball Mill With Competitive Price thumbnail-3
Reliable Quality Wet Type Grate Ball Mill With Competitive Price thumbnail-4
Reliable Quality Wet Type Grate Ball Mill With Competitive Price thumbnail-5
Reliable Quality Wet Type Grate Ball Mill With Competitive Price thumbnail-6
Reliable Quality Wet Type Grate Ball Mill With Competitive Price photo-1
Reliable Quality Wet Type Grate Ball Mill With Competitive Price photo-2
Reliable Quality Wet Type Grate Ball Mill With Competitive Price photo-3
Reliable Quality Wet Type Grate Ball Mill With Competitive Price photo-4
Reliable Quality Wet Type Grate Ball Mill With Competitive Price photo-5
Reliable Quality Wet Type Grate Ball Mill With Competitive Price photo-6
US$ 5,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, grate discharge ball mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao tianjin.shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Ball Mill, grate discharge ball mill
Motor Type AC Motor
Power(W) 7.5-300 Kw
Capacity(t/h) 0.65-2
Place of Origin Henan, China
Brand Name Lanji
Model Number 900*1800
Dimension(L*W*H) 6.5*2.5*3.2 m
Weight 3-80 T
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Reliable quality wet type grate ball mill with competitive price




Product Description



1. Application:

Ball Mill is widely used in powder making production line in industries, like mining,building materials and chemistry industries.  It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.



Advantages



2. Types:

a. dry and wet types.

b. lattice and overflow types, or center-discharge and side-discharge types

c. Bearing MiII and Bushing MiII

d. edge and center types

Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.

Main Parameters





3.Technical data



Model

Drum rotary speed

(r/min)

Feeding capacity

(t)

feeding size

(mm)



Discharging size (mm)

Output (t/h)

Power (kw)

Weight (t)

Φ900×2100

38

1.5

≤15

0.075-0.89

0.5-2

15

3.9

Φ900×3000

38

2.51

≤15

0.075-0.89

0.8-3.5

22

5.0

Φ1200×2800

32

4.0

≤20

0.074-0.4

1.0-5.0

30

9.5

Φ1200×3000

32

4.5

≤20

0.074-0.4

1.2-5.6

37

11.5

Φ1200×4500

30

5.5

≤20

0.074-0.4

1.5-6.0

55

13.6

Φ1500×4500

27

11

≤25

0.074-0.4

4-10

95

21

Φ1500×5700

27

12

≤25

0.074-0.4

4-13

110

23.5

Φ1830×3000

24

12

≤25

0.074-0.4

5-15

130

31

Φ1830×3600

24

13

≤25

0.074-0.4

5-16

130

32

Φ1830×4500

24

14

≤25

0.074-0.4

5-18

155

33.5

Φ1830×7000

24

21

≤25

0.074-0.4

6-20

210

36

Φ2100×3600

24

21

≤25

0.074-0.4

7-35

215

39.5

Φ2100×4500

24

26

≤25

0.074-0.4

8-42

245

43.5

Φ2200×3000

21

28

≤25

0.074-0.4

8-43

245

46

Φ2200×4800

21

35

≤25

0.074-0.4

9-45

285

48

Φ2400×3000

21

23

≤25

0.074-0.4

8-60

285

55

Φ2700×4500

21

48

≤25

0.074-0.4

12-83

475

79

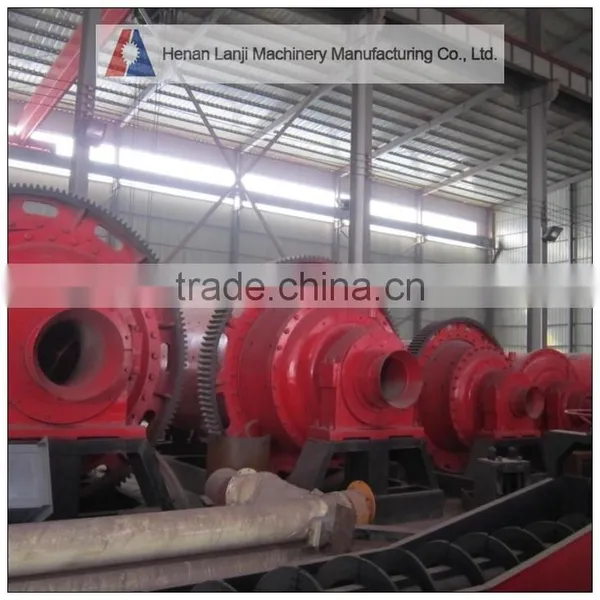

1. Factory for ball mills in stock:

Reliable quality wet type grate ball mill with competitive price

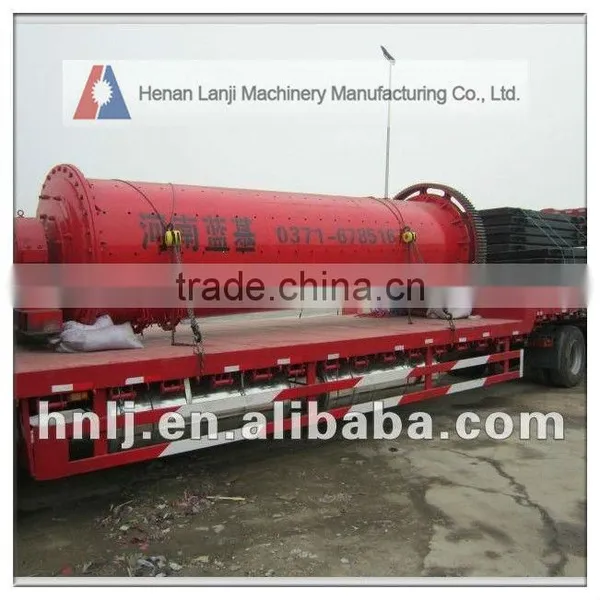

2. Delivery site:


Reliable quality wet type grate ball mill with competitive price



Certifications



3. Quality certificate:



Reliable quality wet type grate ball mill with competitive price

4. Customer visit:



Reliable quality wet type grate ball mill with competitive price



Thanks so much for you taking time to browse our grate discharge ball mill. Any further questions, please feel free to contact us and we are ready to so service for you!

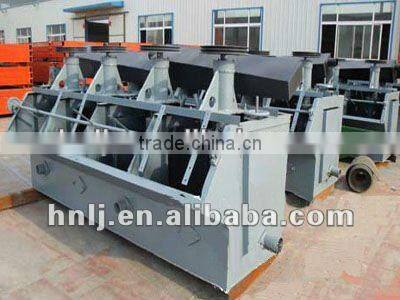

Related Equipment
