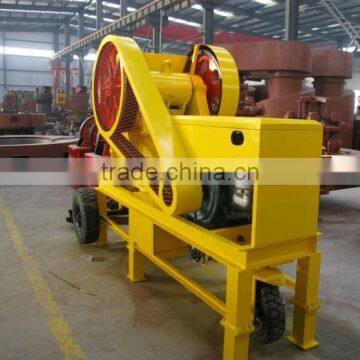

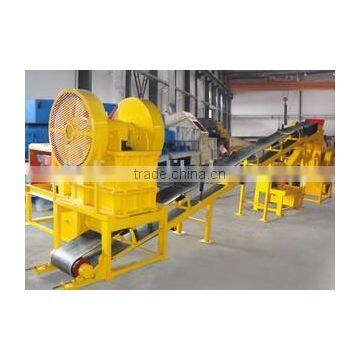

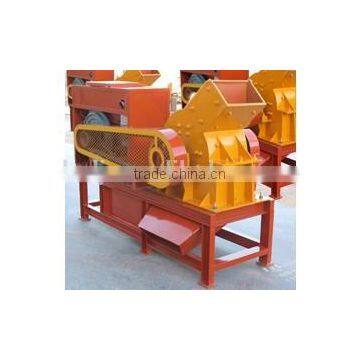

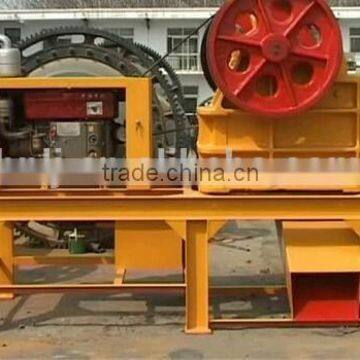

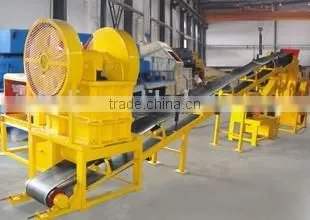

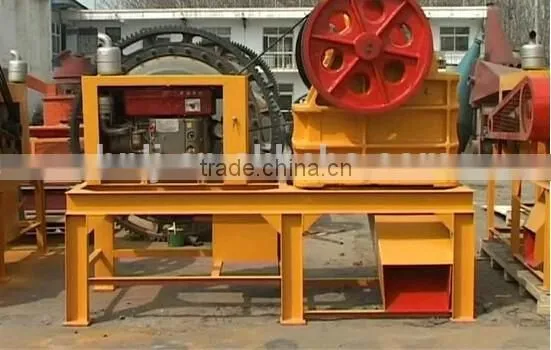

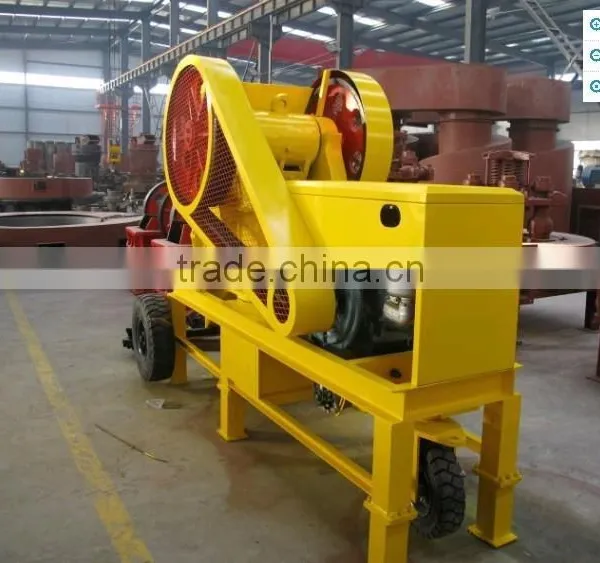

Portable jaw crusher PE200*300

Portable jaw crusher PE200*300 :

Here are some of the advantages of the jaw crushers we offer:

Complete and ready to run including crusher, belts, motor, guards, and base

Oversized bearings and castings, robust construction, manganese steel jaw plates

High reduction ratios of up to 10:1

Low energy consumption

Available with gasoline, diesel, or 3 phase electric motors

Jaw crushers are a primary crusher used in mining, construction, and demolition recycling. Jaw crushers are the work horse of the crushing industry.

Portable jaw crusher application:

Diesel engine hammer crusher is portable and powered by diesel engine,which is mainly used for crushing barite ,limestone, coal, terrazzo,silica sand stone,coke and gypsum etc.Diesel engine hammer crusher is widely applied in places that don't have enough electricity or without electricity. Diesel engine hammer crusher is adopted as medium and fine crushing equipment for mining , building,chemical,metallurgy and construction.

Characteristics of Small Diesel Engine Portable Jaw Crusher:

1. It has three tyres in the bottom, easy to move and operate, no need to install it to the ground;

2. Large crushing ratio, uniform particle size products;

3. Pad-style nesting population adjustment devices, and ease of adjustment range, and increase the flexibility of the equipment;

4. Safe and reliable lubrication system, convenient replacement parts, small maintenance workload;

5. Structure is simple, reliable; low operating costs.

6. Energy-saving equipment: stand-alone energy-saving 15% ~ 30%; energy saving of the system is more than doubled;

7. The discharging size of jaw crusher can be adjusted to meet the requirements of different users;

8. Low noise and less dust.

Working Principle of Small Diesel Engine Portable  Jaw Crusher

The diesel engine transmits power through belt and belt pulley, drives the swing jaw surround the eccentric shaft do periodiction. The angle between toggle plate and swing jaw increases when swing jaw moves up, which makes the moving jaw get closes to the fixed jaw. At the same time the material is squeezed, rubbing, grinding and other multiple broken. The angle of Jaw Crusher between toggle plate and swing jaw decreases when swing jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
