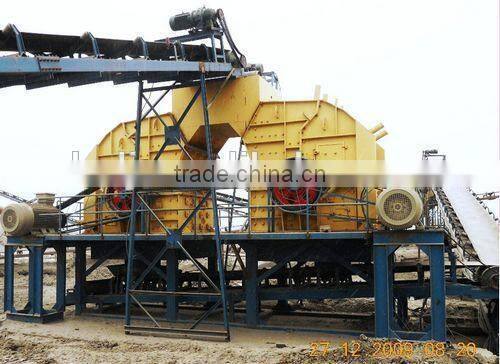

Secondary counterattack stone crusher :
Impact Crusher is a new type of high efficiency crushing equipment, its features are: simple structure products have even broken than big production capacity and selective crushing effect
Impact crusher/counterattack crusher features:
1. Big feeding opening, high crushing cavity, suitable for materials with high hardness, large block, and few stone powers.
2. The gap between impact plate and blow bar can be adjusted, effectively controlling the material size discharged, with good particle shape.
3. Compact structure, strong rigidity of machine, the rotor has a large rotational inertia
4. High-chromium blow bar has large impact, wear resistance.
5. The complete function of crushing, high productivity, small mechanical wear, and high comprehensive benefits.
6. No key connection, maintenance is convenient, economical and reliable
PF series impact crusher/counterattack crusher application;
The PF series Impact Crusher is new-type high efficient crushing equipment. It is a kind of new product that adopts the latest manufacturing technology, unique structural design, combining the Industrial and mining conditions of sandstone industry. This Series equipment can crush all kinds of coarse, mid, and fine material which maximum feed size is less than 500mm, compression strength is not more than 350 Mpa (like: granite, limestone, concrete etc.) with the characteristics of small volume, cubic final product, simple structure, and large ratio of reduction (up to 40), low energy consumption, large productive capacity, even product size. The Impact Crusher is widely used in the field of ore crushing, railway, highway, energy, cement, chemicals, and construction etc. The material size discharged is adjustable, with diversified crushing specification.
Quartz counterattack crusher working principle;

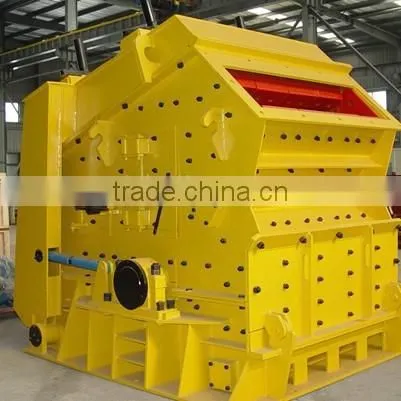

Impact crusher mainly consists of rotor, impact plate, main shaft, blow bar, impact rack, etc. During operation the raw material will be crushed three times,the first time is crushed by rotor rack with high speed-moving of rotor and material will be through to impact plate,then material will be crushed through the impact force by impact plate,the last crushing force is the squeeze between material when material is flow down to blow bar. This process is repeated only when the material is crushed as required. The size and shape of finished material can be controlled by adjusted the gap between the impact plate and rotor.
Quartz impact crusher main technical parameters:
Model |
Feed Opening |
Max. Feed Size |
Capacity |
Motor Power |
Weight |
Dimensions |
PF-1007 |
820×700 |
300 |
24-45 |
55 |
9.5 |
2400×1558×2660 |
PF-1010 |
1170×720 |
350 |
50-80 |
75 |
10 |
2532×1985×2196 |
PF-1210 |
1090×465 |
350 |
80-130 |
110 |
14 |
2638×2037×2713 |
PF-1214 |
1440×465 |
350 |
100-160 |
132 |
18 |
2580×2400×2810 |
PF-1315 |
1532×560 |
350 |
140-200 |
200 |
19.3 |
2840×2748×2556 |
PF-1316 |
1690×859 |
350 |
150-220 |
200 |
19.5 |
3096×2850×2667 |
PF-1516 |
1840×859 |
350 |
300-350 |
250 |
24.5 |
3700×3500×7280 |
PF-1814 |
1930×580 |
350 |
350-400 |
132×2 |
32 |
2816×2902×3062 |
PF-2016 |
2100×895 |
350 |
150-220 |
200×2 |
40 |
3452×3021×3937 |
1..Installation: The seller provide all drawings for installation, engineers available to service machinery overseas.
2.After sale service: 1year guarantee.
contact details:
Nora
Henan Lanji Machinery Manufacturing Co., Ltd.
1.Mobile phone(whatsapp): 0086-13783471727
2.Telephone: 0086-371-67833678
3.Skype:sarapang6
