Mining hammer crusher for mineral ore :
Feed Size:15-400mm
Capacity:2-300t/h
Raw materials:Medium hardness and brittle materials such as limestone, coal, salt, white Asian, gypsum, alum, brick, tile, coal gangue and etc.
Application:Primary and secondary crushing of different types of material in almost all industrial sectors.
Feed Size:15-400mm
Capacity:2-300t/h
Raw materials:Medium hardness and brittle materials such as limestone, coal, salt, white Asian, gypsum, alum, brick, tile, coal gangue and etc.
Application:Primary and secondary crushing of different types of material in almost all industrial sectors.
Hammer Crusher usually applied to primary and secondary crushing of different types of material in almost all industrial sectors. Hammer Crusher are suitable for crushing of medium hardness and brittle materials such as limestone, coal, salt, white Asian, gypsum, alum, brick, tile, coal gangue and etc. Hammer crusher can break the material which compressive strength not more than 150 Mpa, humidity less than 15%.
Advantages of the Mining Hammer Crusher:
1. High and constant capacity
2. High machine availability and Long lifetime
3. Easy replacement of wear and spare parts
4. Broad range of applications
5. Low space requirement
Working principle of the Mining Hammer Crusher:

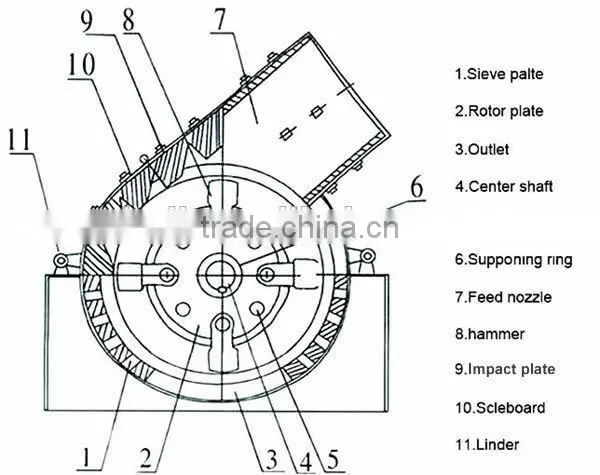

The main working part of hammer crusher is rotors with hammer. The rotors consist of main shaft, disk, pin shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size.
Mining Hammer Crusher Main Specifications:
| Specification | Feeding size(mm) | Discharging size(mm) | Output(t/h) | Power(kw) | Weight(kg) |
| PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 800 |
| PC600×400 | ≤120 | ≤15 | 10-25 | 18.5 | 1500 |
| PC800×600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
| PC1000×800 | ≤200 | ≤13 | 20-40 | 115 | 7900 |
| PC1000×1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
| PC1300×1200 | ≤250 | ≤19 | 80-200 | 240 | 13600 |
