Rock jaw crusher:
Input Size: 200-1200mm
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.
Applications:
Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

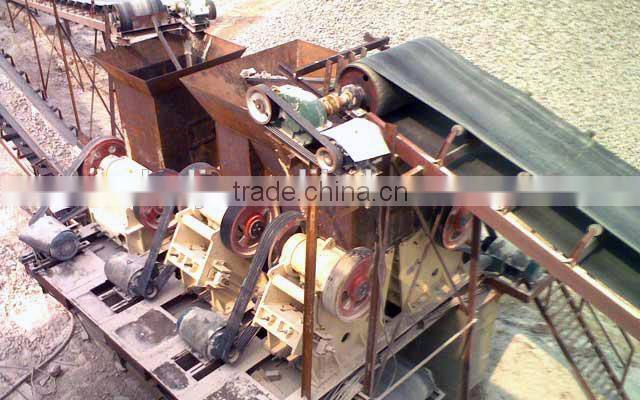

Mining equipment rock jaw crusher :
Our company provides jaw crushers with different sizes. The fixed jaw plate, swing jaw plate and guard plate at both sides are made of wear-resistant high manganese steel with good wear resistance. It adopts optimized moving path design so as to reduce excessive wearing on material and toothed plate and increase service life of wear-resistant parts. The compressive resistance shall not exceed 320MPa. Maximum material granularity is up to 1200mm.

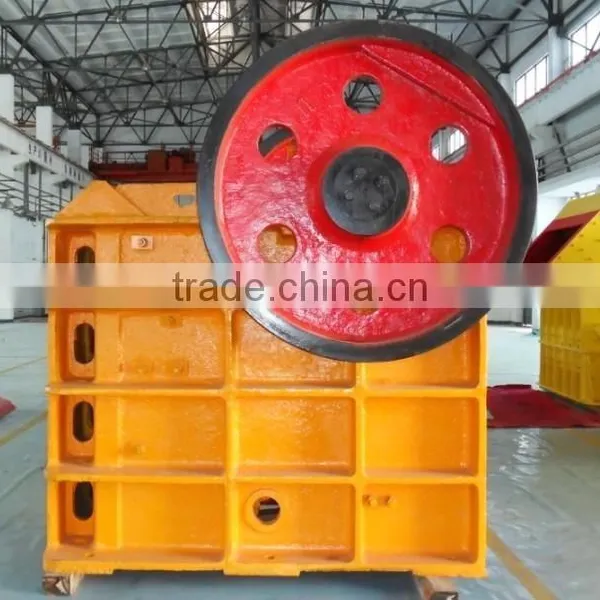

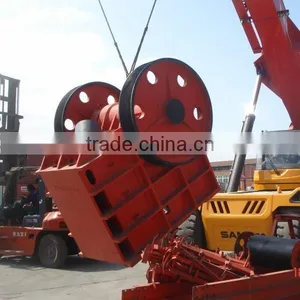

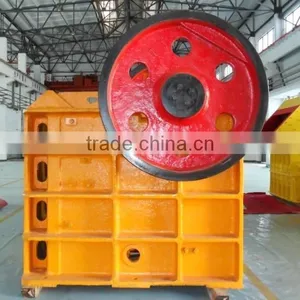

Rock jaw crusher introduction:
Rock jaw Crusher is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metallurgical industry, building material, highway, railway and chemical industry.rock jaw cursher has primary PE aw crusher and PEX secondary jaw crusher.
Rock jaw crusher working principle:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
Rock jaw crusher structure:
Rock jaw crusher main spare parts:
Rock jaw crusher main technical parameters:
| Model | Feed opening size(mm) | Max feed Size (mm) | Adjustment range of outlet (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Overall dimension (L×W×H) (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720×660×850 |
| PE-250×400 | 400×250 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 600×400 | 340 | 40-100 | 16-60 | 30 | 7 | 1730× 1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-80 | 55 | 12.5 | 1980×2080×1870 |
| PE-600×900 | 900×600 | 500 | 65-140 | 50-150 | 75 | 17 | 2190×2206×2300 |
| PE-750×1060 | 1060×750 | 630 | 80-160 | 110-260 | 90 | 30 | 2660×2430×2800 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 220-550 | 110 | 54 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1100 | 220-350 | 450-900 | 355 | 123 | 5300×4700×4300 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 5-20 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 30 | 5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-50 | 37 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-65 | 37 | 8 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 20-90 | 55 | 12 | 2720×1950×1600 |
Rock jaw crusher features:
1. The cavity of the stone/rock jaw crushers is deep and with no dead area, to promote feeding capacity and output.
2. The size of the reduction ratio is big and the production size is even.
3. Adjustment device of the spacer style discharge mouth is convenient and reliable. And primary jaw crusher's adjustment range is big, which improves the flexibility of equipment.
4. Lubrication system of jaw crusher is safe and reliable. Unit replacement is convenient. And the work of maintenance is small.
5. Its structure is simple and operation is reliable. The operation charge is low.
6. Energy conservation: single machine's energy conservation is and the machine system energy conservation is more than twice of the single machine.
7. The adjustment range of the outlet is big, so it can satisfy the requirement of different customers.
8. The noise of China jaw crusher is low and dust is little when primary crushers work.
