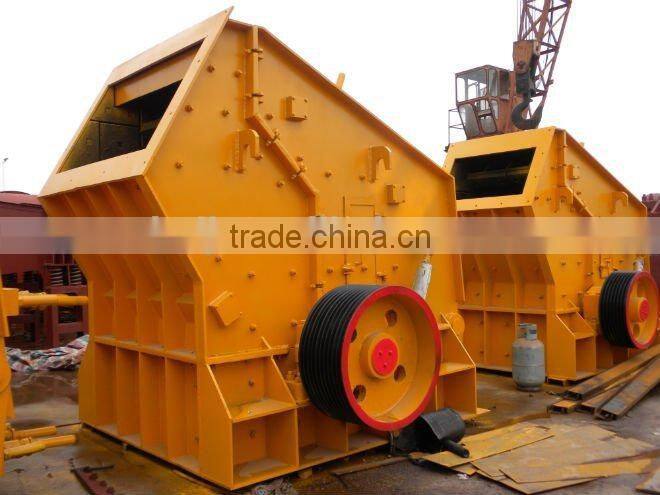

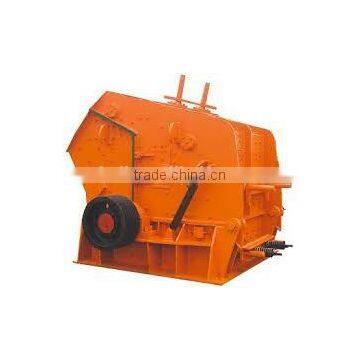

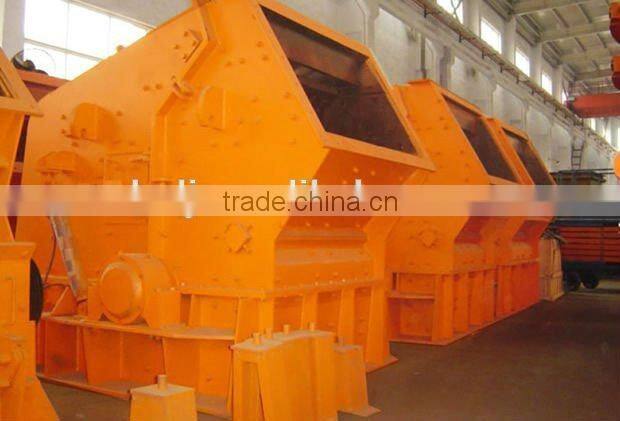

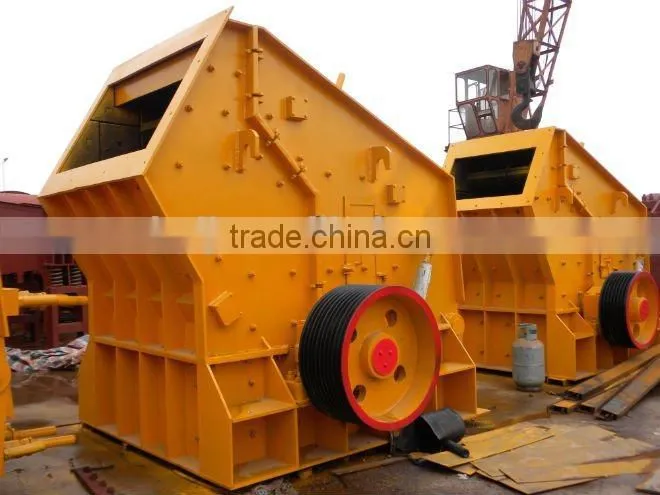

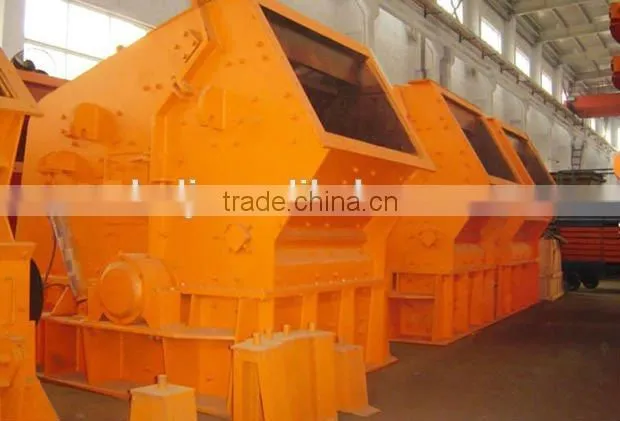

Rock Impact Crusher Machne PF1214 for Mineral Ore

Rock/Quarry /Mineral Ore impact crusher PF1210:

Type:Secondary Rock Ore Crushing Machine

Input Size:400mm--1520mm

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway

Capacity:30-250TPH

Application of the rock  impact crusher :

Impact crusher can process granite,basalt,limestone,etc,which the granularity is not bigger than 120-300mm and crushing compression strength is not more than 320mp. It is used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and demolition debris. This cube shaped fineness product is the first-class device used in high grade road surface,railway,water conservancy and electricity industry.

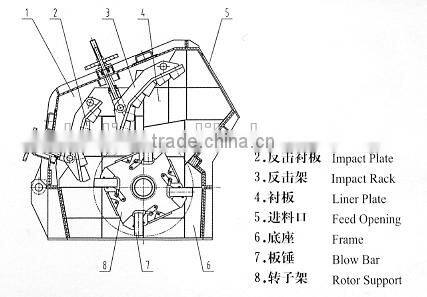

Working Principle of the impact crusher:

Impact crusher crushes material by striking energy. When it works, the motor drives the rotor to rotate at a high speed, on which the blow bar is installed. As soon as the material gets into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact racks and the rotor can be adjusted to change the size and shape of the end products.

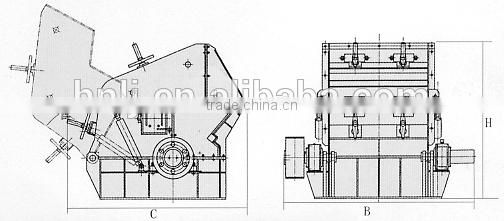

Specification of the rock impact crusher:
