High Intensity Magnetic Head Pulleys for Belt Conveyor

High Intensity Magnetic Head Pulleys for Belt Conveyor thumbnail-1
High Intensity Magnetic Head Pulleys for Belt Conveyor photo-1
US$ 6,600 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Magnetic Separator, Magnetic Separator
Production Capacity:
90%
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Magnetic Separator, Magnetic Separator
Production Capacity 90%
Place of Origin Henan, China
Brand Name Lanji
Model Number CTG
Voltage Request
Power(W) 1.5kw
Dimension(L*W*H) 650*800*3000 Mm
Weight 750kg
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

High intensity dry magnetic head pulley/magnetic separator for belt conveyor  :

Dry magnetic head pulley/magnetic separator Introduction



A dry magnetic separator for strong magnetic minerals with coarse particles, and it is also called magnetic pulley.



Capacity:20-600t/h. apparatus magnetic equipment for magnetite ore, mainly used for pre concentration before fine crushing or grinding to remove the gangue, deads and tailings, and the tailings out rate is about 10%.

Dry magnetic head pulley advantages:

Large feeding particle size(450~0mm),no classification before feeding.

High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of harsh environment.

Dry magnetic head pulley working principle:

The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.

Dry magnetic head pulley/magnetic separator main technical parameters:



Model ID
(mm)		 Length
(mm)		 Belt width
(mm)		 Average field strength of cylinder surface(mT) Allowable torque
(N.m)		 Materials
Particle size (mm)		 Capacity
(t/h)		 Weight
(kg)
CT-0404 410 465 400 150-160 1300 10-40 20-30 250
CT-0505 520 500 400 150 1300 10-40 20-40 500
CT-0506 520 600 500 150 2100 10-40 40-60 600
CT-0507 520 750 650 150 2120 10-40 60-80 700
CT-0707 750 750 650 >160 2860 10-60 80-100 1200
CT-0709 750 950 800 >160 5500 10-60 100 1620
CT-0816 800 1600 1400 >160 9760 10-60 1OO-150 2850
CT-1010 1000 970 800 200-210 5590 10- 100 150-200 3410
CT-1012 1000 1170 1000 >200 10680 ≤100 200 4010
CT-1014 1000 1400 1200 >200 12810 ≤100 200 4600
CT-l0l6 1000 1600 1400 160-210 14920 10-100 150-200 5200
CT-12l0 1200 970 800 160-210 8380 10-100 150-200 4380
CT-1212 1200 1170 1000 >160 10470 ≤100 200 5280
CT-1214 1200 1400 1200 >160 12570 ≤100 200 6070
CT-1216 1200 1600 1400 >160 14580 ≤100 200 6670
CT-1218 1200 1800 1600 >160 16620 ≤100 200 7260
CT-1412 1400 1200 1000 >160 16000 ≤l20 200 6000
CT-1414 1400 1400 1200 >160 20000 ≤l20 200 7100
CT-1416 1400 1600 1400 400 25000 ~400 300 9800
CT-1518 1500 1800 1600 ≥450 30000 ~400 600 1400

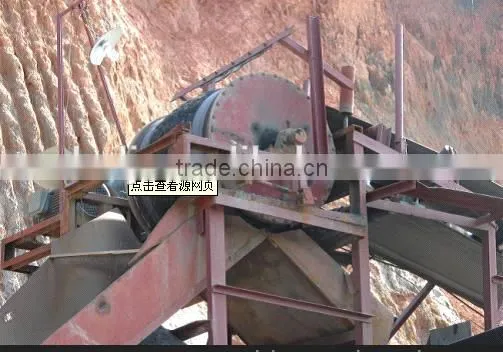

High intensity Magnetic Head Pulleys for belt conveyor
