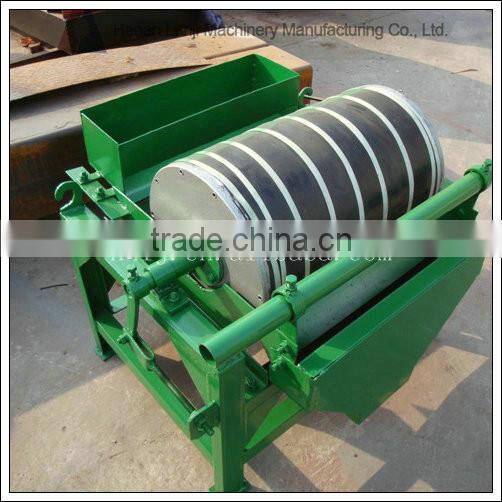

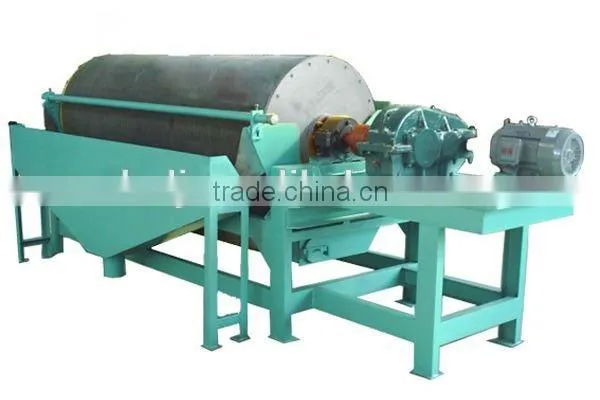

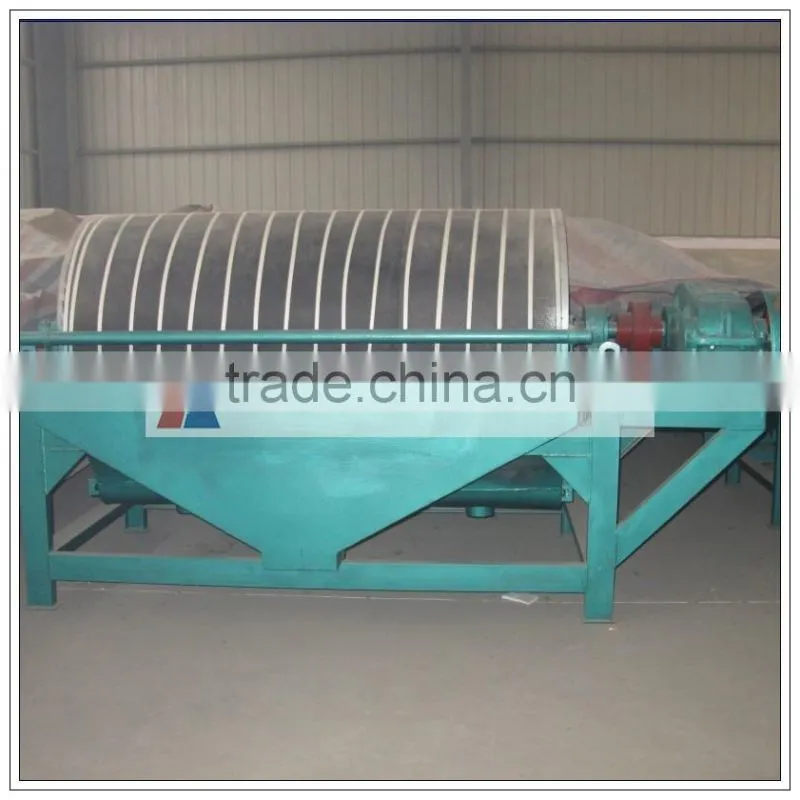

Permanent High Magnetic Wet Drum Magnetic Separator Semi-counter Current Type

Permanent high magnetic wet drum magnetic separator semi-counter current type :

Wet  magnetic separator application:

This type of magnetic separator is used to separate the strong magnetic materials .the capacity can be 24-240t/h.

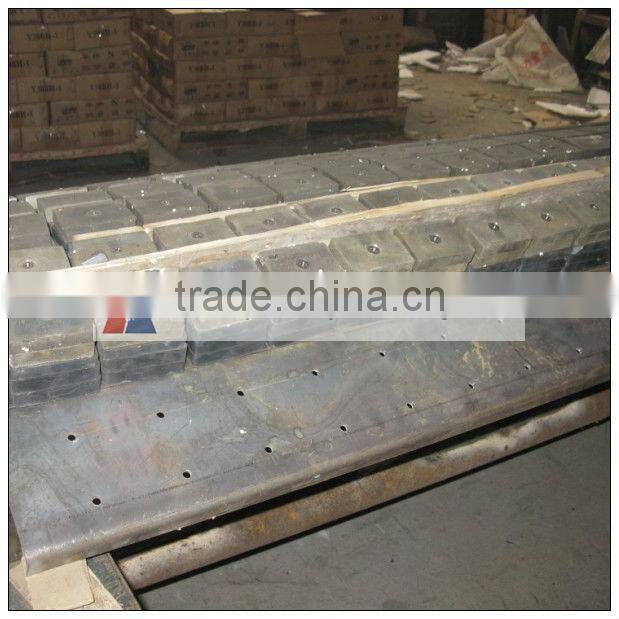

The magnetic system adopt high performance,Magnetic system materials adopt ferrite and NdFeB with high performance, high coercive force and high remanence; the surface of the cylinder is lined with wear-resistant rubber.

Wet  magnetic separator features:

1.It is high efficiency new wet magnetic separator.

2.The magnetic system adopt high magnetic energy product,high coercive force NdFeB materials,it is high magnetic intensity,the work depth is big, the magnetic intensity demagnetization rate is less than 5%

3.It has smooth transition large angle magnetic system,increase separation length and magnetic turn number, to achieve the magnetic materials and non-magnetic (weak) materials high efficiency separation.

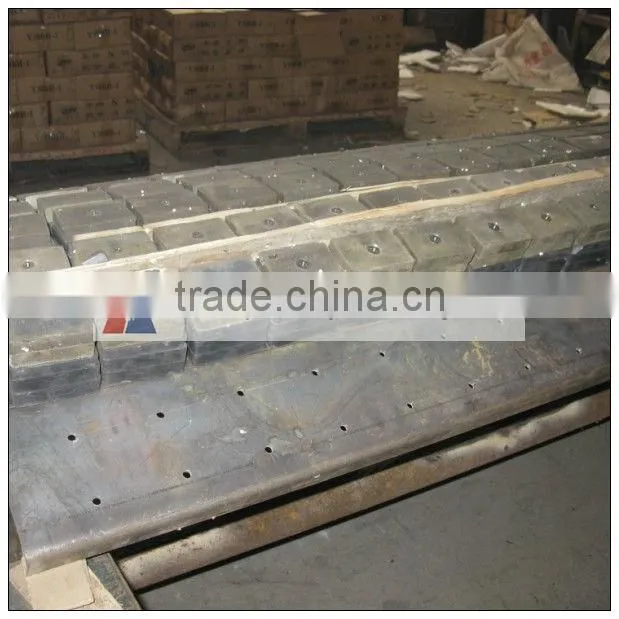

4.Magnetic system package and paste is non-conductive magnet stainless steel,ensure the magnet not fall off.

5.to the different usage and separating conditions,the different series magnetic separator has different magnetic system design and trough structure.

6.The trough structure is semi-current ,also can make current trough according to the customer’s requirements.

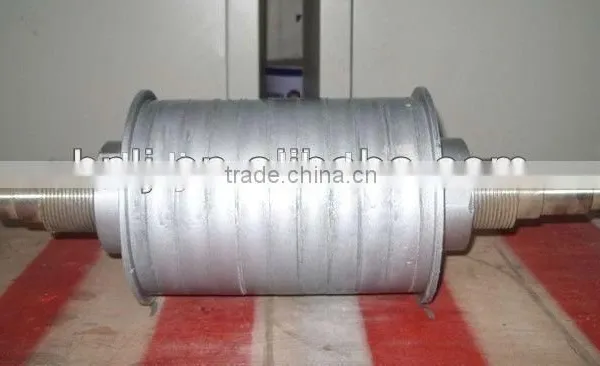

7.cylinder adopt non-conductive stainless and packed by wear resistant rubber,the cylinder using life has been improved dramaticlly.

8.High adaptive capacity,can bear bigger feeding quantity wave,feeding size and ore pulp density wave

9. reasonable design,reliable running,easy maintenance.

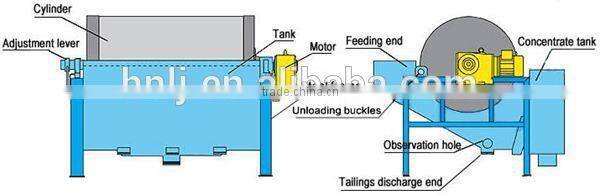

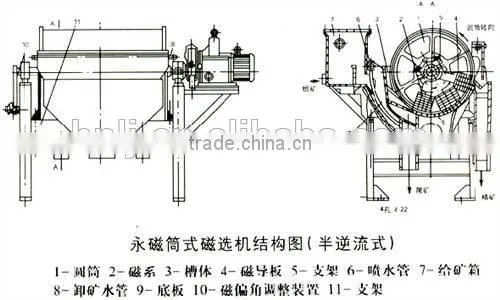

Wet magnetic separator structure drawing(Semi-counter current type CTB series):

1.drum 2. magnetic system  3.trough body  4.magnetic guide  5.bracket 6. spray water pipe 7.feeding ore box 8. discharging water pipe, 9 bottom plate 10.  magnetic declination adjust device 11.bracket

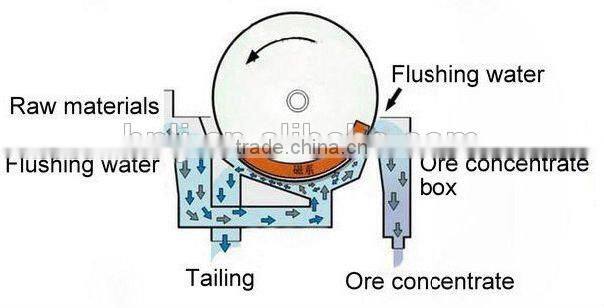

The semi -counter current wet magnetic separator : the ore pupl feeding direction is half reverse ,half is the same, it is different with the concurrent type is the ore pulp is turn a circule in the trough, because the ore pulp is washed to loose status,can prevent mixed,and the ore pulo movement direction is the same with magnetic force ,it is favour of recover 0.5-0 mm strong magnetic materials coarse separation,scavenging,cleaning, improve the recovery rate and grade, the ore pulp surface is stable,so it is stable separation,widely used .

Wet magnetic separator main technical parameters( CTB Semi-counter current type):
