Specifications
Limestone Powder Vertical Roller Mill in Construction Equipment
1. Good output powder quality.
2. High performance rate.
3. Stable running, low maintenance.

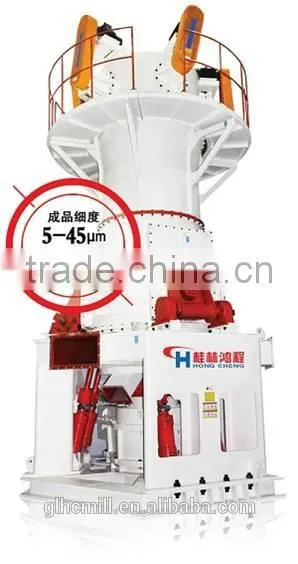

Limestone Powder Vertical Roller Mill in Construction Equipment
With two decades of R&D and introduction of foreign advanced technology, the HLM vertical mill comes into being, featuring in a combination of drying, grinding, classifying and conveying.
HongCheng HLM vertical mill has the following advantages: efficient grinding, lower power consumption, larger feeding size, adjustable fineness, simple process flow, space-saving, lower noise, no air pollution, easy maintenance, lower operation cost, longer working life of wearing parts etc.. HLM vertical mill is widely used in power, metallurgical, cement, chemical and non-metallic industry, such as cement raw material, clinker, limestone, slag, manganese, gypsum, coal, barite, calcite etc.
The centrifugal force generated by the rotating table driven by the reducer make the raw material goes between the roller and grinding table. The raw material is ground at the force of crushing, grinding and shearing. The air flow from the fan makes the pulverized powder goes up. Through the classifier, the coarse powder falls down onto the table for regrinding and the qualified finer with the air flow goes into the pulse-jet collector. The finer powder is collected in the pulse-jet collector. And the clean air goes out from the pulse jet collector.
* Please contact us for help if you meet problem to the following technical datas.
HLM Vertical Mill Models and Technical Data(For Cement Raw Meal -Limestone) | |||||||||
Model |
HLM30/2 |
HLM34/3 |
HLM42/4 |
HLM44/4 |
HLM50/4 |
HLM53/4 |
HLM56/4 |
HLM60/4 |
HLM65/6 |
Grinding table median diameter(mm) |
2500 |
2800 |
3400 |
3700 |
4200 |
4500 |
4800 |
5100 |
5600 |
Capacity(T/H) |
85-100 |
130-160 |
190-240 |
240-300 |
320-400 |
400-500 |
440-550 |
550-670 |
600-730 |
Raw Material Moisture |
≤10% |
||||||||
Raw Meal Fineness |
R0.08≤12% |
R0.08≤14% |
|||||||
Raw Meal Moisture |
≤1% |
||||||||
Power(KW) |
800/900 |
1120/1250 |
1800/2000 |
2500/2800 |
3150/3350 |
3800/4200 |
4200/4500 |
5000/5400 |
5600/6000 |
Note: Raw Materials bond index≤13kWh/t |
|||||||||
HLM Vertical Mill Models and Technical Data(For cement clinker) | |||||||||
Model |
HLM24/2P |
HLM30/2C |
HLM34/3C |
HLM35/3P |
HLM42/4P |
HLM44/4P |
HLM45/4P |
HLM53/4P |
HLM56/4P |
Grinding table median diameter(mm) |
1900 |
2500 |
2800 |
2800 |
3400 |
3700 |
3700 |
4500 |
4800 |
Capacity(T/H) |
35-45 |
60-75 |
90-110 |
130-160 |
160-200 |
190-240 |
240-300 |
300-380 |
330-420 |
Raw Material Moisture |
≤2% |
||||||||
Powder Rate of Specific Surface Area |
220-260m2/kg(R0.08≤15%) |
||||||||
Powder Moisture |
≤1% |
||||||||
Power(KW) |
560 |
900 |
1400 |
2000 |
2500 |
3000 |
3800 |
4800 |
5300 |
Note: Raw Materials bond index≤18kWh/t |
|||||||||
1. Higher Efficiency:
- Higher grinding efficiency, lower power consumption (40%-50% less than ball mill);
- Higher production capacity, off-peak power can be used.
2. Easy Maintenance and Lower Operation Cost:
- The roller can be pulled out by the hydraulic device, which is convenient for plate-replacement and bigger maintenance space.
- Left and right side of the roller cover can both be used for prolonging the working life.
- Without raw material on the grinding table, the mill can run, which erases the difficulty in starting.
- The roller and grinding table are made from special material for longer working life.
3. Lower Investment:

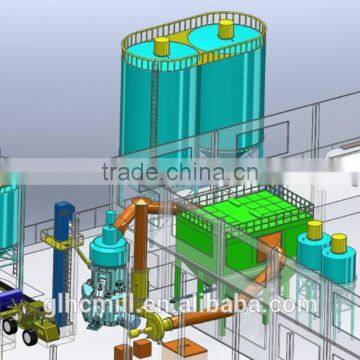

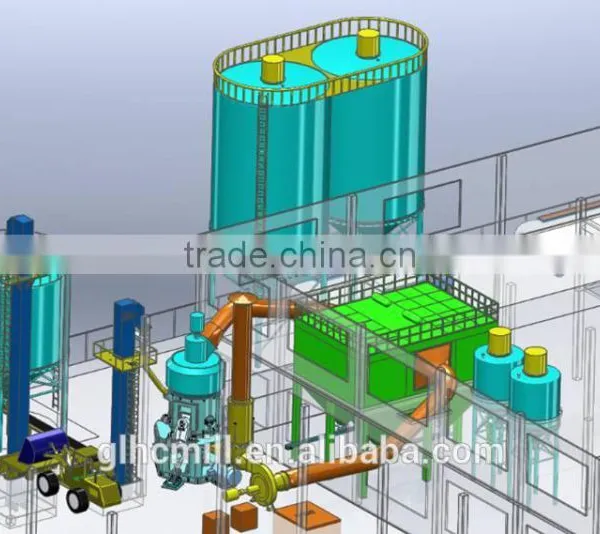

- Combination of crushing, drying, grinding and conveying, simple process flow, reasonable and compact layout, space-saving (50% less than ball mill), lower foundation cost and workshop cost in the field.
4. Stable Powder Quality:
- Short-time stay of the raw material in the mill, which is easy for the powder fineness and components analysis.
- Regular powder shape, narrow size fineness, easy fluidity, extensive application.
5. Reliability:
- Roller with height-controlled device, which could avoid strong vibration called by the lack of material on the table.
- Newly-designed roller sealing component ensures the reliable sealing without sealing the fan, which can lower the oxygen content in the mill to prevent the possibility of explosion.
6. Environment-friendly:
- Lower vibration and noise
- Perfect sealing and negative pressure guarantees no air pollution in the workshop.
- Vertical mill is the better equipment to lower power consumption in the mill industry, which is also what the country advocate and a must to increase the enterprise competitiveness in China powder industry.
7. High Automatic Level: PLC automatic control system, remote control, easy operation and maintenance, lower labor cost.

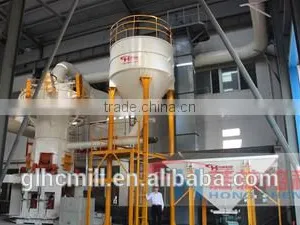

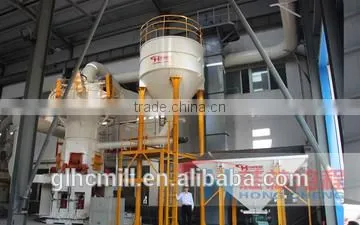

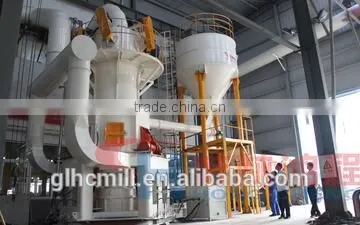

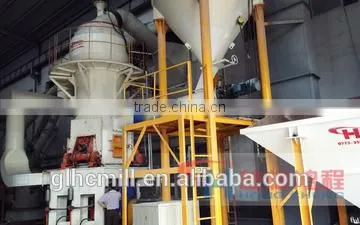

Project name: Guizhou technical company
Machines: HLM1300 vertical mill and HLM2400 vertical mill
Customer feedback: This time we have a very happy cooperation with Guilin Hongcheng. We are very satisfied to the product and service of Guilin Hongcheng. This is an extraordinary and famous enterprise from our purchasing to now of installation and commissioning. They elaborately arrange every step for us, not only the sales representative but also the technician team, everyone keeps in close touch with us. It makes us strong feel the cordial support from Guilin Hongcheng. As their oath said: we are not manufacturing and selling machines, but more importantly to create value for customers. They do as what they said.
Our service
‘Survival Rests on Quality, Service is the Source of Development’ is what we consistently live up to. Customer’s satisfaction is the momentum and foundation of our innovations. The high operation efficiency of the machines lies on the technical support of presales, technical service and after sales. Hongcheng has rich experienced, high technology service team with extensive sales-service network to provide our customers the most enthusiasm service and strong technical support worldwide.
Why choose us?
Guilin Hongcheng Mining Equipment Manufacture Co., Ltd is one of the leading suppliers for powder processing equipments and integrated powder making solutions in China. Depending on the R D experience for decades, Guilin Hongcheng is able to offer high quality, high capacity, high efficiency, low pollution of powder processing machines for all of our customers. At present, Guilin Hongcheng is entitled to a high fame in powder processing industry. Our vision is to establish a global brand for China. Because quality is our culture, the equipments and service of Guilin Hongcheng have been spread to Vietnam, Laos, Malaysia, Indonesia, Sultan, South African, Russia, Philippines, and Thailand and will be in your enterprise.
Contact us
If you are interested in our equipment, please tell us the information below so we can offer you a whole set of solution:
- The input material size and moisture.
- The output fineness size.
- The capacity per hour.
- Your contact information (phone number, e-mail address or both).
Please contact us with the following table, thank you!
↓↓↓
