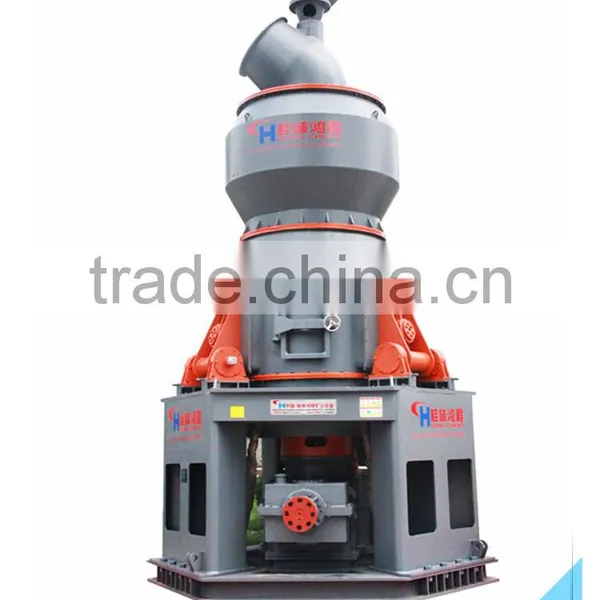

HongCheng Professional Cement Cinker Grinding Plant Machine
The Introduction of HongCheng Professional Cement Cinker Grinding Plant Machine
HongCheng vertical mill provide a better and efficient way to achieve high production capacity of mineral powder( From 20T/H200/H). HongCheng is the R&D and production base of Grinding Mill in China, which devote her time to grinding mill.
A great number of case plants in China can prove everything and make everything clear. HongCheng vertical mill adopts reliable
structure and reasonable processing flow including the drying, milling, classifying, elevator. At the same time, the production capacity is very high with the lowest power consumption.
Application of HongCheng Professional Cement Cinker Grinding Plant Machine
With scientific, reasonable design and the competitive advantages items, HLM vertical mills are applied widely in different fields for grinding of various materials.
1. Wide humidity range of materials: from 20-30% humidity (such as carbide, lignite, chalk, etc) to materials of humidity less than 1% (such as cement clinker), adaptable to wide range of material humidity.
2. Grindability of materials: from high grindability (such as quartz sand, steel slag, mining slag , pyrophyllite, iron ore ) to low grindability (such as gypsum, calcite, etc)
3. Output fineness: from 2-5 mm (such as raw shale for making brick in new wall material industry, sand for construction industry) to 97% passing through 15um (for paper and chemical industrial of grinding ground calcium carbonate) .Product fineness is easy and simple to control.
Features of HongCheng Professional Cement Cinker Grinding Plant Machine
1. Low Operation Cost
Based on the same production capacity, the covering area of HongCheng vertical mill is about 1/2 of ball mill system, which can reduce the investment.
2. Lower Power Consumption
Compared with the ball mill, HongCheng vertical mill can save 30%--40% power.
3. Longer Working Life
The optimized roller and the high-quality raw material make the machine’s life more longer;
4. High Durability
The air temperature into the mill can be controlled, and a wide range of humidity can be dealt with easily.
The roller and the liner doesn’t contact directly, which avoids the unnecessary damage and vibration.
5. Easy Maintenance
Roller and roller sleeve can be replaced easily and fastly with specially-designed structure.
6. Environment-friendly
Pulse-jet collector can make 99.9% of the powder to be collected. There is no air pollution.
Technical data of HongCheng Professional Cement Cinker Grinding Plant Machine
HLM Vertical Mill Models and Technical Data(For slag and cement
Industry)
Model | HLM1700KZ | HLM1900KZ | HLM2200KZ | HLM2800KZ | HLM3700KZ | HLM4500KZ |
Capacity (T/H) | 10-12 | 13-15 | 22-26 | 48-55 | 90-100 | 135-150 |
Raw Material Moisture | <12% | |||||
Powder Rate of Specific Surface Area
| ≥420m2/kg | |||||
Powder Moisture | <1% | |||||
(kw) Power(kw) | 400 | 500 | 800 | 1800 | 3150 | 4500 |
HLM Vertical Mill Models and Technical Data(For Manganese Industry)
Model | HLM1700MK | HLM2200MK | HLM2400MK | HLM2800MK | HLM3400MK |
Capacity(T/H) | 20-25 | 35-42 | 42-52 | 70-82 | 100-120 |
Raw Material Moisture | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
Fineness | 100 Mesh (150μm) D90% | ||||
Powder Moisture | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% |
Power(KW) | 400 | 630/710 | 710/800 | 1120/1250 | 1800/2000 |
HLM Vertical Mill Models and Technical Data(For coal and metallurgical Industry)
Model | HLM1300MF | HLM1500MF | HLM1700MF | HLM1900MF | HLM2200MF | HLM2400MF | HLM2800MF |
Capacity (T/H) | 13-17 | 18-22 | 22-30 | 30-40 | 40-50 | 50-70 | 70-100 |
Raw Material Moisture | ≤15% | ||||||
Fineness | 200 mesh (75μm) D80% | ||||||
Powder Moisture | ≤1% | ||||||
Power(KW) | 160 | 250 | 315 | 400 | 500 | 630 | 800 |
Note:HGI≥55
HLM Vertical Mill Models and Technical Data(For desulfurization
Industry)
Model | HLM1300XF | HLM1500XF | HLM1700XF | HLM1900XF | HLM2400XF | HLM2800XF |
Capacity (T/H) | 9-13 | 13-18 | 20-25 | 26-32 | 36-42 | 56-70 |
Raw Material Moisture | ≤5% | |||||
Fineness | 325 Mesh (44um) D90% | |||||
Power(KW) | 200 | 280 | 355 | 500 | 630 | 1120 |
Note: The above-mentioned technical data is for material with a Moh’s hardness 3-4
Limestone band work index≤13kwh/t

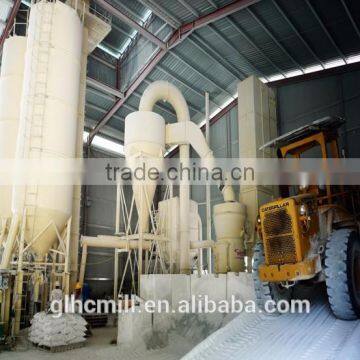

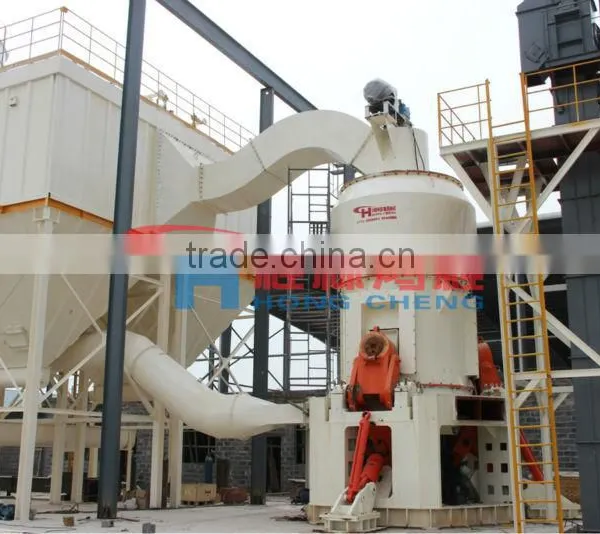

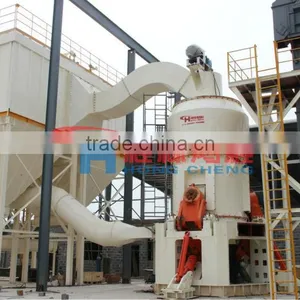

The Case Plants of HongCheng Professional Cement Cinker Grinding Plant Machine
Why choose us?
Guilin Hongcheng Mining Equipment Manufacture Co., Ltd. is a leading enterprise of powder processing equipment in China, is a professional supplier of powder processing integrated solution. Depending on the producing and researching experiences for decades, Guilin Hongcheng is able to offer high capacity, high efficiency, low cost and low pollution powder processing equipment for all of our customers.
At present, Hongcheng is entitled to a high fame in powder processing field. Our vision is to establish a global brand for China, we are holding the principle of ‘Quality is the basement of survival, service is the source of development’. The equipment and service of Guilin Hongcheng have been spread to Vietnam, Laos, Malaysia, Indonesia, Sultan, South Africa, Russia, Philippines, and, will be in your enterprise.
Contact us
If you are interested in our equipment, please send us an e-mail with the following table. Please tell us the information below so we can offer you a whole set of solution:
- The input material size and moisture.
- The output fineness size.
- The capacity per hour.
- Your contact information (phone number, e-mail address or both).
Please contact us with the following table, thank you!
↓↓↓
