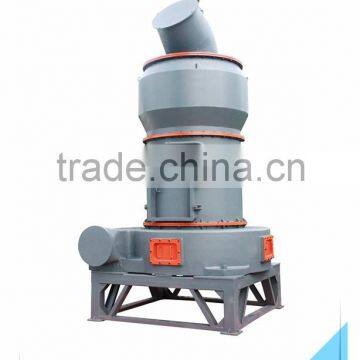

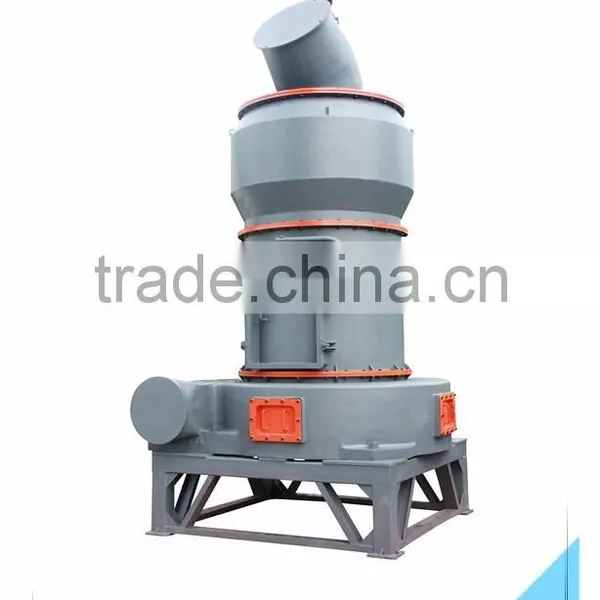

Product Introduction of HC Flyash Raymond Powder Mill Price:
HC Series Grinding Mill is a newly developed large-scale mill by Guilin Hongcheng. The equipment referenced the operating principle of pendulum mill and improved the swinging method. With out changing other parameter, the centrifugal grinding pressure increased about 35%. The contact area of roller and ring is improved, the output has 2.5 to 4 times higher than traditional Raymond mills. Applied constraint turbine classifier, production fineness can be adjusted around 0.18-0.022mm (80-600 mesh). At the same time, gearing device and roller assembly sealing are also improved to increase operational reliability and to offer an easier maintenance. HC Grinding Mill has the advantages of high capacity, high efficiency, low investment and operation cost and low pollution, it is the best choice of large-scale powder processing.
Application of HC Flyash Raymond Powder Mill Price:
Applied in nonflammable and non-explosive minerals of which Moh’s hardness less than 7 and moisture less than 6%, for example: quartz, feldspar, calcite, talcum, barite, fluorite, Rare earth, marble, ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, zircon, slag, granulating slag, cement clinker, active carbon, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash, soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack, porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophillite, shale, basalt, gypsum, graphite.
Working Principles of HC Flyash Raymond Powder Mill Price:
Firstly, raw material is crushed by jaw crusher to the required size, which is lifted up to the hopper. Secondly, the raw material goes into the grinding chamber through the electro-magnetic vibrating feeder at an even rate. Thirdly, the raw material lifted by the shovel is ground into powder between the ring and roller. Fourthly, the powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
Advantages of HC Flyash Raymond Powder Mill Price:
1) The only professional producer of Raymond Mill in China.
2) Powder-saving and Higher Production Capacity (1-40T/H)
3) Smooth and Reliable Performance.
4) Fineness: 100—800 Mesh (Adjustable)
5) Run for 1000 hours without Lubrication
Technical Data of HC Flyash Raymond Powder Mill Price:
Model |
2R2713 |
3R3220 |
4R3216/3218 |
5R4119/4121 |
|
|
Roller |
No. of Roller |
2 |
3 |
4 |
5 |
Diameter: (mm) |
270 |
320 |
320 |
410 |
|
Height: (mm) |
130 |
200 |
160/180 |
190/210 |
|
Ring |
Inner Diameter: (mm) |
780 |
970 |
970 |
127 0 |
Height: (mm) |
130 |
200 |
160 |
190 |
|
Max. Feeding Size (mm) |
≤15 |
≤20 |
≤20 |
≤25 |
|
Fineness(mm) |
0.044-0.125 |
0.044-0.125 |
0.044-0.125 |
0.044-0.125 |
|
Total Power (kw) |
42.5 |
87.5 |
87.5 |
172.5 |
|
Capacity: (t/h) |
0.3-3 |
1-4.5 |
1-4.5 |
2-9 |
|
|
Overall Dimension (L×W×H)(mm) |
5490×3875×5530 |
7464×5000×8345 |
7464×5000×8345 |
11345×6885×10330 |
|
Weight: (t) |
5.5 |
14 |
14.2 |
28 |
|
Model |
HC1000 |
HC1300 |
HC1460 |
HC1700 |
HC2000 |
|
|
Roller |
Number of Rollers |
3 |
4 |
4 |
5 |
5 |
Diameter(mm) |
320 |
410 |
460 |
510 |
620 |
|
Height(mm) |
200 |
230 |
250 |
250 |
250 |
|
Ring |
Inner Diameter(mm) |
970 |
1270 |
1460 |
1700 |
2000 |
Height(mm) |
200 |
210 |
250 |
250 |
250 |
|
Max. Feeding Size(mm) |
≤20 |
≤25 |
≤35 |
≤50 |
≤50 |
|
Fineness(mm) |
0.015-0.18 |
0.044-0.18 |
0.022-0.18 |
0.022-0.18 |
0.022-0.18 |
|
Total Power(kw) |
105 |
183.5/198.5 |
242 |
364 |
670 |
|
Capacity(t/h) |
1.5-6 |
3-12 |
5-15 |
6-25 |
20-45 |
|
Weight(t) |
14 |
28 |
37 |
46 |
102 |
|
The Solution of HC Flyash Raymond Powder Mill Price:
