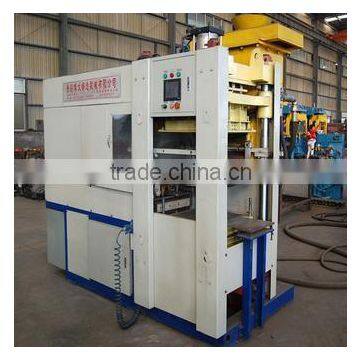

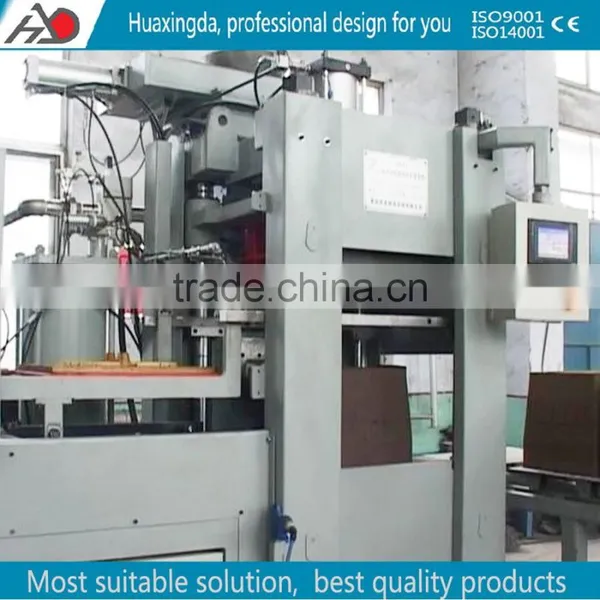

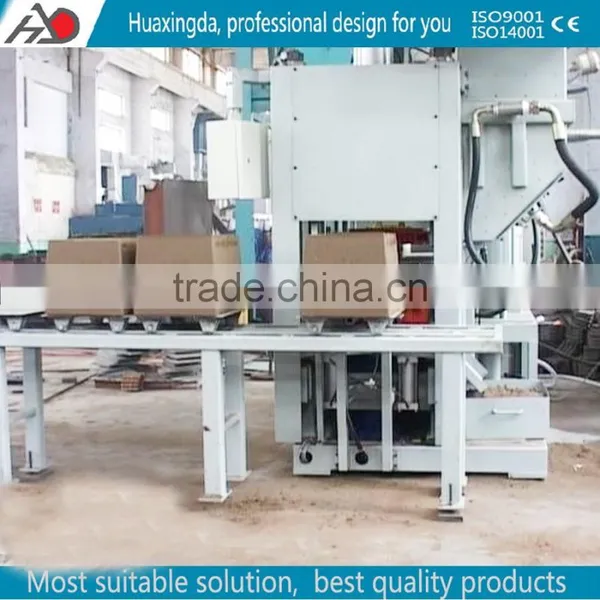

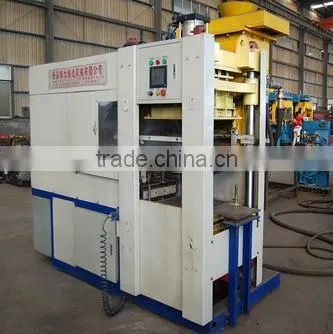

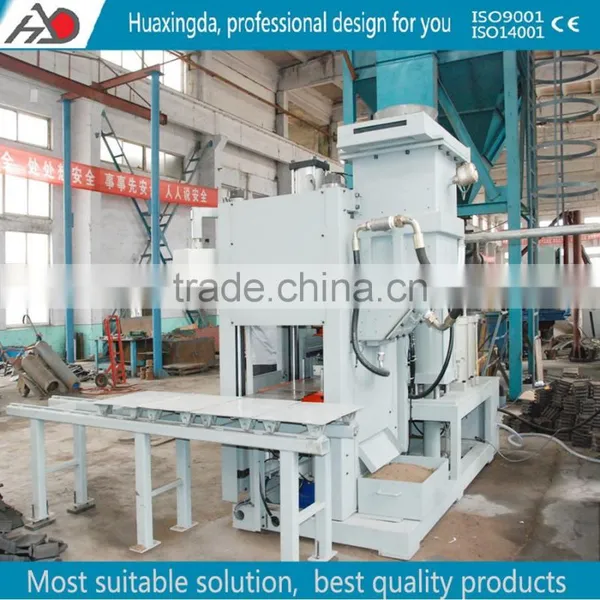

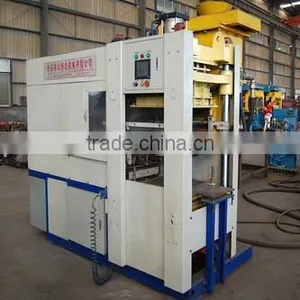

Help CenterFlaskless Molding Machine ZX424
Related Products
Item | specification | description |
Mould size | 500*400*150 | Special designed |
Mould weight | 90-110kg | According workpiece |
Productivity | 80mould/Hr | According workpiece |
Squeeze method | Hydraulic/Air-oil booster | Special designed |
Compaction ratio | 6-9kgf/cm 2 |
|
Compress pressure | 10-13Mpa | adjustable |
Control system | SIEMENSE | PLC and control elements |
Overall size | 3800*1600*3100 |
|
Air consumption | 1.6CBM/mold |
|
Total power | 11KW |
|
Through advanced engineering techniques as well as continuous modification and improvements, horizontal flaskless molding has achieved notable production and casting quality levels and has attained new heights of casting dimensional tolerance and accuracy. The horizontal flaskless systems are suited to gray, malleable and ductile iron as well as steel, aluminum and brass castings.

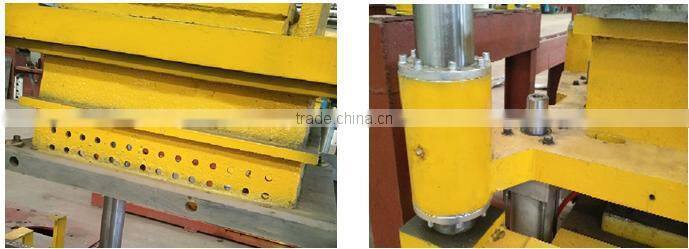

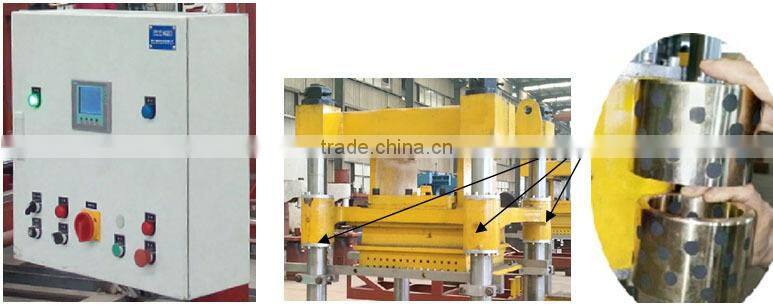

Control system reach CE standard each of 4 shaft sleeve have 2 special bearing blocks inside
Ductile iron flask not weldment ductile iron frame not weldment
long time service no any deformation shaft sleeve and flask frame pouring integrated

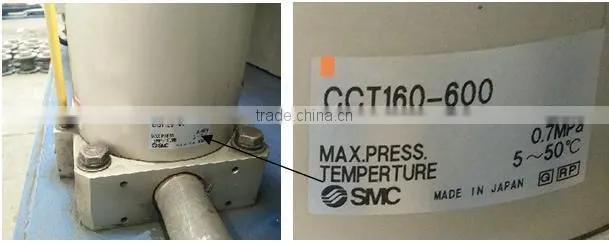

Air-hydro converter
Wago wire terminal

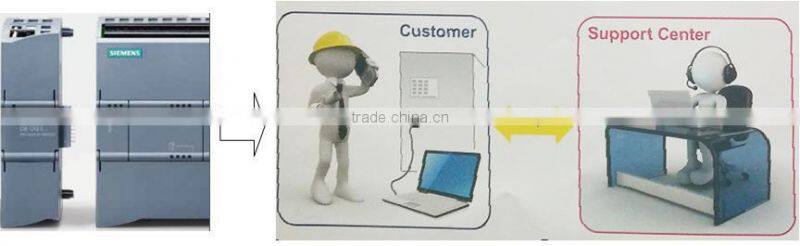

Siemens PLC internet module remote support immediately, check machine condition online
