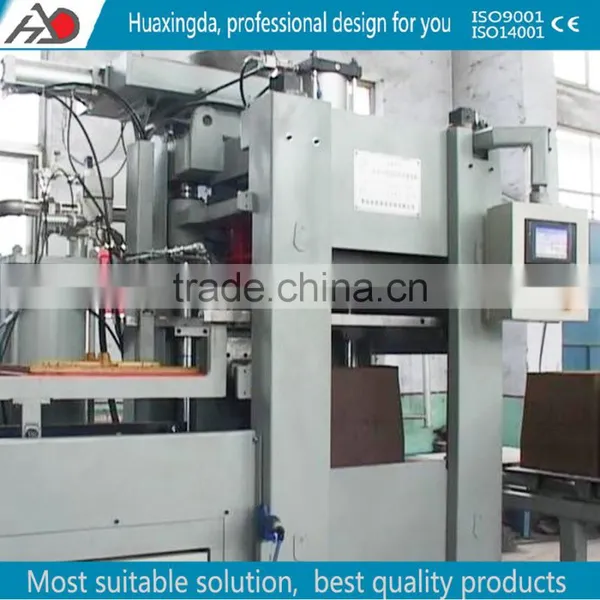

FDNX type sand molding machine
- 5 Set / Sets per Month
- Qingdao port
- T/T L/C D/P D/A Credit Card
- Supply Wax Injection Machine for the investment casting line
- supply semi-automatic Dewaxing Autoclave for investment casting industriy
- New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
- WATER MOLD TEMPERATURE MACHINE
- OIL TYPE MOLD TEMPERATURE MACHINE
- WATER-COOLED INDUSTRIAL CHILLER
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HXD |
Model Number: | ZXA5060 | Voltage: | 380V | Power(W): | 11KW |
Dimension(L*W*H): | 3800*2600*3100 | Weight: | according to different type | Certification: | ISO9001 |
Warranty: | 1 year | After-sales Service Provided: | Overseas service center available |
Product Description
Item | specification | description |
Mould size | 500*600*150-200 | adjustable |
Mould weight | 90-110kg | According workpiece |
Productivity | 80mould/Hr | According workpiece |
Squeeze method | Hydraulic/Air-oil booster | Special designed |
Compaction ratio | 6-9kgf/cm 2 |
|
Compress pressure | 10-13Mpa | adjustable |
Control system | SIEMENSE | PLC and control elements |
Overall size | 3800*1600*3100 |
|
Air consumption | 1.6CBM/mold |
|
Total power | 11KW |
|
Through advanced engineering techniques as well as continuous modification and improvements, horizontal flaskless molding has achieved notable production and casting quality levels and has attained new heights of casting dimensional tolerance and accuracy. The horizontal flaskless systems are suited to gray, malleable and ductile iron as well as steel, aluminum and brass castings.
Emergency system reach CE standard ductile iron frame two special bearing blocks
Ductile iron flask ductile iron frame
long time service no any deformation shaft sleeve and flask frame pouring integrated
Air-hydro supercharger
Wago wire terminal
Remote control and diagnosis function
