Foundry use sand moulding machine from china
Through advanced engineering techniques as well as continuous modification and improvements, horizontal flaskless molding has
achieved notable production and casting quality levels and has attained new heights of casting dimensional tolerance and accuracy.

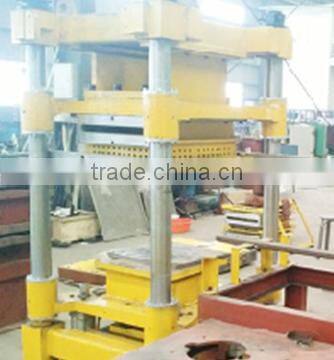

The horizontal flaskless systems are suited to gray, malleable and ductile iron as well as steel, aluminum and brass castings. Inaddition, the models on the basis of previous horizontal molding machine institutional improvements. Top, bottom, middle, lower box at the same time fixed in the four pillars to ensure the accuracy of the co-box,and so on.
Item | specification | description |
Mould size | 500*400*150 | Special designed |
Mould weight | 80-85kg | According workpiece |
Productivity | 100-120mould/Hr | According workpiece |
Squeeze method | Hydraulic/Air-oil booster | Special designed |
Compaction ratio | 6-9kgf/cm 2 |
|
Compress pressure | 10-13Mpa | adjustable |

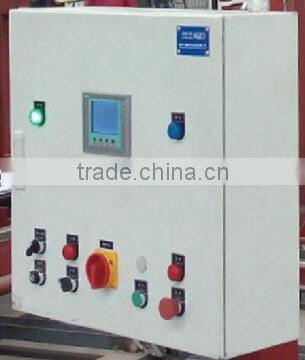

Control system | SIEMENSE | PLC and control elements |
Overall size | 3800*1600*3100 |
|
Air consumption | 0.6-1.6CBM/mold |
|
Total power | ~22KW |
|
Emergency system reach CE standard ductile iron frame two graphite filled bearing blocks
Ductile iron flask not weldment ductile iron frame not weldment
long time service no any deformation shaft sleeve and flask frame pouring integrated

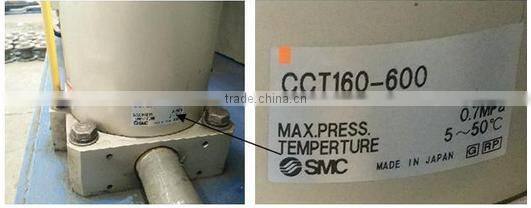

Air-hydro supercharger
Wago wire terminal

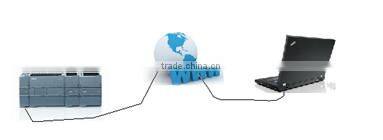

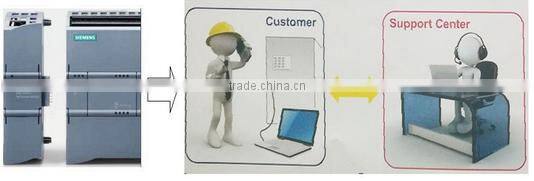

Remote control and diagnosis function
1.Reply your inquiry in 24 working hours.
2.The best senior engineer to design products for you.
3.With16 years of production experience in molding machine industry.
4.Professional factory:we are manufacturer,specializing in all kinds of machine more than 16 years.
5.As an honest seller:We always use superior raw materal,advanced machines,skilled technicians to ensure our products to be finished in high quality and stable feature.Welcome to contact us or visit our company.
If you wang to perchase sand molding machine ,please indicate the following details.
1) The productivity that you need.
2) Your workpieces dimension.
According to your information,we would recommend a most suitable machine fou you.
