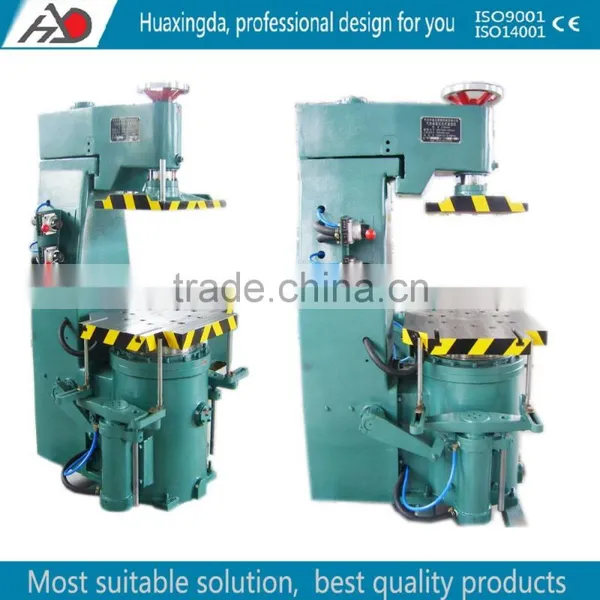

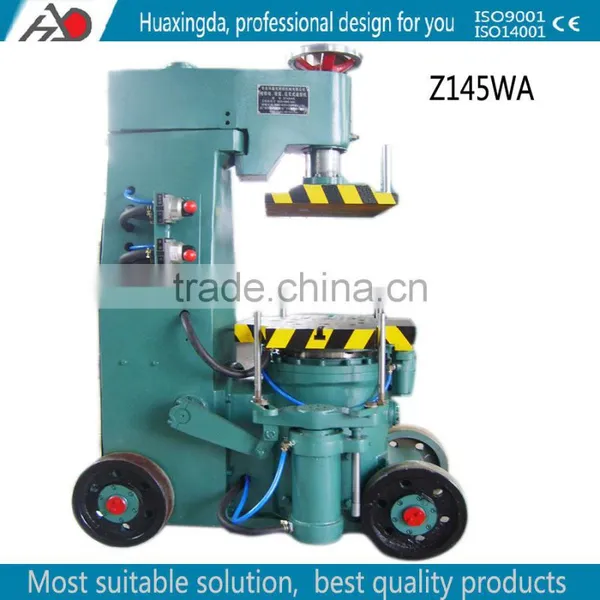

Help CenterZ145WA Jolt Squeezer
Related Products
-
Foundry Use Sand Moulding Machine From ChinaUS$ 55,000 - 60,000MOQ: 1 Set -
Microseism Jolt Squeeze Clay Sand Molding MachineUS$ 2,600 - 5,000MOQ: 1 Set
-
China Jolt Squeeze Metal Molding MachineUS$ 2,600 - 5,000MOQ: 1 Set
-
Automatic Flaskless Shoot Squeeze Molding MachineUS$ 55,000 - 60,000MOQ: 1 Set
-
Jolt Squeeze Molding for Cast Metal Workpiece MachineUS$ 2,600 - 5,000MOQ: 1 Set
Features
1. This micro squeeze molding machine is fully buffered, high frequency, low amplitude and working by pneumatic vibration.
2. The shock part of the machine is fitted with buffer spring, so it can effectively reduce the impact to the installation ground.
3. The whole machine fuselage is made by steel structure weldment, it can significantly enhance the rigidity.
Machine structure is consisted of working table, jolt piston, jolt iron compressive piston, squeezing cylinder and pneumatic control device.
4. The rotary compact head is consisted of compact head, the rotary beam, the wheel axle, the gear rack piston. Rotary head device has buffer at both ends, so when compact head rotating it perform a stable and smooth action.
5. The mold drawing structure is consisted of drawing cylinder connected with synchronizing shaft, drawing cylinder driven by air-oil transfer device,so it assure the a smooth beginning of drawing.
specification:
Item | Unit | Z145WA |
Flask dimension | mm | 500*400 |
Worktable dimension | mm | 600*520 |
Jolting load | Mpa | 300 |
Compressive stress | kgf | 6200 |
Compact stroke | mm | 160 |
Drawing mold stroke | mm | 200 |
Distance compacting plate with worktable | mm | 450 |
Productivity | mold/h | 40-60 |
Overall dimension L*W*H | mm | 1000×850×1780 |
Total weight | Kg | 1500 |

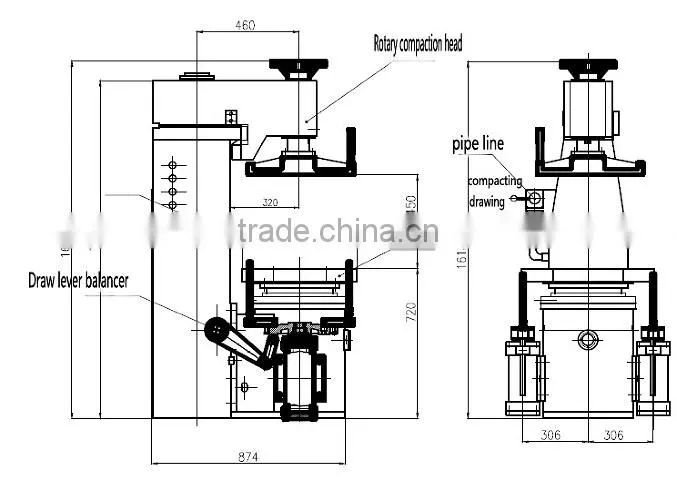

Z145WA structure

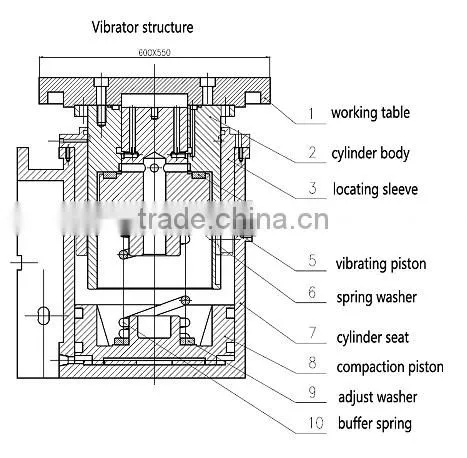

vibrator structure

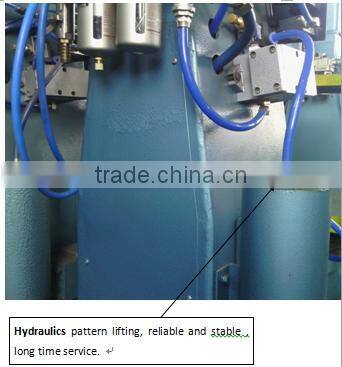

Advantage structure:
the flask lifting structure is adopt new designing, piston is movable , instead of cylinder sleeve moving , so this new structure only need piston seal, not need two seal parts.
It is prolong the service time twice as other machine.

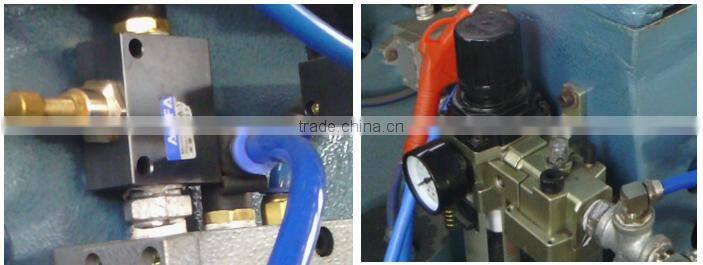

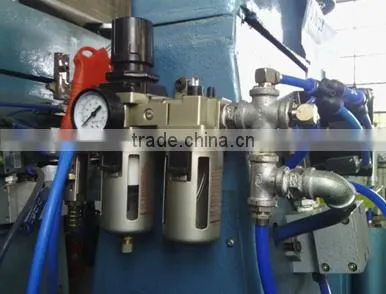

Famous brand pneumatic element
