Home > Products > foundry machinery > ZH9407B Core shooter machine for casting machine

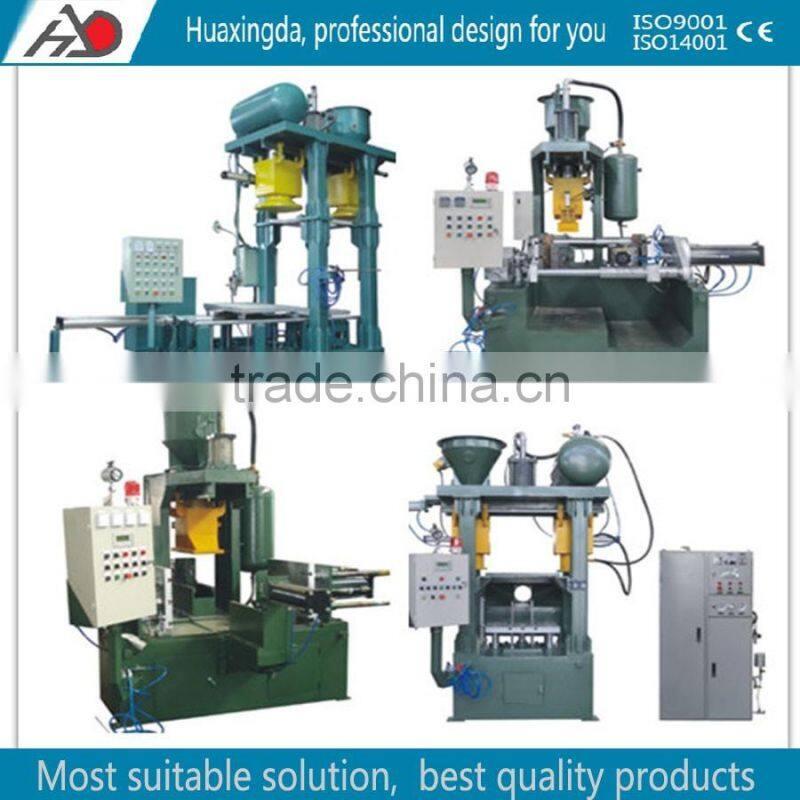

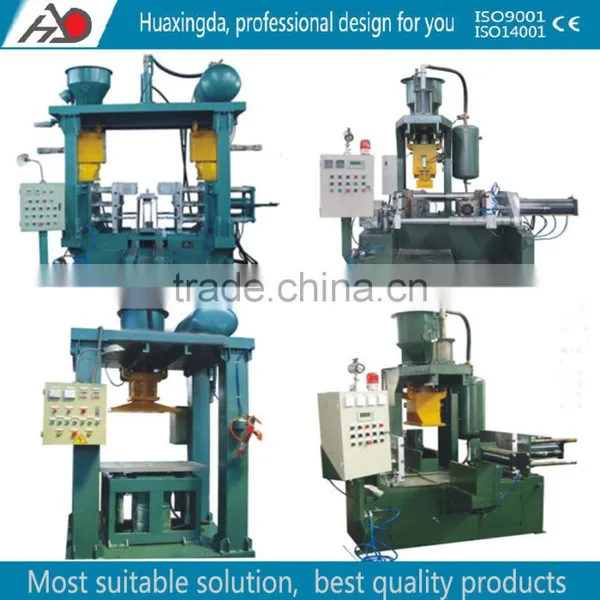

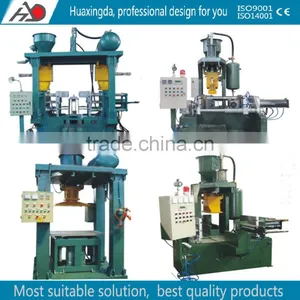

ZH9407B Core shooter machine for casting machine
- 10 Set / Sets per Month
- qingdao port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HXD | Model Number | ZH9409 | |
| Voltage | 380V | Power(W) | customized | |
| Dimension(L*W*H) | customized | Weight | Customized Dimension | |
| Certification | CE/ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ZH9407B Core shooter machine for casting machine
Best Quality Widely Use Core Shooting Machine:
Core shooter is widely applied in foundry industry in recent years, due to use sand core shooting machine to mould, can not only save high salary of moulding labor, because is many boxes stacked pouring, can also reduce the waste of ingate and riser, the coated sand after pouring, collapsibility is very good, good for sand. sand core shooting machine production efficiency is high, the size precision of sand mould, can be appropriately reduced processing amount. Easy operation, the casting finished produts yield high . More foundry prefer using sand core shooting machine to mould.
(1) ZH9650 four vertical column horizontal parting auto cover sand machine
Technical characteristics:
ZH 9650 cover sand machine is a new type hot-box core shooting machine which the sand core below 25 kilograms, efficient and automatic. It is the top of core shooter which developed based on the ZH-600,ZH-700 type. It is applicable to the sand core of horizontal parting!
ZH9560 core shooting machine is applicable to produce all kinds of complicated sand cores for mass production! It has advantages of accurate sand core size, high productivity, low labor intensity and so on! It adopts the electric heating mode and equipped with the appropriate temperature-controlled instrument.
Type | ZH9650 |
Maximum size of core box(LXWXH)mm | 900x650x300 |
Maximum distance between molding plate(mm) | 650 |
Die assembly cylinder process(mm) | 450 |
Die assembly cylinder diameter(mm) | 125 |
Sand core maximum weight(kg) | 25 |
Sand hopper maximum capacity(kg) | 200 |
Heated power(kw) | 30 |
Drive mode | Pneumatic |
Operate mode | Manual/single |
Power(220v) | 50HZ |
System pressure(Mpa) | 0.5-0.6 |
Sand shoot pressure(Mpa) | 0.3-0.45 |
Used sand core | Phenolic resin cover sand |

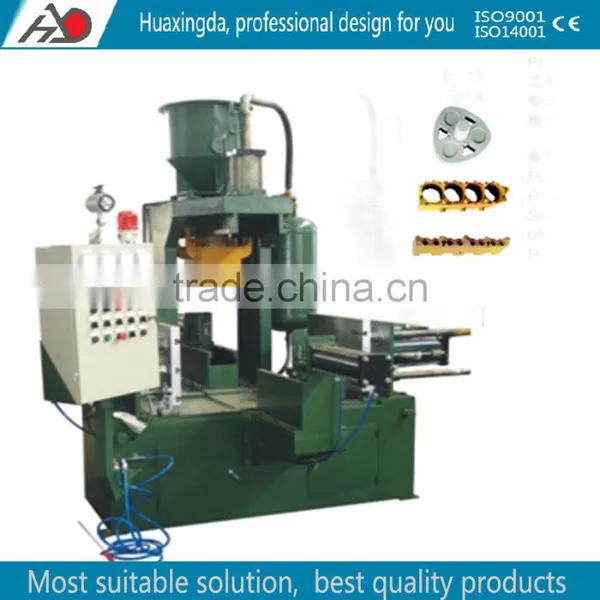

(2)ZH9407B Core shooting machine
PLC programmable control
Adjustable about the technical parameters
Specializing in the production of valves, off the lower top core core pulling;
Type | ZH9407B |
Molding board maximum size(mm) | 760X550 |
Molding maximum size(mm) | 600X500X300 |
Maximum sand core weight(kg) | 30 |
Molding assembly(mm) | 400 |
Sand hopper capacity(kg) | 200 |
System pressure(Mpa) | 0.55-0.7 |
Heating way | Electric heating |
Electric heating power (Kw) | 35 |
Operation mode | Semi-automatic/Automatic |
(3) ZH9409 Core shooting machine
Technical characteristics:
PLC programmable control
Adjustable about the technical parameters
Sand core moveable equipment(include the top core)
The top core box templates can move up and down
I t is suitable for four-cylinder, six-cylinder, water jacker sand core system
Type | ZH9407H-30 | ZH9409 | ZH9410-50 | ZH9412-50 |
Molding board maximum size(mm) | 780×500 | 900×600 | 1070×800 | 900×800 |
Cover die thick(mm) | 200 | 200 | 200 | 200 |
Movable mould assembly process(mm) | 150 | 200 | 200 | 200 |
Mold assembly | 400 | 400 | 400 | 400 |
Maximum sand core weight(kg) | 30 | 50 | 50 | 50 |
Sand hopper capacity(kg) | 200 | 200 | 200 | 200 |
Heating way | Electric heating Triethylamine | Electric heating Triethylamine | Electric heating Triethylamine | Electric heating Triethylamine |
Electric heating power(Kw) | 35 | 35 | 45 | 50 |
System pressure(Mpa) | 0.55-0.7 | 0.55-0.7 | 0.55-0.7 | 0.55-0.7 |
Operation mode | Semi-automatic/Automatic | Semi-automatic/Automatic | Semi-automatic/Automatic | Semi-automatic/Automatic |
(4)Z95 series full automatic shell core machine
Technical characteristics:
PLC programmable control
Meet the needs of shell mold ,shell core
Adjustable about the technical parameters
Molding temperature automatic control
Adopt the Permanent baffle board
Type | Z954K | Z955K | Z956K | Z957K |
Molding size(mm) | 500×320 | 550×400 | 650×400 | 750×580 |
Cover die thick(mm) | 150 | 150 | 180 | 180 |
Movable mould assembly process(mm) | 150 | 200 | 200 | 200 |
Mold assembly | 300 | 400 | 400 | 400 |
Maximum sand core weight(kg) | 15 | 20 | 20 | 25 |
Sand hopper capacity(kg) | 200 | 200 | 200 | 250 |
Heating way | Electric heating | Electric heating | Electric heating | Electric heating |
Electric heating power(Kw) | 25 | 25 | 30 | 40 |
System pressure(Mpa) | 0.55-0.70 | 0.55-0.70 | 0.55-0.7 | 0.55-0.7 |
Operation mode | Auto/Manual | Auto/Manual | Auto/Manual | Auto/Manual |
Pre-Sales Service:
1) Inquiry and consulting support.
2)Sample testing support.
3)View our Factory.
4)The best senior engineer to design products for you.
After-Sales Service
1) Training how to instal the machine, training how to use the machine.
2)Engineers available to service machinery overseas.
3).Reply your inquiry in 24 working hours.
