US$ 1 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:

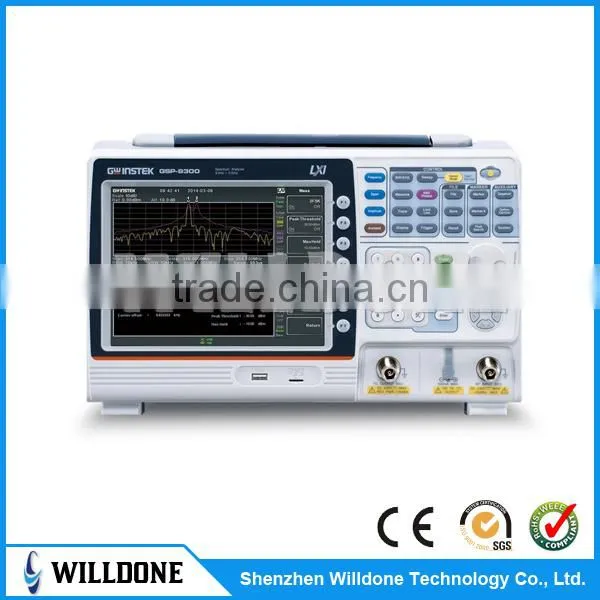

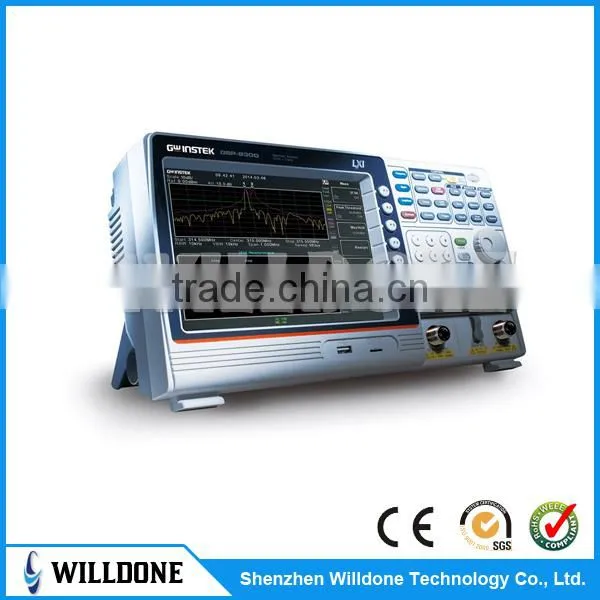

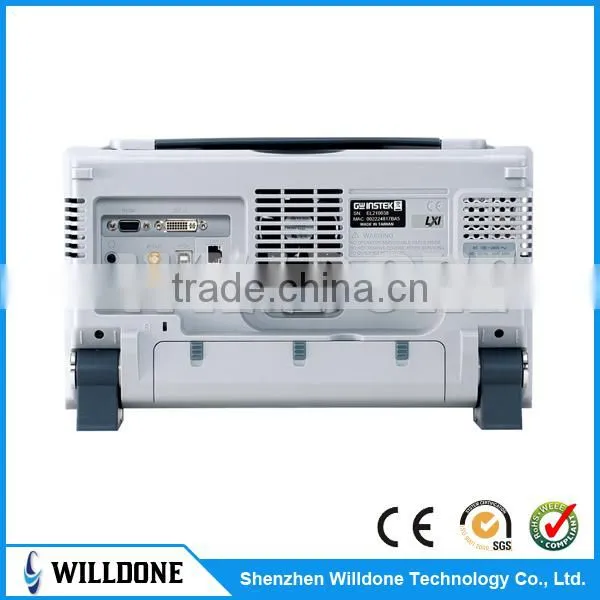

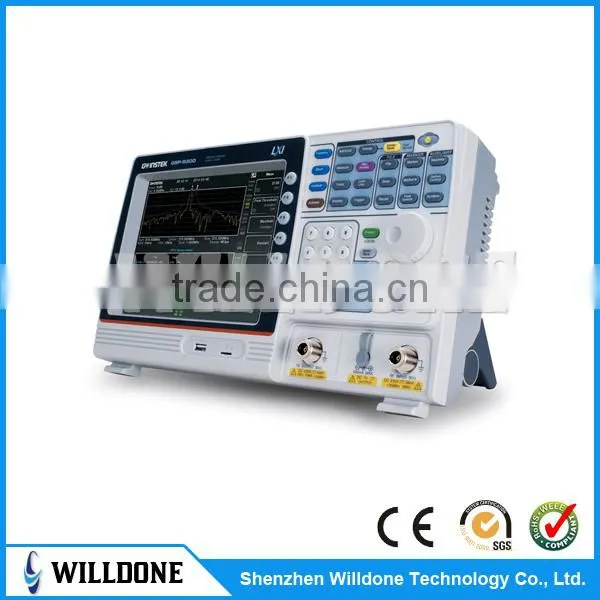

GSP-9300
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Real-Time & Digital Storage Oscilloscopes GRS-6000AUS$ 1 - 1,000MOQ: 1 Piece -
Handheld Oscilloscopes GDS-122US$ 1 - 1,000MOQ: 1 Piece
-
Spectrum Analyzers GSP-810US$ 1 - 1,000MOQ: 1 Piece
-
Digital Storage Oscilloscopes GDS-1000A-UUS$ 11 - 1,000MOQ: 1 Piece
-
Digital Storage Oscilloscopes GDS-2000A SeriesUS$ 11 - 700MOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
GW Instek
Model Number
GSP-9300
Features
- Frequency Range: 9kHz ~ 3GHz
- High Frequency Stability: 0.025ppm
- 3dB RBW: 1Hz ~ 1MHz
- 6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz
- Phase Noise: -88dBc/Hz @1GHz, 10kHz Offset
- Built-in Measurement Functions: 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis, EMC Pre-test, P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
- Built-in Spectrogram and Topographic Display Modes
- 886MHz IF Output for User’s Extended Applications
- Remote Control Interface: LAN, USB, RS-232, GPIB (Optional)
- Built-in Preamplifier, 50dB Attenuator, and Sequence Function
- Optional 6GHz Power Sensor, Tracking Generator, Battery Back
| Frequency | |||
| Frequency | Range | 9 kHz to 3.0 GHz | |
| Resolution | 1 Hz | ||
| Frequency Reference | Accuracy | ±[(period since last adjustment X aging rate) + stability over temperature + supply voltage stability | |
| Aging Rate | ±2 ppm max. | 1 year after last adjustment | |
| Frequency Stability over Temperature | ±0.025 ppm | 0 to 50 °C | |
| Supply Voltage Stability | ±0.02 ppm | ||
| Frequency Readout Accuracy | Start, Stop, Center, Marker | ±(marker frequency indication X frequency reference accuracy + 10% x RBW + frequency resolution*1) | |
| Sweep points | 601 | Span >= 100 Hz | |
| 6 to 601 | Span = 0 Hz | ||
| Marker Frequency Counter | Resolution | 1 Hz, 10 Hz, 100 Hz, 1 kHz | |
| Accuracy | ±(marker frequency indication X frequency reference accuracy + counter resolution) | RBW/Span >=0.02 ; Mkr level to DNL>30 dB | |
| Frequency Span | Range | 0 Hz (zero span), 100 Hz to 3 GHz | |
| Resolution | 1 Hz | ||
| Accuracy | ± frequency resolution*1 | ||
| Phase Noise | Offset from Carrier | Fc =1 GHz; RBW = 1 kHz, VBW = 10 Hz;Average ≥ 40 | |
| 10 kHz | <-88 dBc/Hz | Typical2 | |
| 100 kHz | <-95 dBc/Hz | Typical | |
| 1 MHz | <-113 dBc/Hz | Typical | |
| Resolution Bandwidth (RBW) Filter | Filter Bandwidth | 1 Hz to 1 MHz in 1-3-10 sequence | -3dB bandwidth |
| 200 Hz, 9 kHz, 120 kHz, 1 MHz | -6dB bandwidth | ||
| Accuracy | ± 8%, RBW = 1 MHz | Nominal3 | |
| ± 5%, RBW < 1 MHz | Nominal | ||
| Shape Factor | < 4.5:1 | Normal Bandwidth ratio: -60dB:-3dB | |
| Video Bandwidth (VBW) Filter | Filter Bandwidth | 1 Hz to 1 MHz in 1-3-10 sequence | -3dB bandwidth |
| [1] Frequency Resolution = Span/(Sweep points - 1) | |||
