- 20MHz Bandwidth
- 100MS/s Real-Time Sampling Rate
- True RMS Multimeter: Volt, AMp, Ohm, Continuity, Diode
- Dual Independent Floating Isolated Channels
- Trigger Mode: Free Run, Single Shot, Edge, Video
- USB Interface
- 6 Hour Capacity Li-ion Rechargeable Battery
- 3.8" Color LCD, Resolution: 320 x 240
- Light Weight: 690g

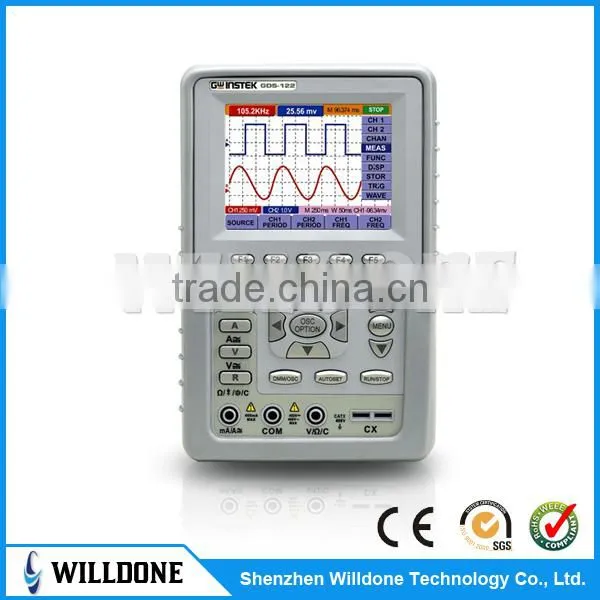

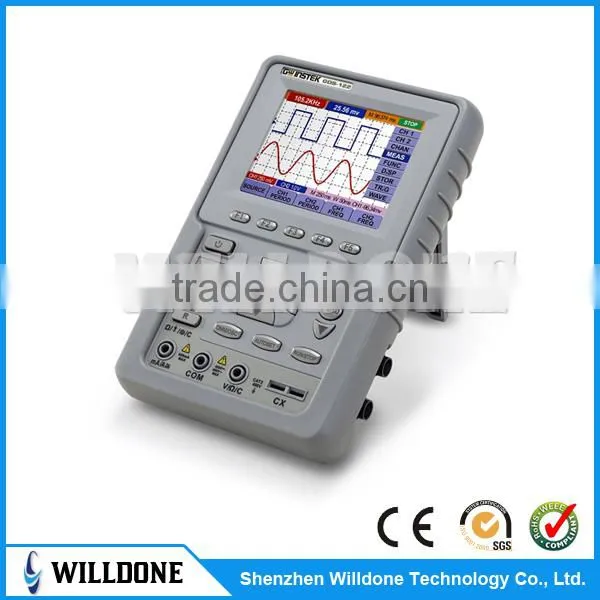

The GDS-122 is a reliable and handy instrument for all test and electronic engineers. This model is designed to carry out complicated on-site tests. The Dual-channel unit features 20MHz of bandwidth with a sampling rate of 100MS/s along with multimeter functionality. The color LCD display with a resolution of 320 x 240 helps you to read waveforms easily, especially when displaying a lot of data or multiple waveforms. The compact design with the total weight of 690g allows engineers to carry it around easily. The protective cover of the unit is insulated and specially designed to guarantee endurance and reliability in tough environments. The rechargeable Li-ion battery ensures convenience for on-site testing.
| GDS-122 | |
| Display | 3.7" STN Color |
| Bandwidth (MHz) | 20 |
| Number of Channel | 2 |
| Memory Depth | 6k Points/Channel |
| Sample Rate | 100MSa/s (RTS) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 5mV ~ 5V |
| Time Base Range | 5ns ~ 5s/div |
| Input Impedance Selection | 1MΩ |
| Auto Measurement | 5 |
| Waveform Memory | 4 |
| Panel Setup Memory | 2 |
| Auto-Set | V |
| Auto/Normal Trigger | V |
| ALT Trigger | - |
| TV Trigger | V |
| Cursor Readout | V |
| XY Mode | - |
| Zoom | - |
| Go/NoGo | - |
| Zoom FFT | - |
| Counter Function | - |
| Function Generator | - |
| Logic Analyzer | - |
| Data Logger | - |
| Digital Storage | V |
| Digital Multimeter Function | V |
| Interface | USB Host |
| SVGA Output | - |
| Buzzer Alarm | - |
| PictBridge Compatible | - |
| Battery Power Operation | V |
| LED Indicators | - |
| Z-Axis Input | - |
| LabView Driver | - |
| Power Source | AC 100V ~ 240V |
