Home > Instruments & Meters > Electronic Instrument > Oscilloscope > Digital Storage Oscilloscopes GDS-1000A-U
US$ 11 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:
GDS-1000A-U
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Storage Oscilloscopes GDS-2000A SeriesUS$ 11 - 700MOQ: 1 Piece -
Spectrum Analyzers GSP-830US$ 1 - 1,000MOQ: 1 Piece
-
Digital Storage Oscilloscopes GDS-1000-UUS$ 1 - 1,000MOQ: 1 Piece
-
Digital Storage Oscilloscopes GDS-3000 SeriesUS$ 1 - 10,000MOQ: 1 Piece
-
Digital Storage Oscilloscopes GDS-2000E SeriesUS$ 1 - 800MOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
GW Instek
Model Number
GDS-1000A-U

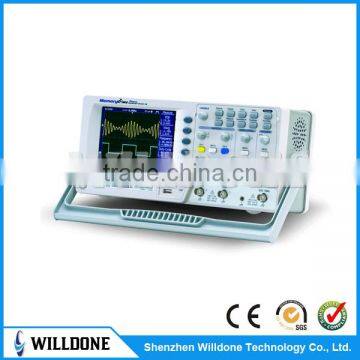

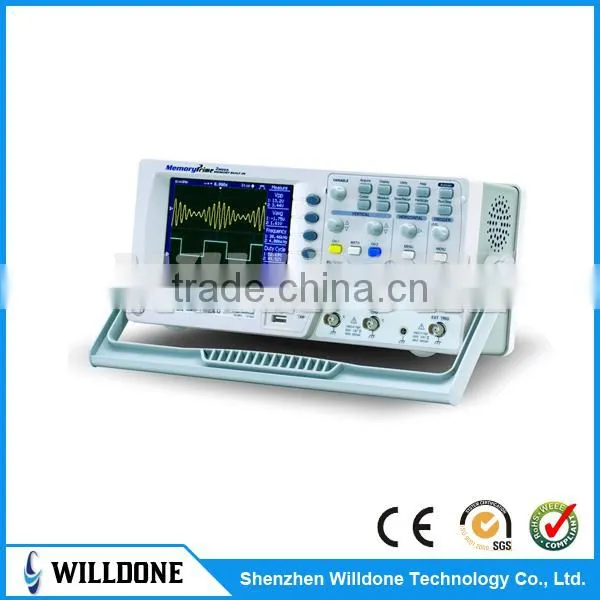

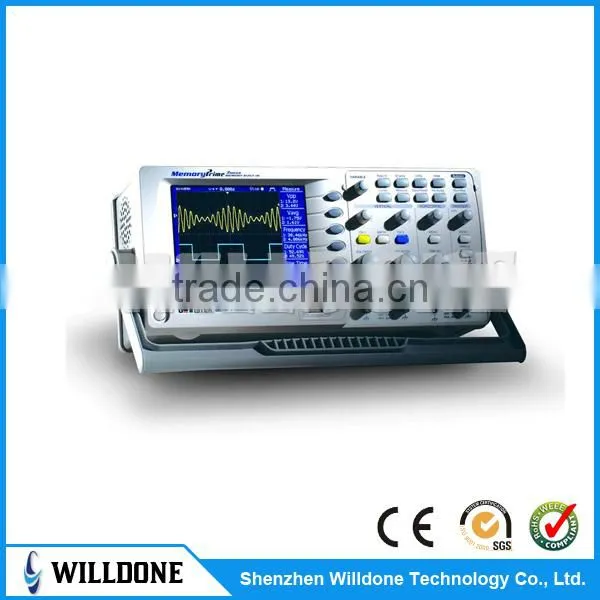

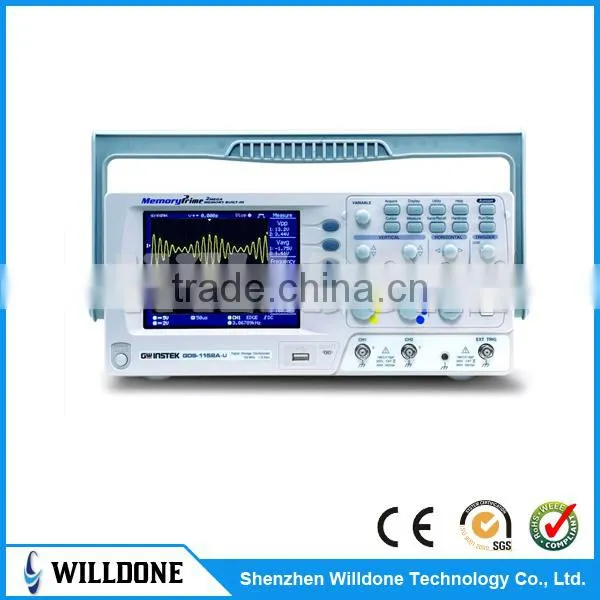

Digital Storage Oscilloscope
Features
- 150/100/70MHz Bandwidths
- 1GSa/s Real-Time Sample Rates Maximum, 25GSa/s Equivalent-Time
- 2Mega Points Record Length
- 2mV~10V Vertical Scale
- 1ns~50s Horizontal Range
- Up to 27 Automatic Measurements
- 5.7" TFT LCD Display
- USB Host and Device Interface Supported
- Go/NoGo Function
- Data Logger
- Limited Lifetime Warranty
The GDS-1000A-U series provide a unique solution. The GDS-1000A-U lineup includes GDS-1152A-U, GDS-1102A-U and GDS-1072A-U three models. Operating at 150, 100 or 70 MHz with a real-time sampling rate of 1GSa/s, the GDS-1000A-U employs MemoryPrime technology . Using MemoryPrime technology, the GDS-1000A-U is able to overcome the problems associated with memory constraints. High sample rates, rarely found in traditional DSOs, can be maintained over longer periods of time, without effecting performance.
Coupled with the high resolution 5.7” color TFT display, with user-friendly interface USB device and host port make the GDS-1000A-U series feature-rich. Furthermore, the GDS-1000A-U series provide a lifetime warranty program!
Coupled with the high resolution 5.7” color TFT display, with user-friendly interface USB device and host port make the GDS-1000A-U series feature-rich. Furthermore, the GDS-1000A-U series provide a lifetime warranty program!
| GDS-1152A-U | GDS-1102A-U | GDS-1072A-U | |
| Waveform Technology | Memory-Prime | ||
| Display | 5.7" TFT LCD Color | ||
| Bandwidth (MHz) | 150 | 100 | 70 |
| Number of Channel | 2 | 2 | 2 |
| Memory Depth | 2M Points | ||
| Sample Rate | 1GSa/s (RTS) | ||
| Vertical Resolution | 8-bit | ||
| Vertical Sensitivity | 2mV/div ~ 10V/div | ||
| Time Base Range | 1ns/div ~ 50s/div | ||
| Input Impedance Selection | 1MΩ | ||
| Auto Measurement | 27 | ||
| Waveform Memory | 15 | ||
| Panel Setup Memory | 15 | ||
| Auto-Set | V | ||
| Auto/Normal Trigger | V | ||
| ALT Trigger | - | ||
| TV Trigger | V | ||
| Cursor Readout | V | ||
| XY Mode | V | ||
| Zoom | V | ||
| Go/NoGo | V | ||
| Zoom FFT | V | ||
| Counter Function | V | ||
| Function Generator | - | ||
| Logic Analyzer | - | ||
| Data Logger | V | ||
| Digital Storage | V | ||
| Go/NoGo Output | - | ||
| Interface | USB Host/Device | ||
| SVGA Output | - | ||
| Buzzer Alarm | - | ||
| PictBridge Compatible | V | ||
| Battery Power Operation | - | ||
| LED Indicators | - | ||
| Z-Axis Input | - | ||
| LabView Driver | V | ||
| Power Source | AC 100V ~ 240V | ||
