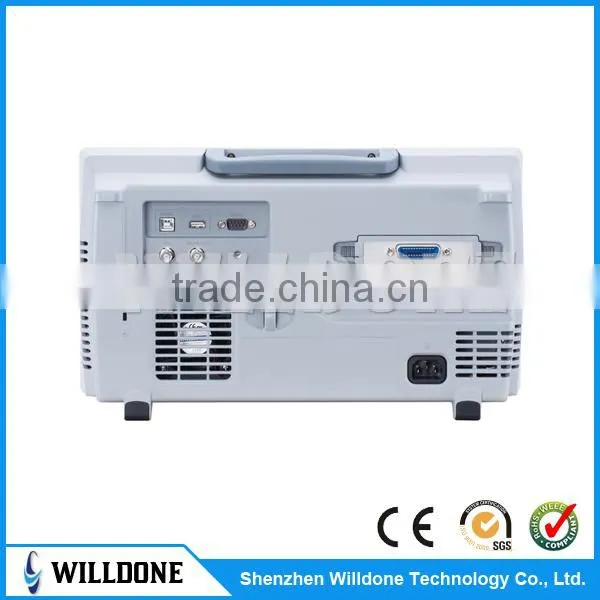

Digital Storage Oscilloscopes GDS-2000A Series photo-2

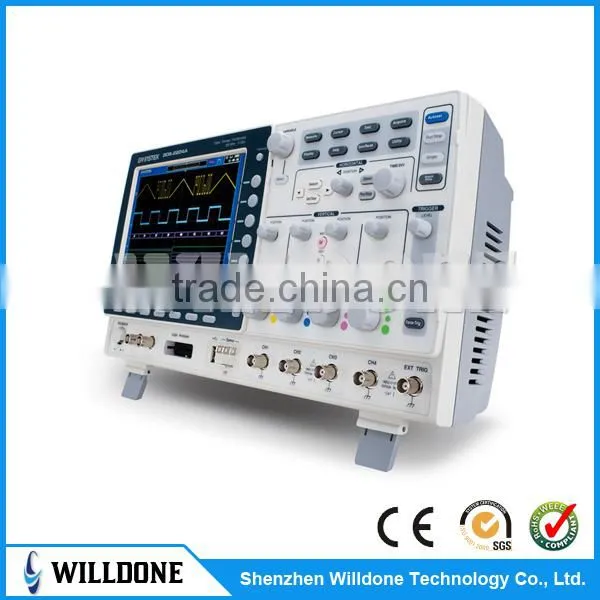

Digital Storage Oscilloscopes GDS-2000A Series photo-3

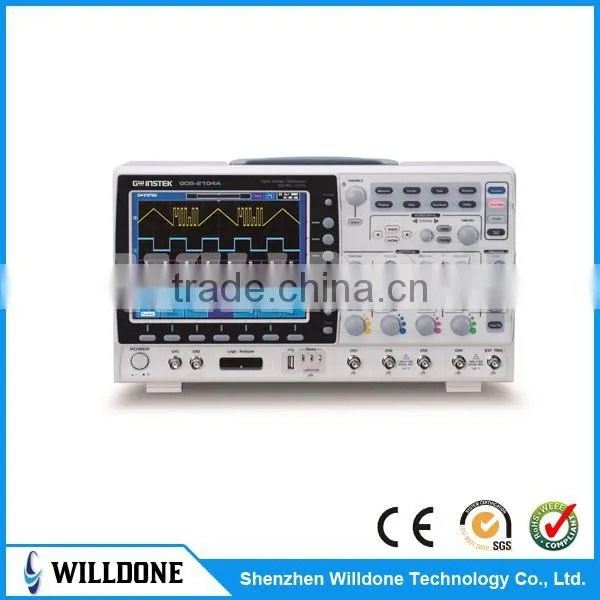

Digital Storage Oscilloscopes GDS-2000A Series photo-4
US$ 11 - 700 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:
GDS-2304A GDS-2302A GDS-2204A GDS-2202A GDS-2104A GDS-2102A GDS-2074A
Contact Supplier Request Quote Chat Now
Shenzhen Willdone Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name GW Instek
Model Number GDS-2304A GDS-2302A GDS-2204A GDS-2202A GDS-2104A GDS-2102A GDS-2074A

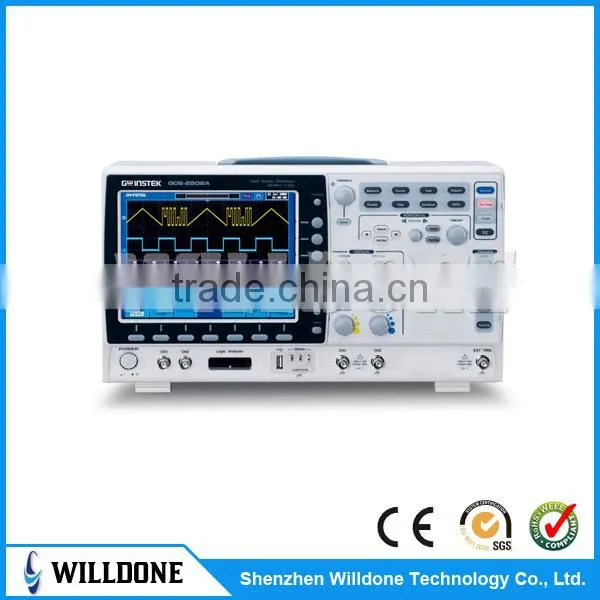

Digital Storage Oscilloscopes

Features
  •
    300MHz/200MHz/100MHz/70MHz Bandwidth ,2 or 4 Input Channel
  •
    2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
  •
    2Mega Points Record Length
  •
    1mV /div to 10V/div of Vertical Range
  •
    1ns/div to 100s/div of Time Base Range
  •
    80,000 wfm/s of Waveform Update Rate
  •
    8 inch 800*600 High Resolution TFT LCD Display
  •
    Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length
  •
    Zoom Window and Play/Pause can Rapidly Navigate the Waveforms
  •
    36 Automatic Measurement Functions Offers Various Measurement Selections
  •
    Optional 8 or 16 digital channel with Logic analyzer(MSO)
  •
    Optional Function Generator
  •
    Flexible Remote Control Connectivity(Standard:USB ;Option:LAN/GPIB)
  •
    Upgradable CAN/LIN bus analysis ,Advanced Logic ,Datalog ,DVM and H-expansion functionalities

2GSa/s Real-time Sampling Rate and up to 300MHz Bandwidth

GDS-2000A Series Digital Storage Oscilloscope offers 2 and 4-channel configurations and wide bandwidth selections, including 300MHz, 200MHz, 100MHz and 70MHz. Each model provides 2GSa/s maximum real-time sampling rate and 100GSa/s high-speed equivalent-time sampling rate. Equipped with an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, the GDS-2000A Series is able to faithfully demonstrate waveforms of complicated and obscure signals.

2Mega Point Record Length, Waveform Search and Segmented Memory Functions
The GDS-2000A Series provides 2Mega point record length, and Waveform Search and Segmented Memory functions as standard features. The events of interest can be captured and saved into the Segmented Memory, which can be divided into 2048 sections, for observation, while the irrelevant waveforms can be ignored. Consequently, the overall efficiency of memory usage can be enhanced. Under Waveform Search mode, after the input signal is triggered, the GDS-2000A Series is able to Search and Mark the waveform sections, which comply with user-defined search condition and threshold level within the whole memory. Meanwhile, with Zoom window and Play/Pause button to scroll through whole displayed waveform, the user can rapidly navigate all the waveforms in an efficient way.

  GDS-2304A GDS-2302A GDS-2204A GDS-2202A GDS-2104A GDS-2102A GDS-2074A GDS-2072A
Waveform Technology VPO ( Visual Persistence Oscilloscope )
Display

8" TFT LCD SVGA
Bandwidth (MHz)

300

 300 200 200 100 100 70 70
Number of Channel

4

 2 4 2 4 2 4 2
Memory Depth

Max. 2M pts
Sample Rate

2GSa/s (RTS)
100GSa/s (ETS)
 Vertical Resolution  8-bit
Vertical Sensitivity  1mV/div ~ 10V/div
Time Base Range 1ns/div ~ 100s/div
Input Impedance Selection  1MΩ
Auto Measurement 36
Waveform Memory 24
 Panel Setup Memory 20
Auto-Set V
 Auto/Normal Trigger V
ALT Trigger  V
 TV Trigger V
Cursor Readout  V
 XY Mode V
Zoom  V
 Go/NoGo V
Zoom FFT  V
 Counter Function V
Function Generator  Opt.
Logic Analyzer Opt.
Data Logger V, *It Support From App Software.
Digital Storage V
Go/NoGo Output V
Interface USB Host/Device, RS-232, GPIB(Opt.), Lan(Opt.)
SVGA Output Opt.
Buzzer Alarm V
PictBridge Compatible V
Battery Power Operation -
LED Indicators -
Z-Axis Input -
LabView Driver V
Power Source AC 100V ~ 240V
