- 50M/30MHz with 100MSa/s and 2 Channles
- Equivalent Time Sampling of 500MSa/s max.
- Acquire Mode : Peak Detect, Envelop, Persistence
- Pre-Trigger Function 0 ~ 10 div
- ROLL Mode to 100s/div
- Waveform SAVE/RECALL 10 sets (REF0~REF9)
- Max. Sweep Rate 10ns/div
- Panel Setting SAVE/RECALL 10 sets (M0~M9)
- RS-232C Interface

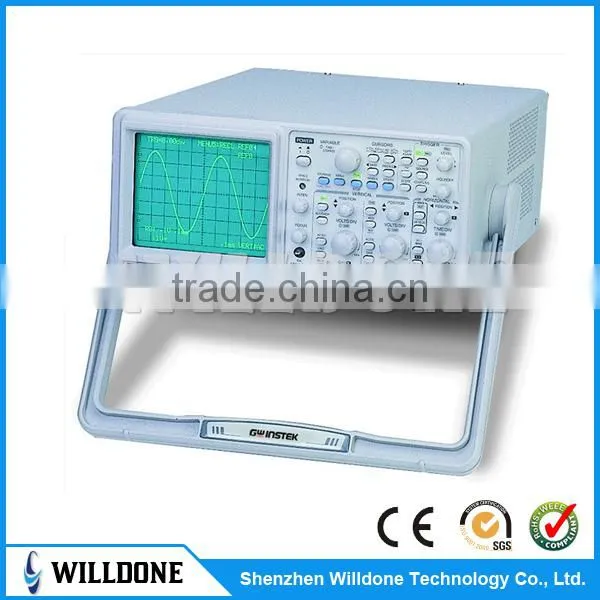

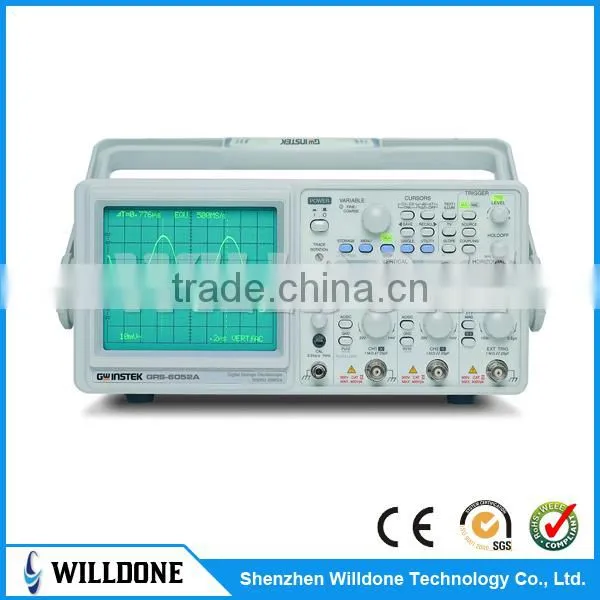

The GRS-6000A Series is a Real-Time/Digital Storage Oscilloscope, which provides both analog and digital storage features in one product. As original signals correctly represent and quickly update, the GRS-6000A Series allows users simultaneously to savie the waveform. With Equivalent Time Sampling at 500MSa/s, the GRS-6000A Series are capable of reconstructing repetitive waveforms up to 50MHz/30MHz in an accurate and detailed fashion. The waveform storage could be done just by pressing the RUN-STOP button, or through the Single Trigger mode which captures single-shot events. 10 Reference Waveforms can be saved and recalled for waveforms comparison. Numerous functions, such as Average, Pre-Trigger, Roll mode, Peak Detect, Envelop, Persistence, and X-Y mode, are available to meet various measurement applications. The RS-232C Interface and the free Remote Control Software enable monitoring, remote controlling, and storing waveforms in PC.
| GRS-6052A | GRS-6032A | |
| Digital / Analog | Digital + Analog | |
| Display | 6" CRT |
|
| Bandwidth (MHz) | 50 |
30 |
| Number of Channel | 2 |
2 |
| Memory Depth | 2k Words/CH |
|
| Sample Rate | 100MSa/s (RTS) |
|
| Vertical Resolution | 8-bit | |
| Vertical Sensitivity | 1mV ~ 20V | |
| Time Base Range | 0.2μs/div ~ 100s/div | |
| Input Impedance Selection | 1MΩ | |
| Auto Measurement | - | |
| Waveform Memory | 10 | |
| Panel Setup Memory | 10 | |
| Auto-Set | V | |
| Auto/Normal Trigger | V | |
| ALT Trigger | - | |
| TV Trigger | V | |
| Cursor Readout | V | |
| XY Mode | V | |
| Zoom | V | |
| Go/NoGo | - | |
| Zoom FFT | - | |
| Counter Function | V | |
| Function Generator | - | |
| Logic Analyzer | - | |
| Data Logger | - | |
| Digital Storage | V | |
| Go/NoGo Output | - | |
| Interface | RS-232C | |
| SVGA Output | - | |
| Buzzer Alarm | - | |
| PictBridge Compatible | - | |
| Battery Power Operation | - | |
| LED Indicators | - | |
| Z-Axis Input | V | |
| LabView Driver | - | |
| Power Source | AC 100/120/230V | |
