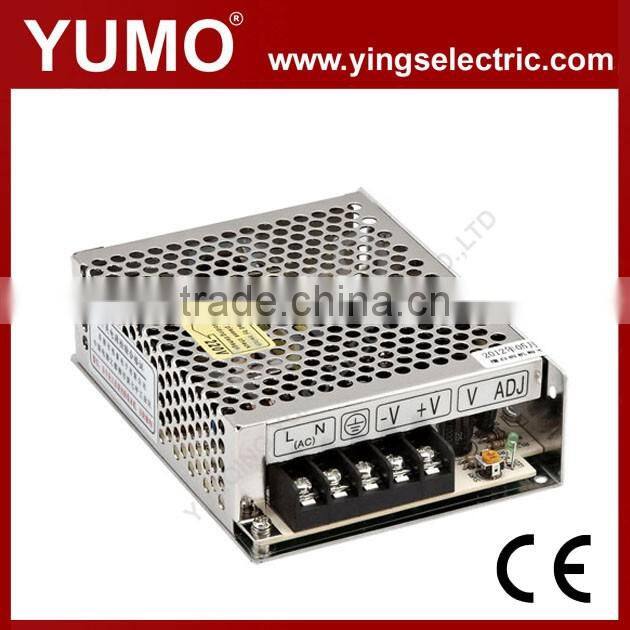

YUMO S-35 5-34V 35W Single Output High Efficiency Power Supply Switching Power Supply

Yueqing Yings Import & Export Co., Ltd.
YUMO S-35 5-34V 35W Single Output High Efficiency Power Supply Switching Power Supply thumbnail-1
YUMO S-35 5-34V 35W Single Output High Efficiency Power Supply Switching Power Supply photo-1
US$ 7.67 - 9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
S-35
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YUMO
Model Number S-35
Output Power Other, 32-36W
Output Type Single
Input Voltage Other, 85-267VAC
Output Voltage 5-34V
Output Frequency 37KHz
Output Current 1.5-7A

YUMO S-35 5-34V 35W Single output High efficiency power supply Switching Power Supply



Product Description



Features:
High efficiency, high reliability and low cost
Switch input voltage range choice
100% full load and machine test
Protection characteristics: short circuit/overload
Air cooling
Working frequency 37 KHz
One year warranty

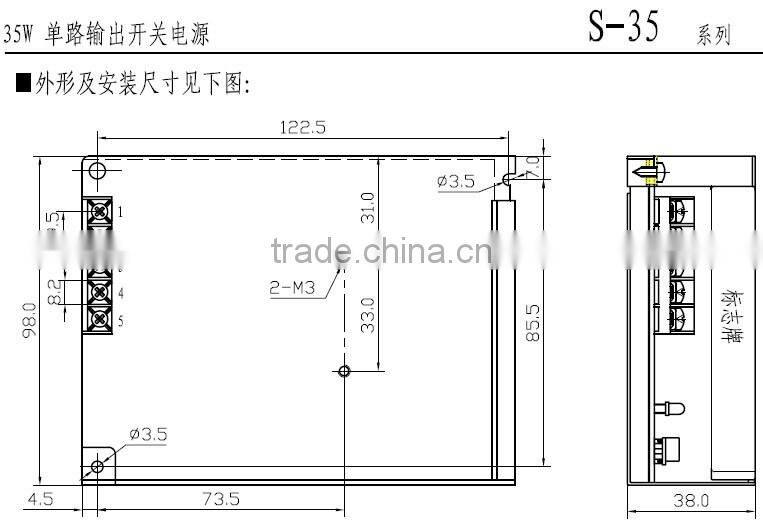

Size: 129*98*38mm (L * W * H)



Model

S-35-5

S-35-9

S-35-12

S-35-15

S-35-24

OUTPUT

Dc output voltage

5V

9V

12V

15V

24V

Output voltage tolerance

±2%

±1%

±1%

±1%

±1%

Rated output current

7A

3.6A

3A

2.4A

1.5A

Output current range

0-7A

0-3.6A

0-3A

0-2.4A

0-1.5A

Output power

35W

32.4W

36W

36W

36W

Ripple and the noise

75mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

Dc voltage adjustable scope

+10,-5%

±10%

±10%

±10%

±10%

Start, rise, keep time

200ms,100ms,30ms Loaded with

INPUT

Input voltage range

85~132 VAC/170~264VAC 47~63 Hz; 240~370VDC

Exchange input current

0.8 A/115 V 0.45A/ 230 V

efficiency

70%

72%

76%

78%

78%

Impulse current

18A/115V 36A/230V

Leakage current

<2mA/240VAC

PROTECTION

Overload protection

110%~160%

Protection way: current limiting, automatic recovery

ENVIRONMENT

Working temperature, humidity

-10℃~+60℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis

SAFETY

Compression sex

Between input and output
:1.5KVAC Input and to
:1.5KVAC Output and to
:0.5KVAC

Insulation resistance

Between the input and output, the input and output, and the earth
: 100M Ohms/500VDC

STANDARD

Safety standards

Accord with
UL1012

EMC standards

Design refer to FCC Part15 J Conduction Class B

OTHERS

weight

0.41Kg

packaging

45pcs/18.8Kg/1.22CUFT

NOTE

1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

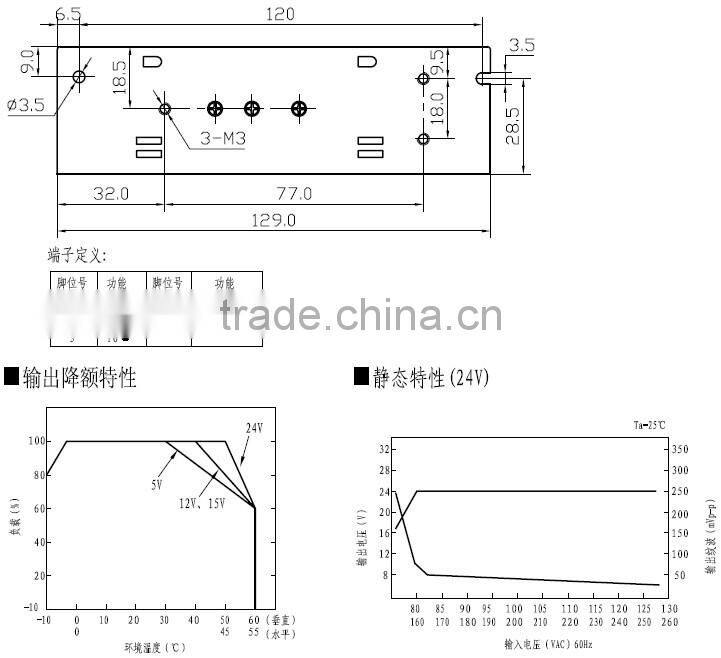

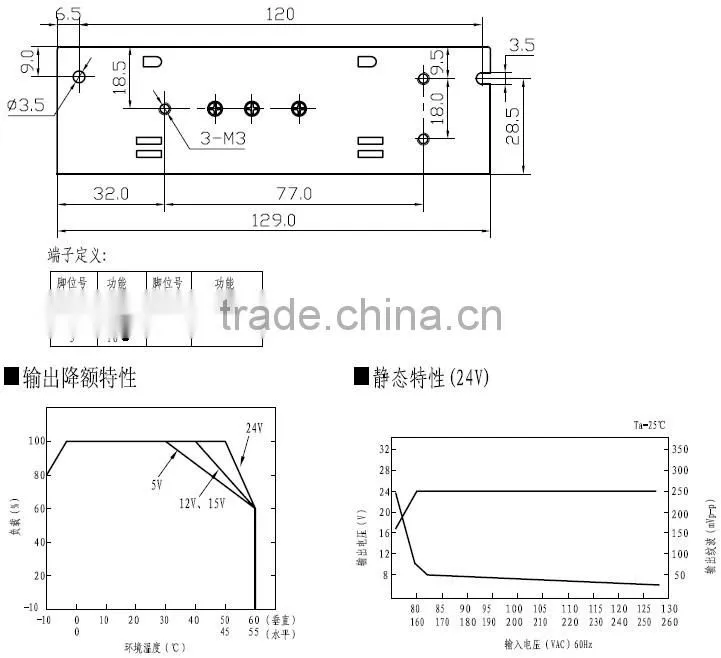

4. Specific output current see output drop forehead curve.
