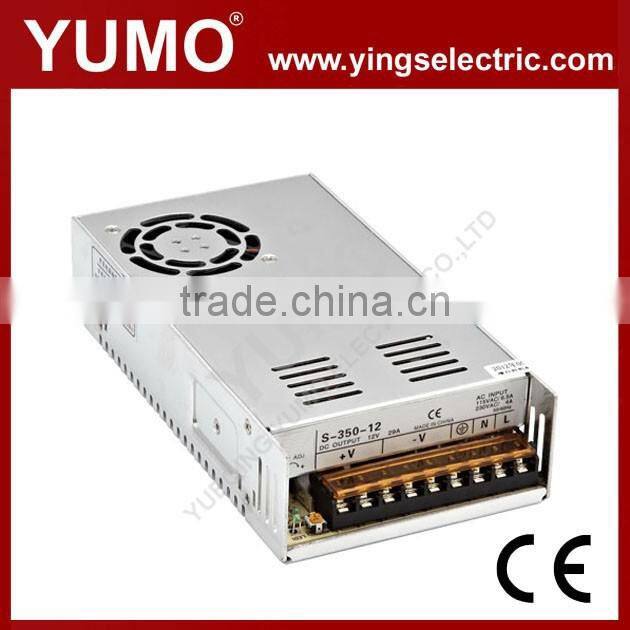

YUMO S-300 300W 5/12/48V Single output High efficiency power supply Switching Power Supply
Specifications:
300w dc-dc power supply
1.RoHS CE approved
2.High quality
3.low price
4.2 years warranty
General Features:
Model Specification | S-300-5 | S-300 -12 | S-300 -24 | S-300 -48 |
DC output | 5V 60A | 12V 25A | 24V 12.5A | 48V 6A |
Wave and noise | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Efficiency | 76% | 83% | 85% | 86% |
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
AC input voltage range | 85~132VAC/170~264VAC Selected by switch 47~63Hz,240~370VDC | |||
AC input voltage range | Cold-start current 18A/115V 36A/230V | |||
OverLoad protection | 105%~135% hiccup mode,auto-recovery | |||
OverLoad protection | ||||
Setup,rise,hold up time | 200ms 50ms 20ms | |||
Withstand voltage | I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv 1minute | |||
Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ | |||
Working temperature | -10°C~+50°C | |||
Safety standards | Design refer to GB4943,UL60950,EN60950 | |||
EMC standards | Design refer to GB9254,EN55022 classB | |||
Weight | 2.19 kg | |||
