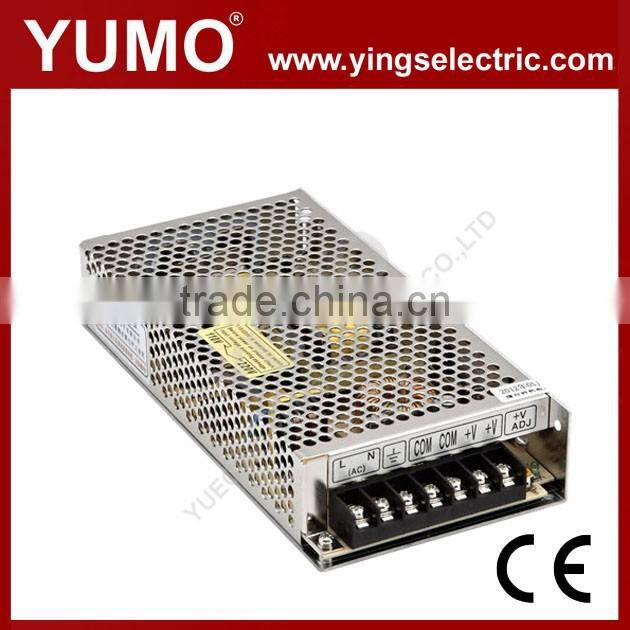

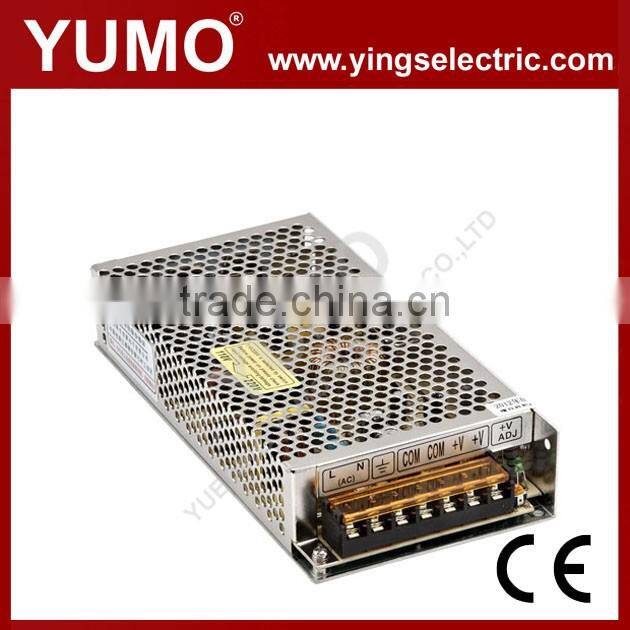

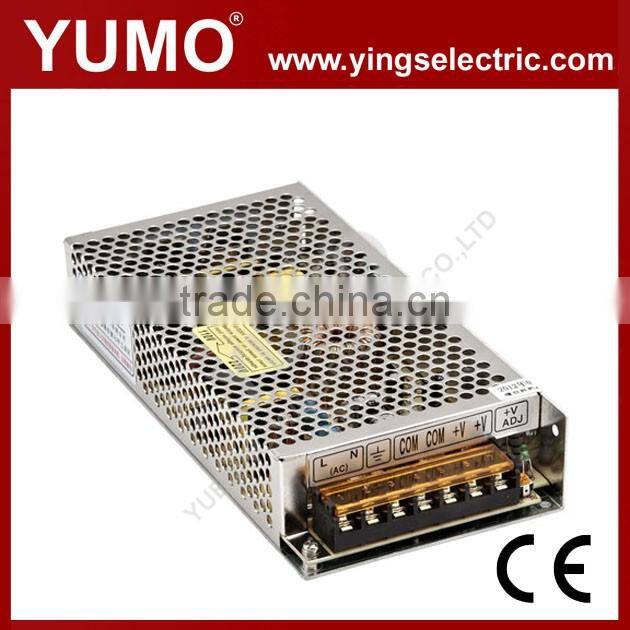

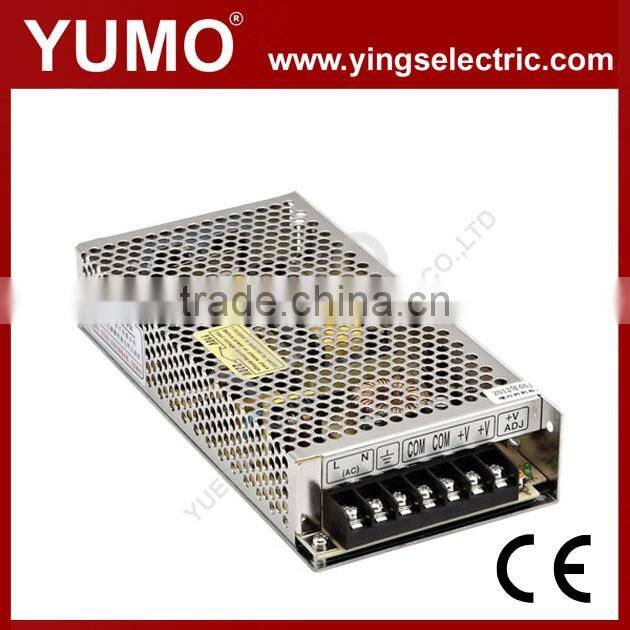

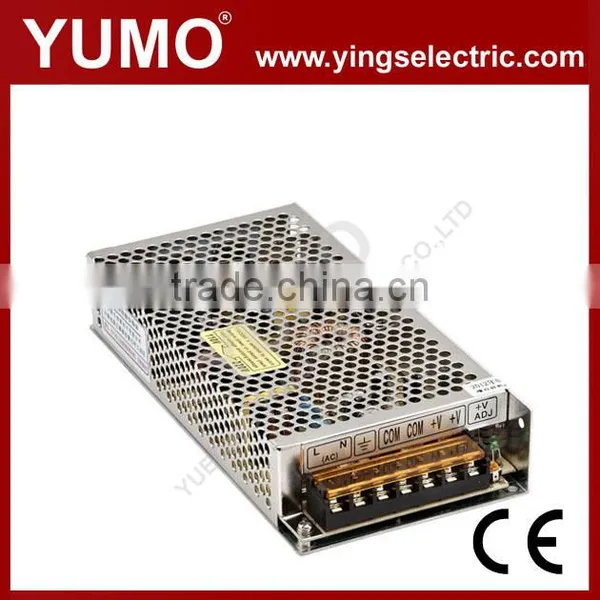

YUMO S-145 145W 5/12/48V Single output High efficiency power supply Switching Power Supply
| |||||||||
model | S-145-5 | S-145-7.5 | S-145-12 | S-145-15 | S-145-24 | S-145-48 | |||
output | Dc output voltage | 5V | 7.5V | 12V | 15V | 24V | 48V | ||
Output voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |||
Rated output current | 25A | 18A | 12A | 9.6A | 6A | 3A | |||
Output current range | 0-25A | 0-18A | 0-12A | 0-9.6A | 0-6A | 0-3A | |||
Output power | 125W | 135W | 144W | 144W | 144W | 144W | |||
Ripple and the noise | 100mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |||
Dc voltage adjustable scope | ±10% | -20%,+10% | -12%,+10% | -12%,+10% | -12%,+16% | -10%,+15% | |||
Start, rise, keep time | 100ms,50ms,20ms Loaded with | ||||||||
input | Input voltage range | 88~132 VAC/176~264VAC 47~63 Hz; | |||||||
Exchange input current | 3.2A/115 V 1.6A/ 230 V | ||||||||
efficiency | 78% | 80.5% | 80.5% | 81% | 83.5% | 82% | |||
Impulse current | Cold start current | ||||||||
Leakage current | <3.5 mA/240VAC | ||||||||
Protection characteristics | Overload protection | 115%~165% | |||||||
Protection way: cut output, restart | |||||||||
Overvoltage protection | 115%~135% | ||||||||
Protection way: cut output, restart | |||||||||
environment | Working temperature, humidity | -10℃~+60℃;20%~90 %RH | |||||||
Keep temperature, humidity | -20℃~+85℃;10%~95 %RH | ||||||||
Vibrate resistance | 10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis | ||||||||
security | Compression sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC | |||||||
Insulation resistance | Between the input and output, the input and output, and ground: | ||||||||
standard | Safety standards | Accord with | |||||||
EMC standard | Accord with | ||||||||
other | weight | 0.71Kg | |||||||
packaging | 30pcs/22kg/1.22CUFT | ||||||||
note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. Specific output current see output drop forehead curve. | ||||||||
