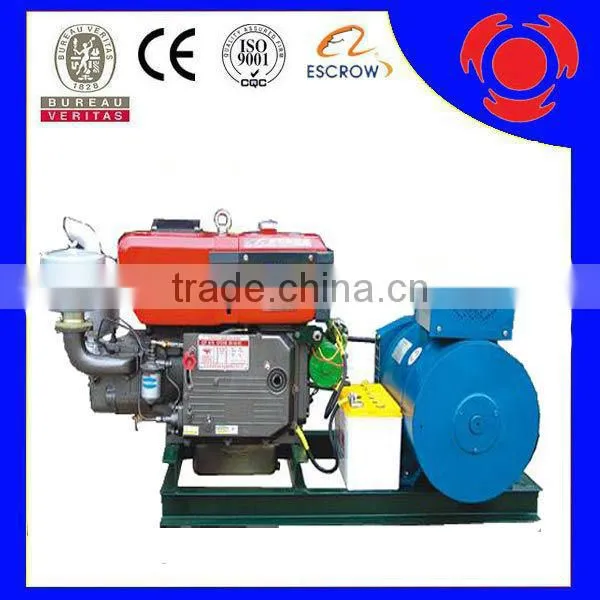

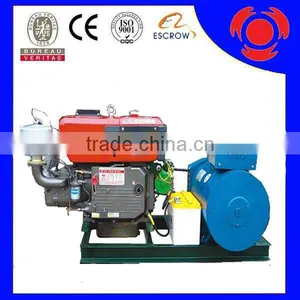

Help CenterSmall Type Diesel Gensets 15kw ChangChai Diesel Generator With S1115 Engine
Related Products
-
Weichai Ricardo 125 KVA 100KW Diesel Generator SetUS$ 1,000 - 10,000MOQ: 1 Set -
Weichai Styre 250KVA/200KW Diesel Generator SetUS$ 1,000 - 10,000MOQ: 1 Set
-
20KW-500KW Diesel Generator Set With CE/ISO Quality CertificateUS$ 1,000 - 10,000MOQ: 1 Set
-
Chinese Best Quality Generator, Diesel Engine With Stamford Original AlternatorUS$ 1,000 - 10,000MOQ: 1 Set
-
Weichai Diesel Generator 62.5KVA/50KWUS$ 1,000 - 10,000MOQ: 1 Set
Technical Specifications | ||
Diesel Generator Set | Model No. | HT15GF |
Rated output(KW/KVA) | 12/15 | |
Standby output(KW/KVA) | 15/18.75 | |
Size(mm) | 1300*700*900 | |
Weight(KG) | 460 | |
Diesel Engine | Model No. | S1115 |
Engine characters | Straight line, watecooling, four stroke,direct injection | |
Rated output(KW/KVA) | 16.2/20.25 | |
Standby output(KW/KVA) | 17.82/22.28 | |
Cylinder NO. | 1 | |
Aspiration | Natural aspiration | |
Bore(mm)*Stroke(mm) | 115/115 | |
Compression ratio | 17:1 | |
Displacement(L) | 1.194 | |
Start type | DC 12V electric start | |
Rated Speed(rpm) | 1500 | |
Rated fuel consumption(L/h) | ≤244.8(g/kw.h) | |
Alternator | Model No. | STC-15 |
Continuous output(KW/KVA) | 15/18.7 | |
Voltage Control | AVR | |
Excitation type | Brush/Brushless | |
Insulation class | H | |
Brand | Stanford/Stanford copy | |
Voltage(V) | 230/400 | |
Current(A) | 27 | |
Frequency(HZ) | 50HZ | |
Power Factor | 0.8 | |
Phase | 3 phases, 4 wires | |
