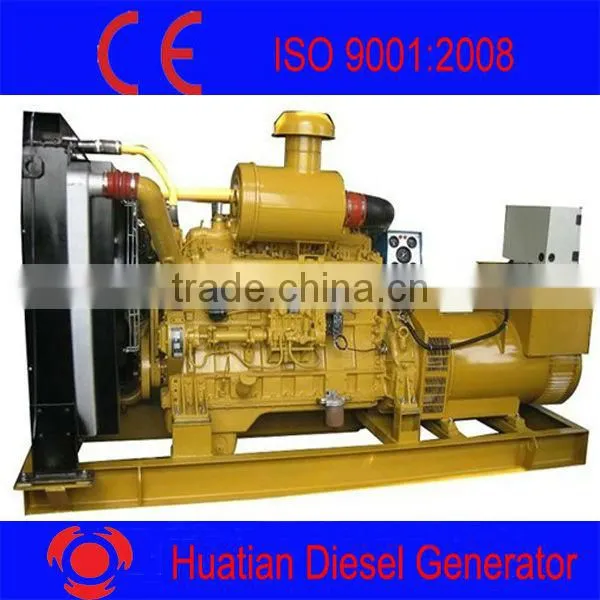

Weichai Styre 250KVA Diesel Generator Set
-------------------Diesel Generator Main Specification----------------
| Genset Technical Data | |||||||||
| Gensets model | 200GF | ||||||||
| Prime power | 200KW/250kVA | ||||||||
| Rated speed | 1500RPM | ||||||||
| Output frequency | 50Hz | ||||||||
| Power Factor | 0.8 | ||||||||
| Phase | 3 | ||||||||
| Rated voltage | 400/230V | ||||||||
| Dimensions(mm) (L×W×H) | 3000*1080*1700 | ||||||||
| Genset Weight(kg) | 2350 | ||||||||
| Prime Power: | |||||||||
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12. | |||||||||
| Standby power: | |||||||||
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted. | |||||||||
| Rated voltage : | |||||||||
| Available with customer requirements. | |||||||||
| Specification of diesel engine | |||||||||
| Engine brand | Shangchai | ||||||||
| Engine model | G128ZLD | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | 6 Vertical in-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbo,Water/Air Cooling | ||||||||
| Fuel System | Direct Injection | ||||||||
| Bore×Stroke (mm×mm) | 135 x 150 | ||||||||
| Displacement (Liter) | 12.9 | ||||||||
| Compression Ratio | 17.0:1 | ||||||||
| Speed Governor | Mechanical | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Speed Stability (%) | ≤1% | ||||||||
| Total lubrication system capacity (L) | 28.7 | ||||||||
| Fuel Consumption at 100% Load (g/kwh) | 215 | ||||||||
| Starting Method | DC24V Electrical starting | ||||||||
| Specification of alternator | |||||||||
| Alternator brand | Marathon | ||||||||
| Alternator model | MP-200-4 | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP21 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
-------------------------------Features & Benefits---------------------------
-------------------------Soundproof & Packaging-------------------------
----------------------------------Control System------------------------------
Export Standard Plywood case
Manager: Alex Zhang
Mobile: 0086-15169542396
Whatsapp: 0086-15169542396
Viber: 0086-15169542396
Skype: alex_enginegenset
1. Weifang Huatian Diesel Engine Co., Ltd is specialized in diesel engines,gas engines, diesel generators, gas generators, diesel water pump sets and Weichai spare parts.
2. HUATIAN Brand Diesel Engines cover power from 20hp-400hp,,with 2 cylinders,4 cylinders and 6 cylinders.
3. Generator sets are chosed Cummins, Perkins, Deutz, Steyr,Ricardo diesel engines, matching with Stamford, Marathon, Leroy Somer brand alternators, from 10kva to 1000kva.
4. Weichai diesel engines and generators spare parts are all genius. All accessories have been in stock for 1 to 2 days goods deliveried.
