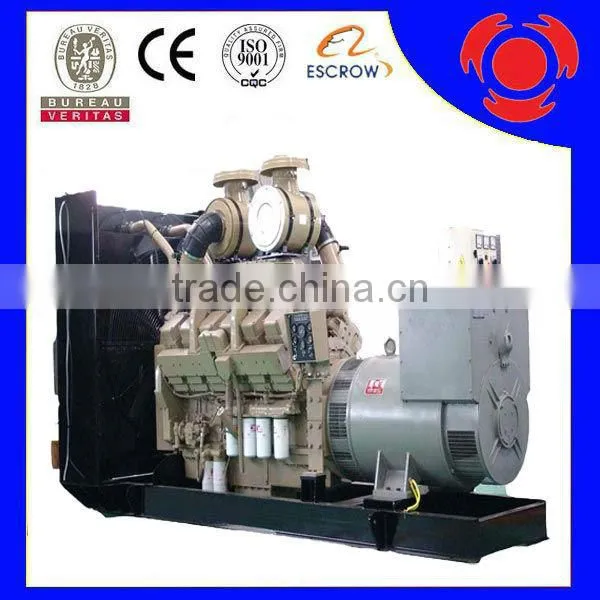

20KW-500KW Diesel Generator Set With CE/ISO Quality Certificate

Name: 20KW-500KW Diesel Generator Set With CE/ISO Quality Certificate
Brand: Weichai Huatian
SKU: 141184400
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Weichai Huatian

Model Number:

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Weichai Huatian

Model Number HT

Output Type AC Three Phase

Speed 1500/1800 RPM

Frequency 50/60 Hz

Rated Power 20-50KW

Rated Voltage 230/400V or 120/240V

Rated Current 36-90A

20KW-500KW Diesel Generator Set with CE/ISO Quality Certificate

Product Description

GENERATOR SET
Genset model	GF-150
Prime power (KW/KVA)	150/188
Standby power (KW/KVA)	165/206
Frequency & voltage	50HZ, 400V
No. of Phase	3
Genset type	Soundproof/silent type
Reference Dimension & Weight (W*H, mm)/KGS	350011001800; 2100kgs
DIESEL ENGINE
Engine brand & Model	CUMMINS, 6CTAA8.3-G2
Rated output	183KW
Rated Speed	1500RPM
Engine Type	Vertical in-line, four stroke
No. of cylinder	6
Bore*stroke	114*135mm
Aspiration method	Turbocharged after air-air cooled
Governor	Electrical
Starting method	Electric starting
Cooling method	Forced water cooled
Displacement	8.3L
Compression ratio	16.5:1
Fuel consumption	205g/kw.h
Speed stability	≤5%
Total lubrication system capacity	24L
Coolant capacity(without radiator)	12.3L
Starter motor	DC24V
Alternator	AC24V
ALTERNATOR
Alternator brand & model	Stamford/China reputed brand
Type	Brushless & self-excited
No. of phase	3
Voltage	400V
Frequency	50HZ
Power Factor	0.8
Insulation Grade	H
Protection Grade	IP22/23
Altitude	≤1000m
