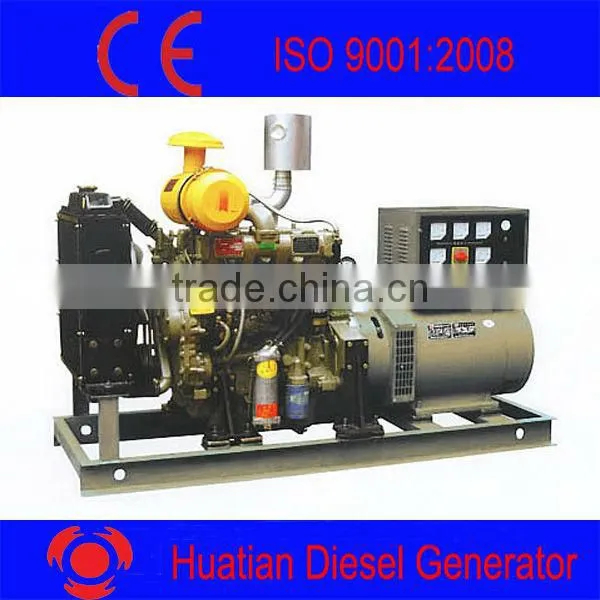

Weichai Diesel Generator 62.5KVA/50KW

Name: Weichai Diesel Generator 62.5KVA/50KW
Brand: Huatian
SKU: 141184404
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Huatian

Model Number:

50GF

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Huatian

Model Number 50GF

Output Type AC Three Phase

Speed 1500/1800 r/min

Frequency 50/60 Hz

Rated Power 50kw

Rated Voltage 400V

Rated Current 90.2A

Weichai Diesel Generator 62.5KVA/50KW

Product Description

-------------------Diesel Generator Main Specification----------------

Specification of genset
Gensets model	50GF
Prime power(KW)	50
Rated voltage(V)	400 / 230
Rated current(A)	90
Rated frequency(HZ)	50
Rated Speed (rpm)	1500
Power Factor	0.8(lagging)
Dimensions(mm) (L×W×H)	1900x800x1400	open type
Genset Weight(kg)	700
Specification of diesel engine
Engine brand	Weifang Huatian
Engine model	R4105ZD
Air Intake System	Turbocharged
Fuel System	Direct Injection
Cycle	Four stroke
Cylinder Arrangement	4 in line
Displacement	4.33L
Bore×Stroke (mm×mm)	105 x 125
Rated RPM	1500rpm
Cooling System	Forced Water Cooling Cycle
Governor Type	Mechanical
Fuel Consumption at 100% Load (g/kwh)	238
Starting Method	DC24V electrical starting
Specification of alternator
Alternator brand	Chinese Stamford
Excitation	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Number of Phase	3
Connecting Type	3 Phase and 4 Wires
Number of Bearing	1
Power Factor	0.8
Protection Grade	IP22
Altitude	≤1000m
Insulation Class, Temperature Rise	H
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%
Specification of control Panel
The control panel is common integrated control panel, with the display of voltage,current, frequency, water temperature, oil pressure.
