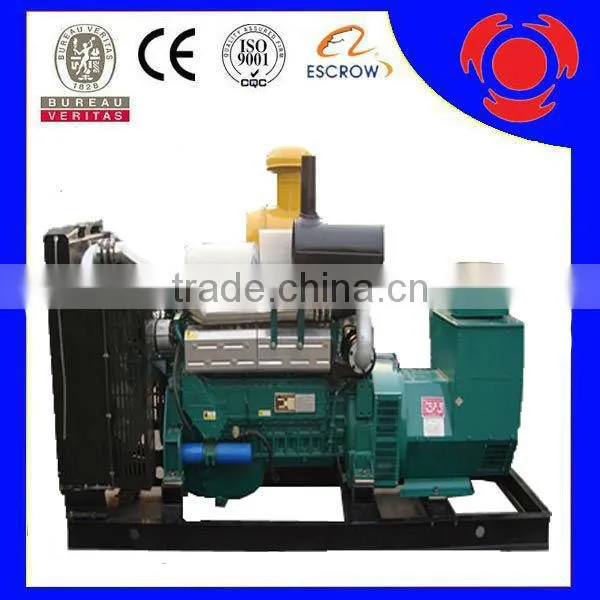

Weichai 200kw Diesel Generator With Ricardo 6126ZLD Engine

Name: Weichai 200kw Diesel Generator With Ricardo 6126ZLD Engine
Brand: Weichai Huatian
SKU: 141184392
Availability: InStock

Weifang Huatian Diesel Engine Co., Ltd.

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Weichai Huatian

Model Number:

HT200GF

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Weichai Huatian

Model Number HT200GF

Output Type AC Three Phase

Speed 1500rpm

Frequency 50Hz

Rated Power 150kw

Rated Voltage 220/400V

Rated Current 360A

Weichai 200kw Diesel Generator With Ricardo 6126ZLD Engine

Product Description

Technical Specifications
Diesel Generator Set	Model No.	HT200GF
	Rated output(KW/KVA)	160/200
	Standby output(KW/KVA)	200/250
	Size(mm)	26008601800
	Weight(KG)	2200
Diesel Engine	Model No.	6126ZLD
	Engine characters	Wataer-cooled,inline,direct injection,4-stroke
	Rated output(KW/KVA)	225/281
	Standby power(KW/KVA)	247/309
	Cylinder NO.	6
	Aspiration	Turbocharged
	Bore(mm)*Stroke(mm)	126*135
	Compression ratio	16:1
	Displacement(L)	9.726
	Start type	DC 24 electric start
	Rated speed(rpm)	1500
	Rated fuel consumption(L/h)	≤218g/kw.h
Alternator	Model No.	TZH-200
	Continuous output(KW/KVA)	200/250
	Voltage Control	AVR
	Excitation type	Brush/Brushless
	Insulation class	H
	Brand	Stanford/Stanford copy
	Voltage(V)	230/400
	Current(A)	360
	Frequency(HZ)	50
	Power factor	0.8
	Phase	3-phase,4-wire
