Centrifugal Paper Processing Stock Waste Pulp Slurry Pump
Summarize about Centrifugal Paper Processing Stock Waste Pulp Slurry Pump
AJY high efficient energy saving paper stock pump, with advantage from broad and domestic, we take advanced design theory to develop new type pump, hydraulic design with theory "relative suction, relative obstruction". The stock pump wet parts hydraulic performance is compliance with pump flow law, then reduce the erosion and wear of wet parts by liquid.
Greatly improve the pump efficiency and service life.
Centrifugal Paper Processing Stock Waste Pulp Slurry Pump advantages
1. High efficiency, Energy saving: operation efficiency is 3-10% higher than ordinary paper stock pump, energy saving to 15-30%
2. Good NPSH, Long service: actual using life is twice-third time than ordinary pulp pump.
3. High concentrations, Non-clogging: transfer pulp concentration max to 6%.
4. Reasonable structure, Easy maintenance: Pump head is front, rear casing structure, when maintenance there is no need to remove pipe line, only remove the electric motor backwards, then could disassemble and repair the stock pump.
Design duty and features about Centrifugal Paper Processing Stock Waste Pulp Slurry Pump
Speed n: 2900rpm and 1450rpm
Inlet diameter: 50 to 300mm
Capacity Q: 6.3 to 400m3/h
Head H: 5 to 125m
Features about Centrifugal Paper Processing Stock Waste Pulp Slurry Pump
20 years in producing centrifugal stock pumps
Independent Design
advanced technology from Australia, Canada, America
OEM available
Specialized Test Equipment
Anti-rust treatment casting
Supply reasonable suggestion for choosing pumps

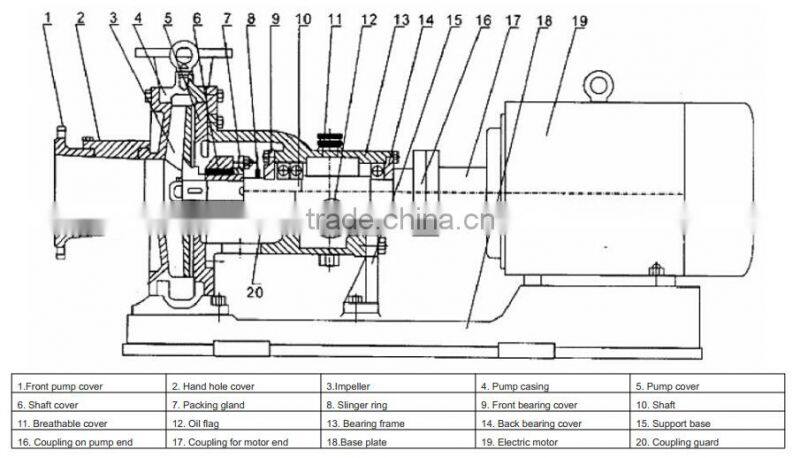

Construction drawing of Centrifugal Paper Processing Stock Waste Pulp Slurry Pump
Performance details about Centrifugal Paper Processing Stock Waste Pulp Slurry Pump
| Model | Capacity | Head | Speed | Efficiency | Motor power | Suction head | Concentration |
| m³/h | m | r/min | % | KW | m | % | |
| 80-Z-6 | 32-50 | 7 to 5 | 1450 | 60 | 2.2 | 2.5 | 4 to 6 |
| 80-Z-12 | 35-60 | 14 to 9 | 1450 | 60 | 4 | 2.5 | 4 to 6 |
| 80-Z-15 | 40-65 | 16 to 12 | 1450 | 60 | 5.5 | 2.5 | 4 to 6 |
| 80-Z-20 | 35-65 | 22-18 | 1450 | 60 | 5.5 | 6 | 4 to 6 |
| 80-Z-25 | 40-75 | 26.5-22 | 1450 | 60 | 7.5 | 6 | 4 to 6 |
| 80-Z-30 | 55-75 | 32-21 | 1450 | 60 | 11 | 6 | 4 to 6 |
| 80-Z-35 | 56-76 | 36-25 | 1450 | 60 | 15 | 6 | 4 to 6 |
| 80-Z-40 | 60-80 | 41-32 | 1450 | 60 | 15 | 6 | 4 to 6 |
| 100-Z-18 | 53-134 | 18.3-14 | 1450 | 60 | 7.5 | 7 | 4 to 6 |
| 100-Z-20 | 60-150 | 23-18 | 1450 | 60 | 11 | 7 | 4 to 6 |
| 100-Z-20 | 50-110 | 23-18 | 1450 | 60 | 7.5 | 6.7 | 4 to 6 |
| 100-Z-25 | 60-120 | 28-24 | 1450 | 60 | 11 | 6.7 | 4 to 6 |

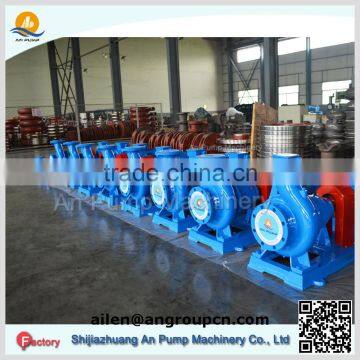

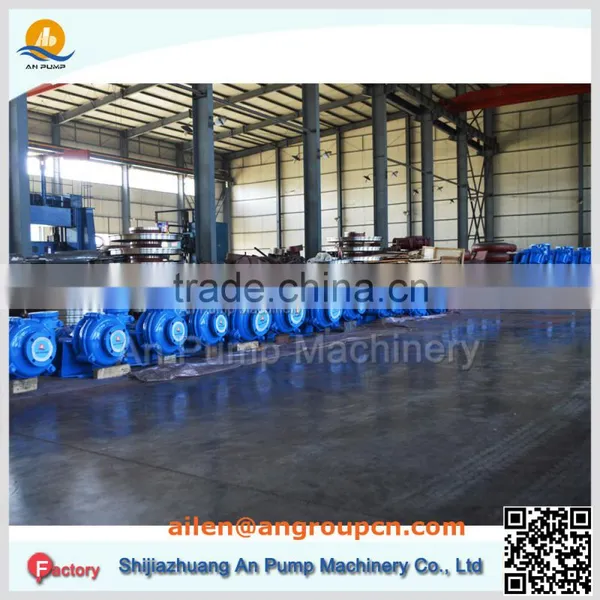

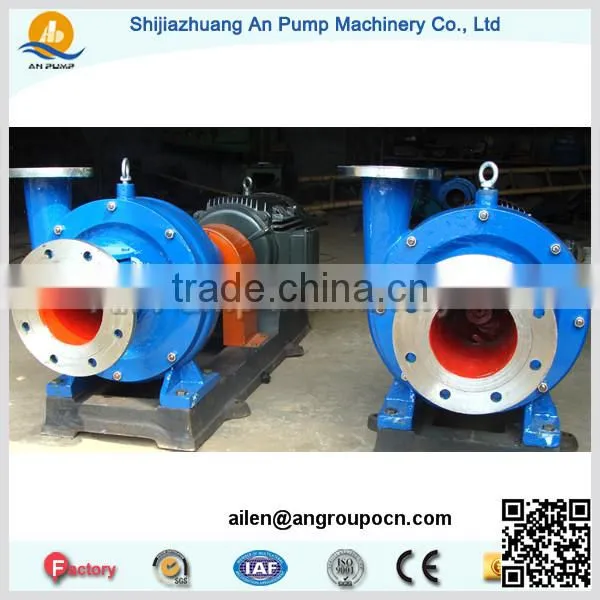

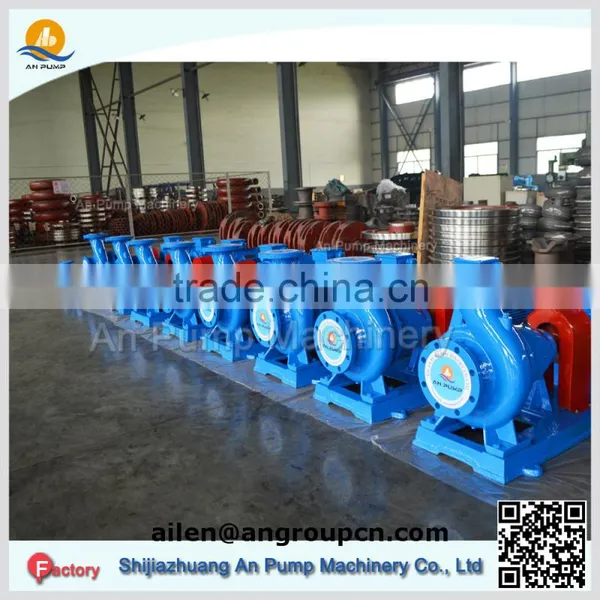

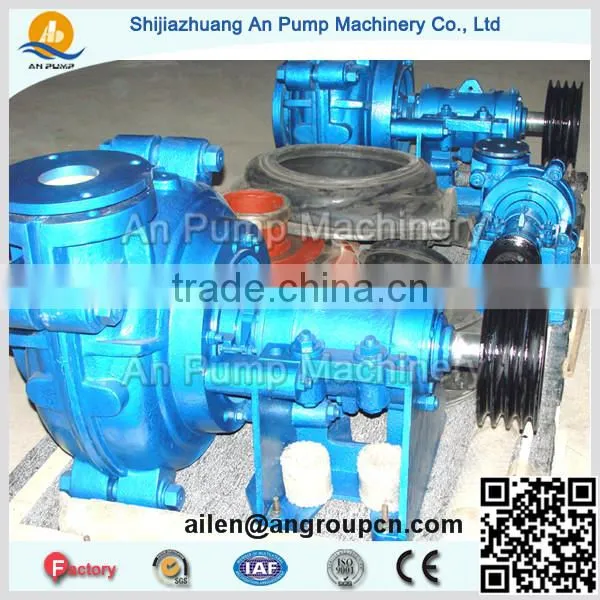

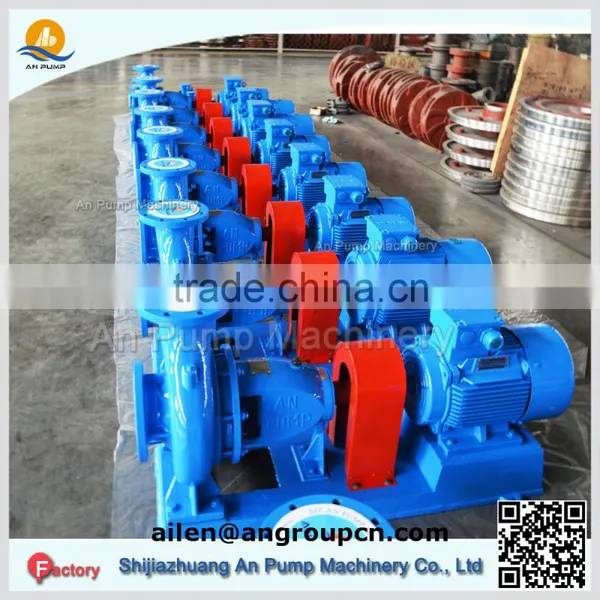

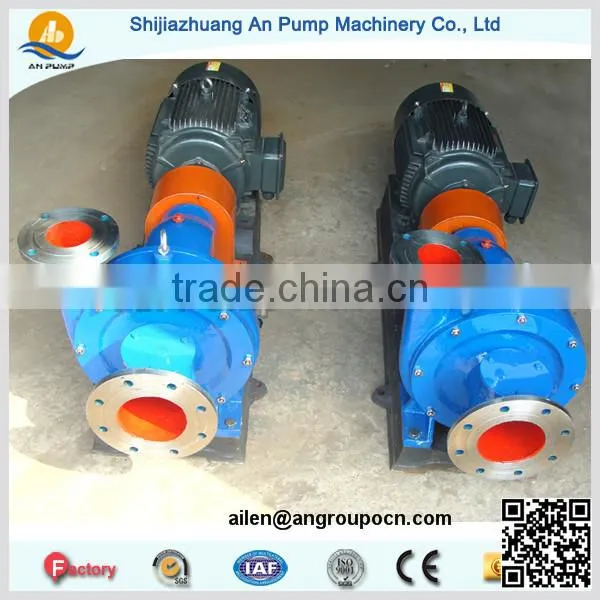

Pictures about Centrifugal Paper Processing Stock Waste Pulp Slurry Pump
Tips for Centrifugal Paper Processing Stock Waste Pulp Slurry Pump installation
Please take note as below when install the pump:
1. The preformed hole on the foundation should be poured as the pump installation drawing.
2. The installation level should meet the demand of the allowed vacuum suction height. The foundation should be in horizontal and stable condition, to make sure the rotation of the driver machinery same with the pump in the direction.
3. When connect by coupling, must make sure the pump and driver shaft center should be in a straight line.
4. If belt connection, the shaft center should be in parallel.
5. The stock pump suction pipe should be sealed well, and try to less the quantity of the elbow and check valve. When fill water, exhausted the air. It should be no any air when operate. We need to keep the suction pipe slopes up slightly, and then connect with the pump inlet.
Pakcaging and shipping about Centrifugal Paper Processing Stock Waste Pulp Slurry Pump
Certifications about Centrifugal Paper Processing Stock Waste Pulp Slurry Pump

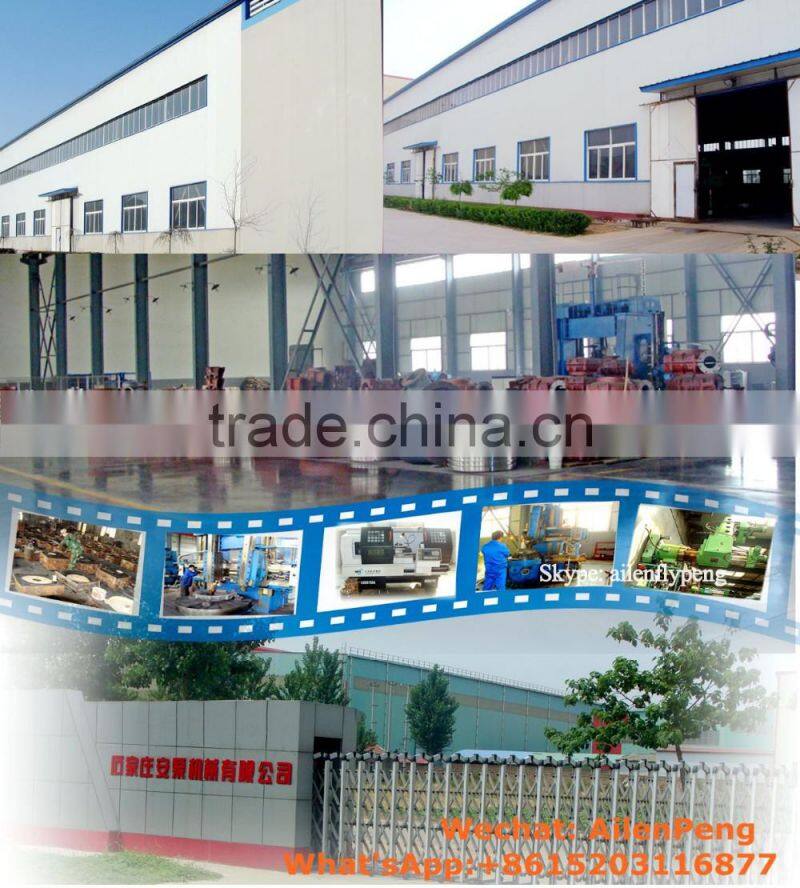

======= An Pump History =======
