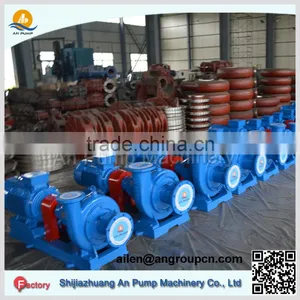

Non-clogging Waste Paper Stock Pulp Pumps
Performance Ranging for Non-clogging Waste Paper Stock Pulp Pumps
a) Flow rate: 80-2250m3/hr
b) Head: 13-80m
c) medium slurrys concentration :less than 6%
d) Work temperature: ≤80°C
Production Overview of Non-clogging Waste Paper Stock Pulp Pumps
Waste Paper Stock Pulp Pump is one kind centrifugal single stage single suction paper plug and chemical sewage,paper pulp pump.It is widely used in such as paper making industry ,water treatment industry ,sugar-making industry,starch industry,soda reuse industry.It can transport less than 6% concentration sewage water or fine slurrys from paper -making industry ,sugar-making and starch industry etc.,and it can also transport the non-abrasion medium in other industries .
Type Materials of Non-clogging Waste Paper Stock Pulp Pumps
Material | Common(G) | Wear resistant(P) | Ultrawear resistant(N) | Stainless steel(F) |
Pump casing | HT200 | QT500-7 | Wear resistant | SS304 |
Pump cover | HT200 | QT500-7 | Wear resistant steel | SS304 |
Impeller | SS304 | Duplex SS | Duplex SS | Duplex SS |
Liner of front and behind | Wear resistant steel | Wear resistant steel | Wear resistant steel | Duplex SS |
Bearing body | HT250 | HT250 | HT250 | HT250 |
Shaft | 3Cr13 | 3Cr13 | 3Cr13 | 3Cr13 |
Shaft sleeve | 2Cr13 | 2Cr13 | 2Cr13 | SS304 |
Application about Non-clogging Waste Paper Stock Pulp Pumps
This pump is suitable for paper-making, starch and sugar making, chemical raw material transporation, industrial sewage water and public road project.
Structure Details about Non-clogging Waste Paper Stock Pulp Pumps
1 This pump is single stage cantilever back-opening type. Esy to maintain, no need to take down the pipeline;
2 Pump inlet and outlet flanges is designed as Maximum working pressure: 16 bar ;

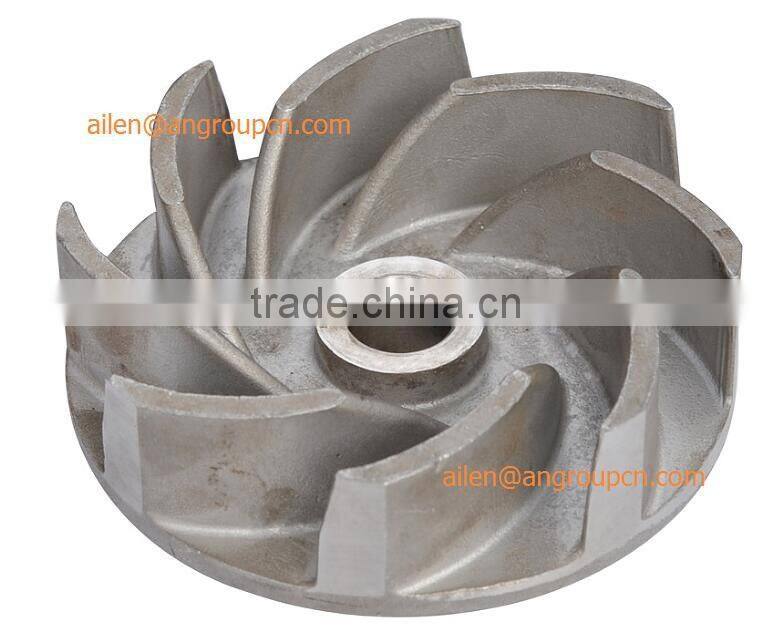

3 Impeller is 3 vanes or 4 vanes semi-type, make wide passage open type can transport max 6% concentration slurrys sewage water can also transport the medium containing some gas;
4 All impeller is Precision Casting and through dynamic balance testing;
5 The gap between the impeller and pump wear plate can be adjusted by the screw bolt on the pump body, so can keep Constant gap size between the impeller and pump wear plate ,so can have higher working efficiency!
6 The shaft seal mainly is single mechanical seal add packings, without cooling water single mechanical seal, and packing seal three type can choosing according to customer needs and practise needs;
7 Impeller fixed use the impeller screw bolts+lock washer type, this type can also avoid the impeller screw bolts fall off or loose when pump shut down .
Constructions of Non-clogging Waste Paper Stock Pulp Pumps
Spare parts about paper stock pulp pumpManufacturing process about Non-clogging Waste Paper Stock Pulp Pumps
Shipping for Non-clogging Waste Paper Stock Pulp Pumps
Pakaging of Non-clogging Waste Paper Stock Pulp Pumps

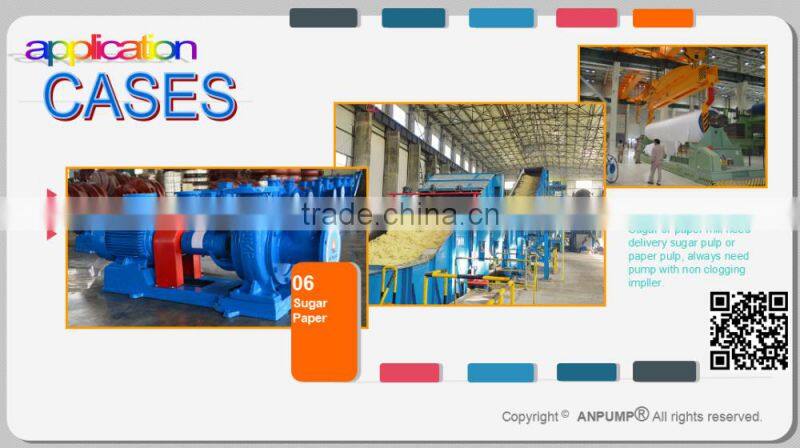

Applications about Non-clogging Waste Paper Stock Pulp Pumps
