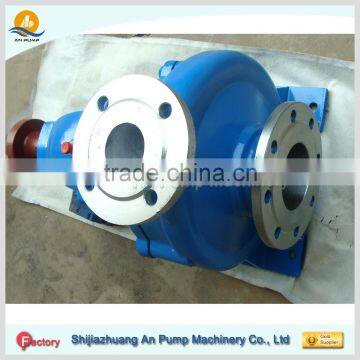

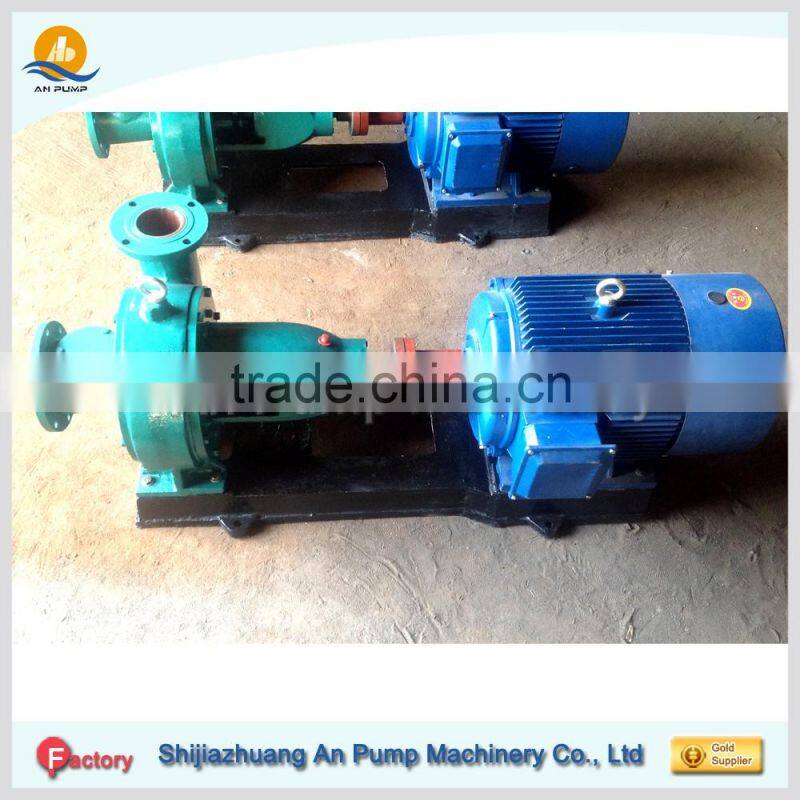

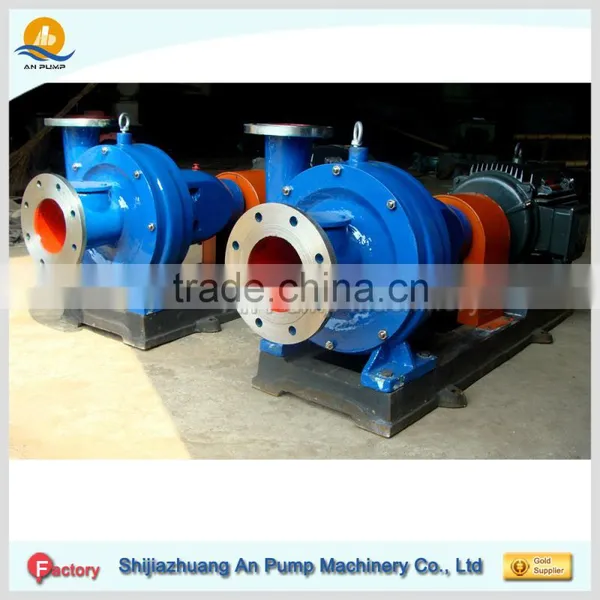

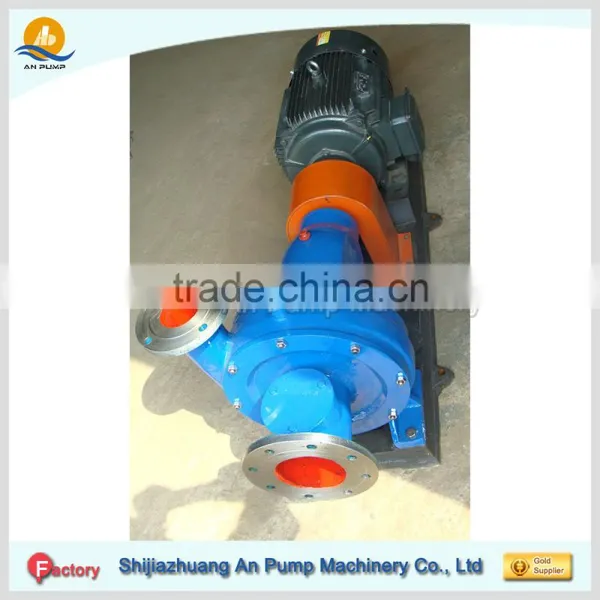

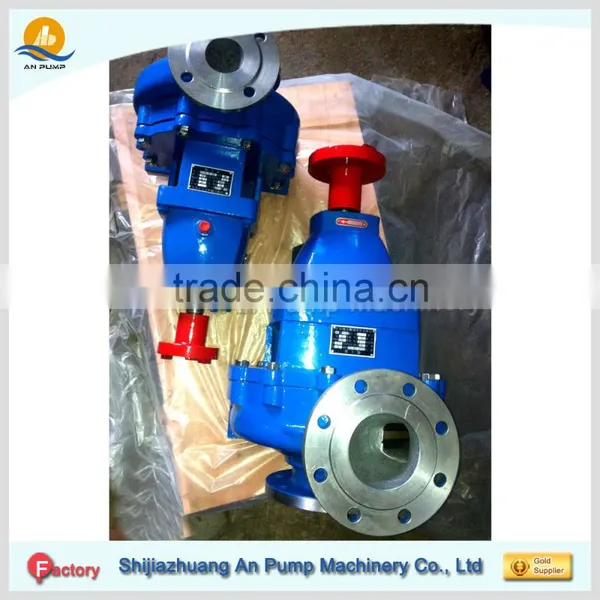

Stainless steel paper pulp pump for paper making plant
Stainless steel paper pulp pump for paper making plant introduction
AJY high efficient energy saving pulp pump, with advantage from broad and domestic, we take advanced design theory to develop new type pump, hydraulic design with theory “relative suction, relative obstruction”. The pump wet parts hydraulic performance is compliance with pump flow law, then reduce the erosion and wear of wet parts by liquid.
Greatly improve the pump efficiency and service life.
Stainless steel paper pulp pump for paper making plant advantages
1. High efficiency, Energy saving: operation efficiency is 3-10% higher than ordinary pulp pump, energy saving to 15-30%
2. Good NPSH, Long service: actual using life is twice-third time than ordinary pulp pump.
3. High concentrations, Non-clogging: transfer pulp concentration max to 6%.
4. Reasonable structure, Easy maintenance: Pump head is front, rear casing structure, when maintenance there is no need to remove pipe line, only remove the electric motor backwards, then could disassemble and repair the pump.
Stainless steel paper pulp pump for paper making plant Model Meaning
AJY50-6FY
AJY: Pulp pump
50: Flow rate(capacity) m3/hr
6: Head(pressure) m
F: Material: stainless steel
Y: Shaft seal type: expeller dynamic seal
Pump Material: Ductile Iron(Q), Cast Steel(G), Resistant steel(N), Stainless Steel(F), Duplex Stainless Steel 316(X)
Pump Seal Type: expeller dynamic seal(Y), Single Mechanical Seal(S), Double Mechanical Seal(D)

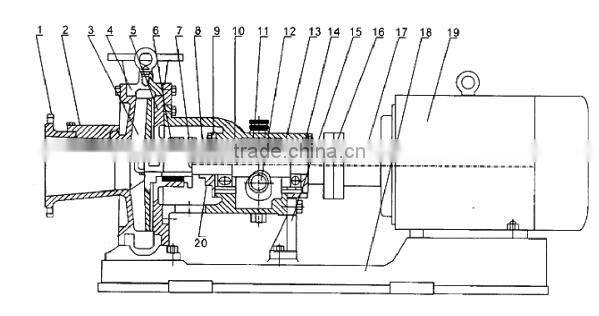

Stainless steel paper pulp pump for paper making plant structure
A.B.C.D.E.F.G.H.M.K.N.P.R.Q.S.T.U.V.W category pulp pump main structure
Grease, oil lubrication structural parts
1.Front pump cover 3.Impeller 4. Pump casing 5. Pump cover 6. Shaft cover
7. Packing gland 8. Slinger ring 9. Front bearing cover 10. Shaft 11. Breathable cover
12. Oil flag 13. Bearing frame 14. Back bearing cover 15. Support base
16. Coupling on pump end 17. Coupling for motor end 18.Base plate 19. Electric motor
20. Couplingguard
Particularly applicable industry
1. Paper Industry: Suitable for transfer paper pulp concentration max to 6%, and liquid cycle transmission during base recovery processing, for lifting and pressing.
2. Sugar Industry: Suitable for transfer syrup max to 4%, and viscosity max 150 mm2/S.
3. Urban Sewage Treatment, Suitable for transfer sewage, waste water, for lifting and pressing
