Tissue Paper Making Machine,Toilet Paper MakingHigh Quality all kinds of papermaking machine for paper manufactory.

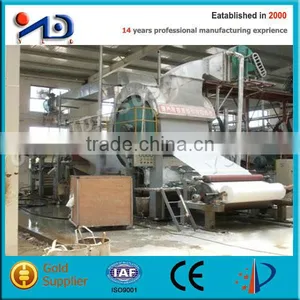

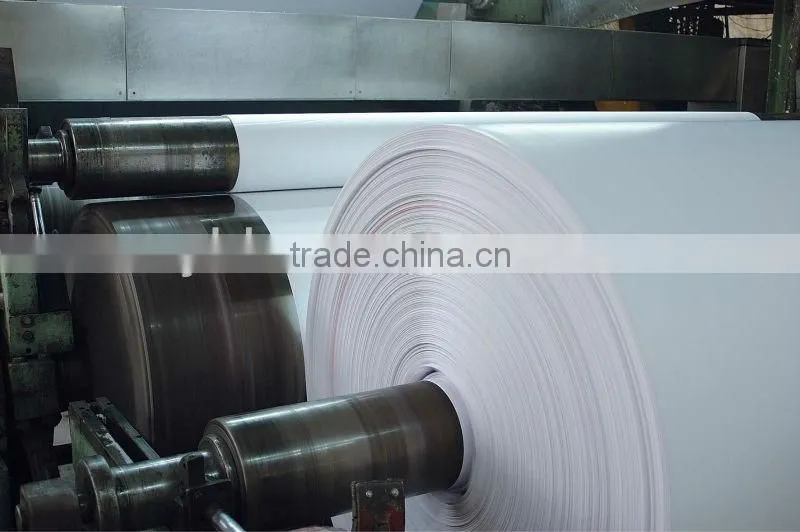

Tissue Paper Making Machine,Toilet Paper Making
Technical parameter(example)
1, production varieties: toilet paper
2, net width: 1880mm
3, work speed: 160-180m/min
4, 13-22 g/m2
5, rotary speed: 200r/min
6, capacity: 4-6 t/d
7, gauge: 2700mm
8, power: 75.7kw
9, kind of drive: sectional drive
 |
|
Main Technical Parameter :
Machine Model |
1092 |
1575 |
1760 |
2200 |
2500 |
2800 |
Width (mm) |
1350 |
1750 |
1900 |
2150 |
2450 |
2750 |
Finished Products Diameter |
Φ 60~150mm (Tightness can be adjustable) |
|||||
Finished Products Inner Diameter |
Φ32~50 mm |
|||||
Jumbo roll diameter (mm) |
Φ 1200 (Other sizes can be ordered) |
|||||
Jumbo Roll Inner Diameter |
3”,76.2 mm (other sizes can be ordered) |
|||||
Perforation distance (mm) |
4 blade,90~160mm;2 blade,180~320mm; |
|||||
Production speed |
160-180 m/min |
|||||
Parameter set |
Touching-screener Multi-menu Man-machine Interface Operation System |
|||||
Programmable controller |
Mitsubishi PLC program |
|||||
Mechanical driving |
Driven by stepless speed-regulator to guarantee the precise length of final products. |
|||||
Embossment unit |
Single embossment, Double embossment, Steel to steel embossment; |
|||||
Embossment down roller |
Felt roller, paper roller, rubber roller |
|||||
Jumbo roll stand |
1-3 plies (ply quantity can be ordered) |
|||||
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves) |
|||||
Power |
5.5-15KW (Frequency speed-regulate ) |
|||||
Overall size (m)(L×W×H) |
7 X (2.3-4) X 1.8 |
|||||
Weight of equipment |
4000~8000kg (approximately) |
|||||
Chosen items (Should be ordered separately) | ||||||
Embossment |
Single embossment, double embossment, steel to steel embossment |
|||||
Embossment down roller |
Felt roller, paper roller, rubber roller |
|||||
Jumbo roll stand |
1-3 plies |
|||||
Jumbo roll stand driving |
Driven by variator |
|||||
Rewinding unit |
Non-core unit |
|||||

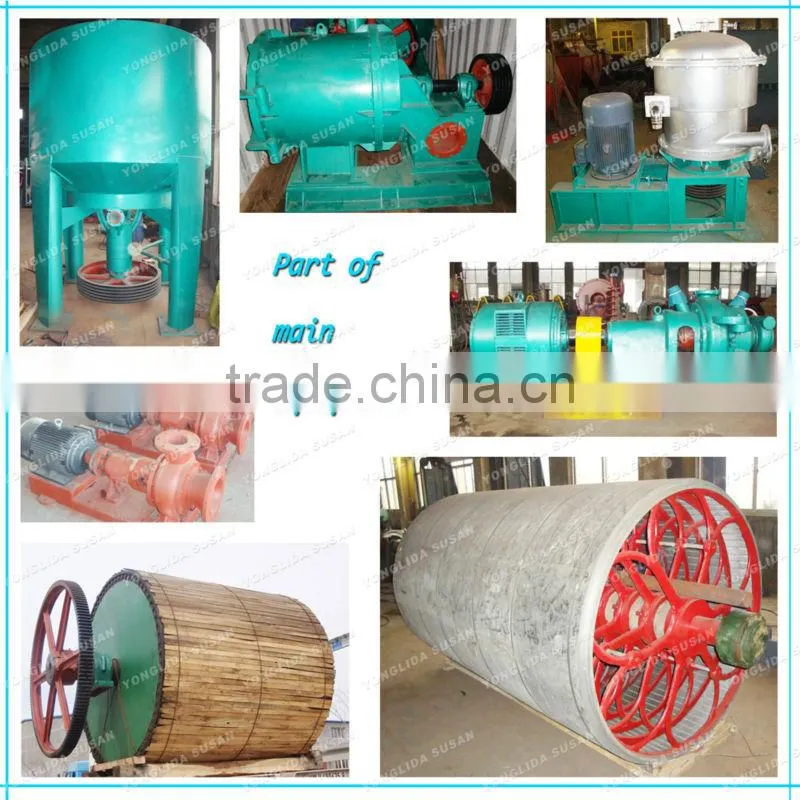

What we can provide
Paper making process:
--Pulping System
--Screening System
--Conveying and Bale Breaking System
--Pulp Refining Equipment
--Impurity Cleaning Equipment
--Stock Agitator Conveying Equipment
--Pulp Thickening Equipment
Paper Making Production Line (paper MPL):
--All kinds of raw paper pulp MPL
--Fluting paper pulp MPL
--Automatic corrugated box/paper MPL
--Coated White Board paper MPL
--Honeycomb paper MPL
--Testliner paper MPL
--Paper plate MPL
--Tissue paper MPL
--Toilet paper MPL
--Kraft paper MPL
--Boxboard paper MPL
--Paper coating MPL
--Napkin paper MPL
--OCC line
|
|
|
|
|
|

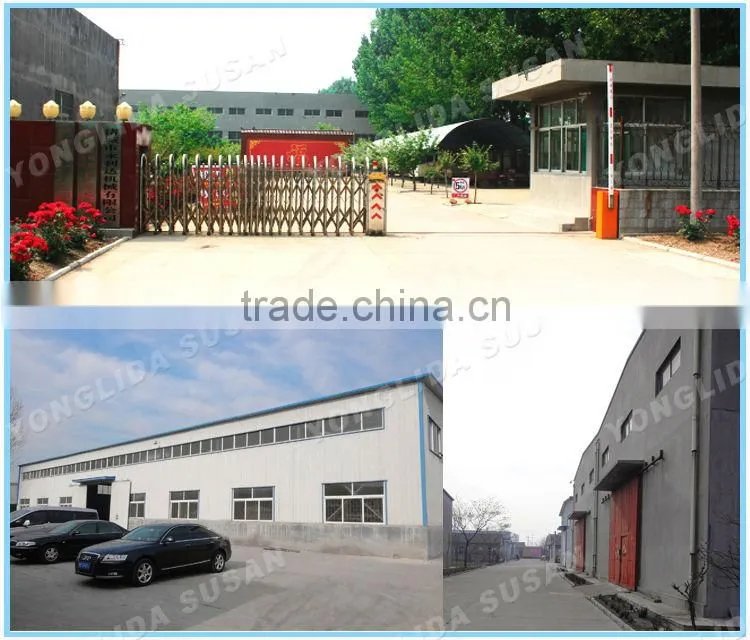

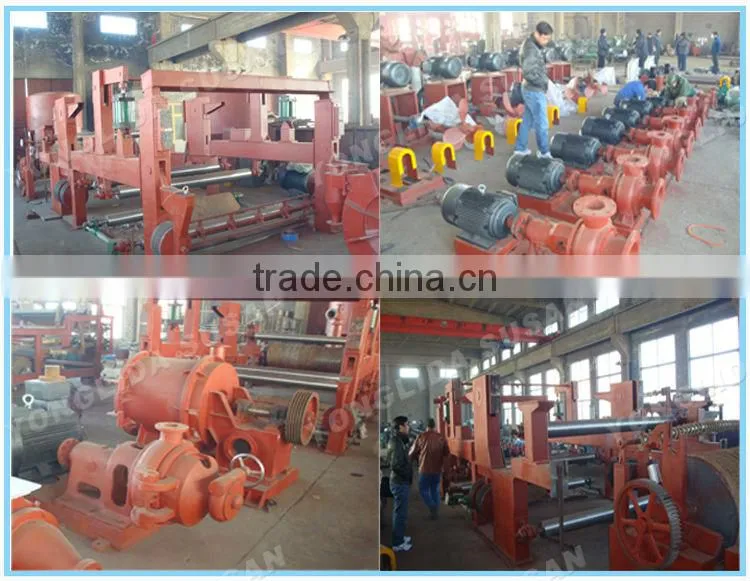

Factory
Zhucheng Yonglida Machinery Limited Company is located in Zhucheng city, Shandong province, China and founded in 1993 covering an area of 30,000 square meters. It is the high technology factory combined with design, development, production and technical service and leads the papermaking equipment and environmental protection equipment industry in China.

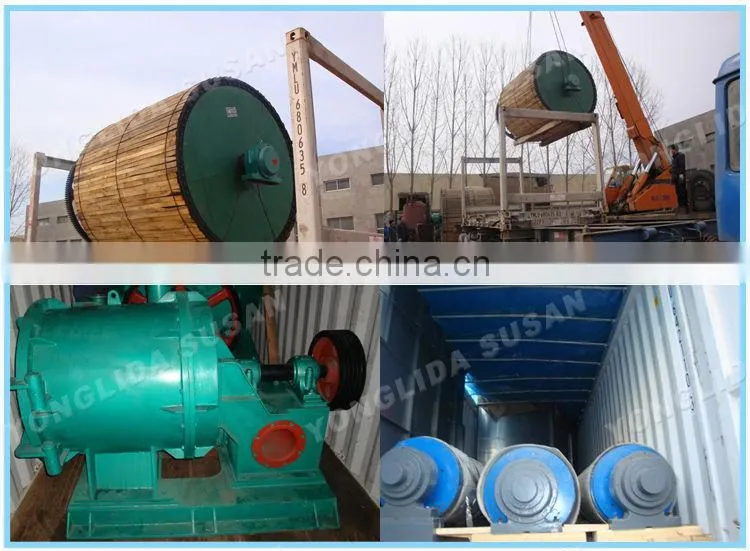

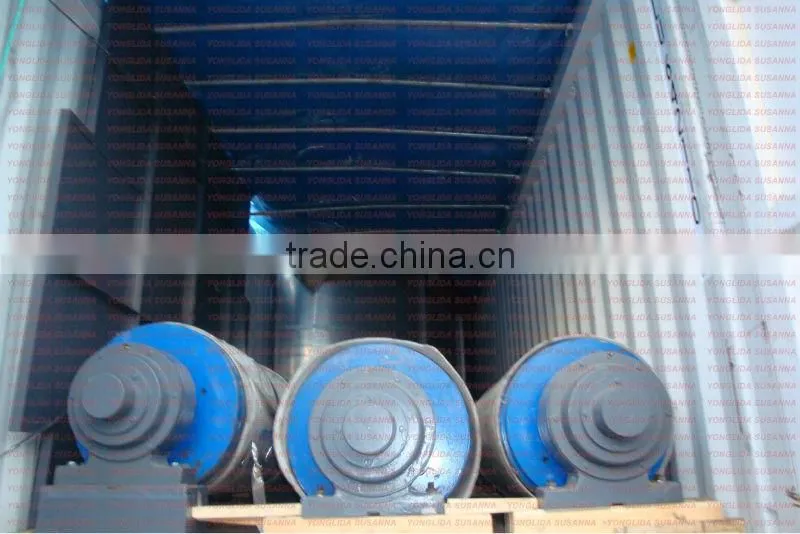

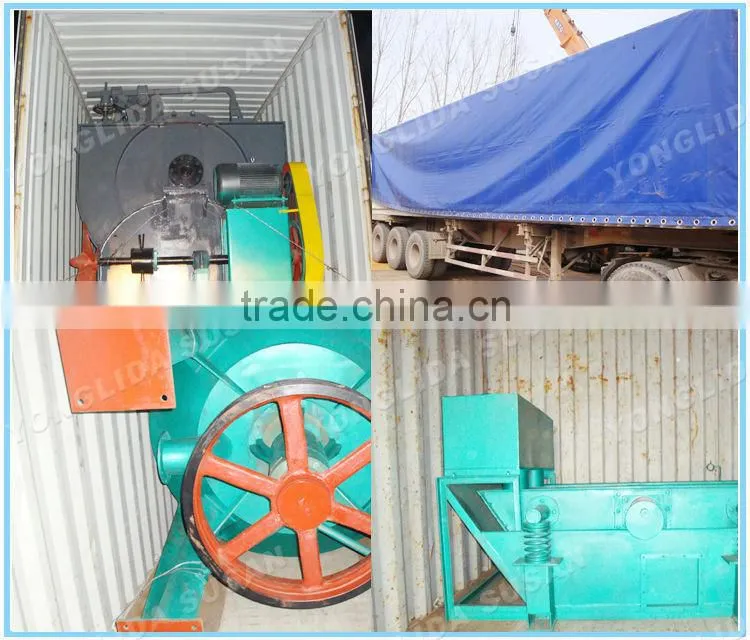

Delivery
|
|
What we can service
1.Pre-sales Service
--General technical advice and business consultation.
--Suitable scheme and equipment as order.
--Designing as special requirement.
--Complete plan with technology and production line equipment.
2. After-sales Service
--One year warranty.
--Inspecting equipments in every working procedure.
--Assisting foundation construction.
--Dispatching engineer to install and debug.
--Training the first-line worker on site;
--Visiting clients and solving production problem.
--Life-long maintenance service.
--Technical exchanging.
Please supply the information below:
--what is the producing capacity demanded?
--what is the raw material?
--what is the outlet paper demanded?
Then we design the paper mill project plan.
Susan Na
Skype: susan198049
Tel: 13964638868
