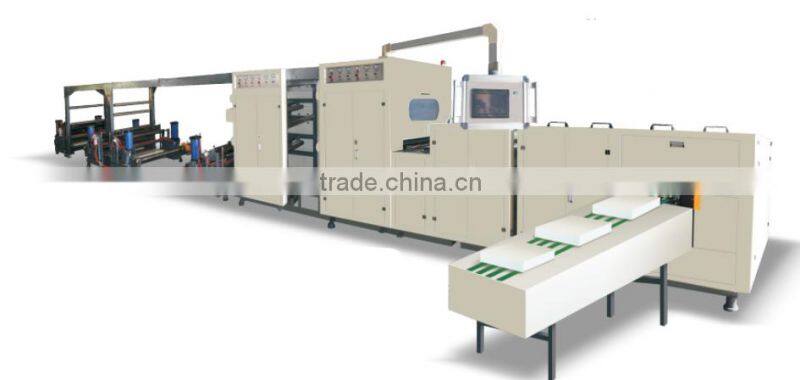

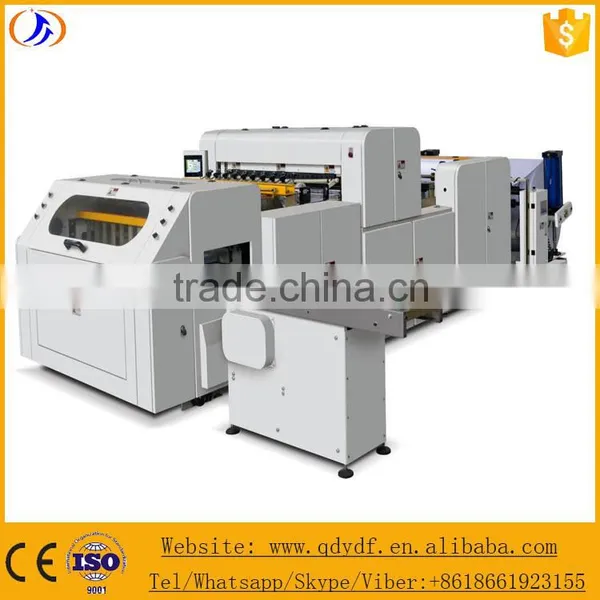

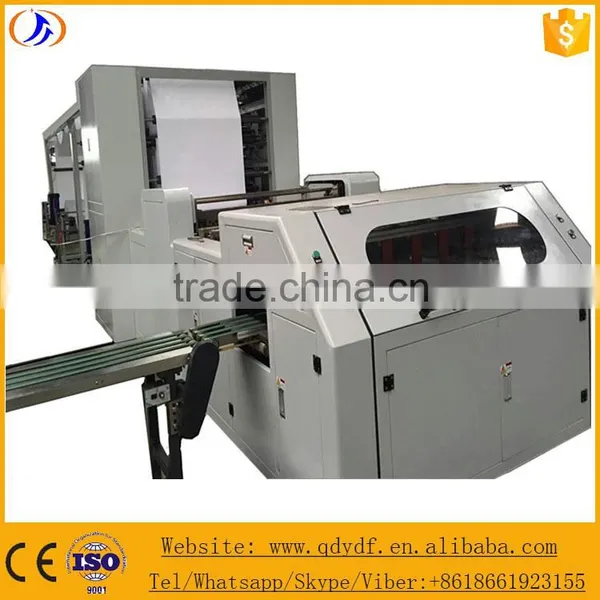

2016 Style Qingdao A4 Paper Cross Cutting Machine with low price

Product Application

2016 Style Qingdao A4 Paper Cross Cutting Machine with low price is suitable for a lot of paper, film, paper & film laminated etc and is best for jumbo roll Cutting&Packaging machine. YDF-HQL-1100 Model a4 Paper Cutting Machine  is top quality new technology and easy operation Cutting machine in china and is well popular with many countries foreign friends.

Main Features

1) Main engine frequency adjust speed,PLC touch screen control system,auto counter quantity, auto fixed length, auto          machine stop when had alarm , auto tension control , color code track etc function.

2) Feeding roll use auto loading system(150#cylinder), air shaft use 3#(74mm paper tube core)

3) Machine rack use 10mm thick cast iron steel plate with steel structure. Bottom of cutting knife use heavy casting structure,    Guide rollers using static balanced aluminum alloy guide roller.

4) Traction drive fixed position use servo motor system, traction driver roller use steel structure. Feeding traction way is      through motor move the chain wheel to drag the rubber roller. The receiving platform is normal automatic finished materials  table, control by motor.

5) Our Machine is best jumbo roll cross cutting machine, it have high precision. High speed and receiving sheet paper flat

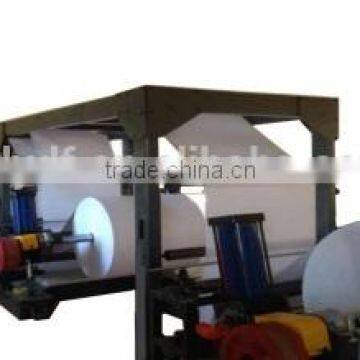

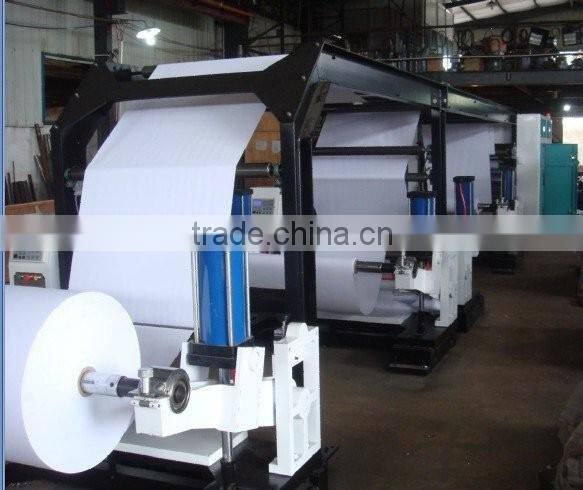

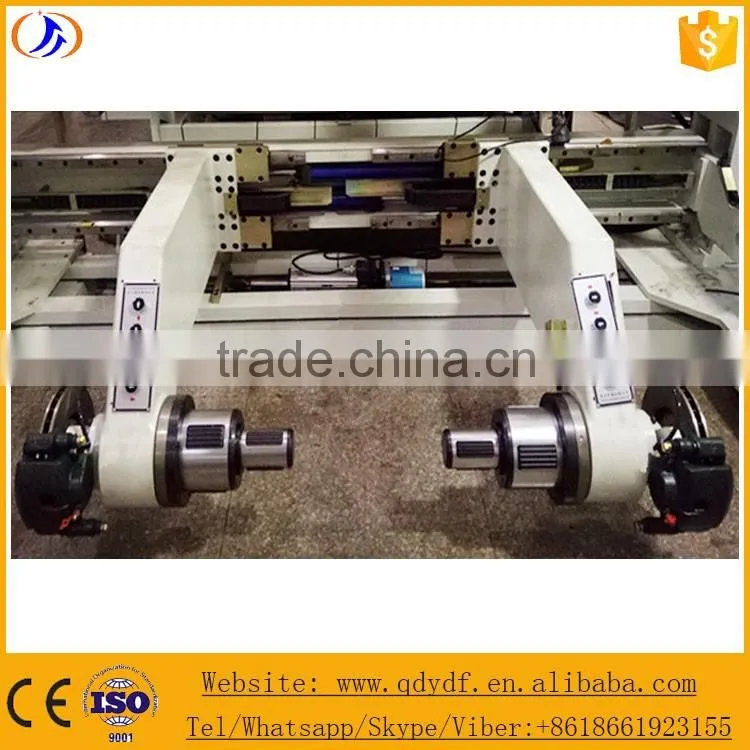

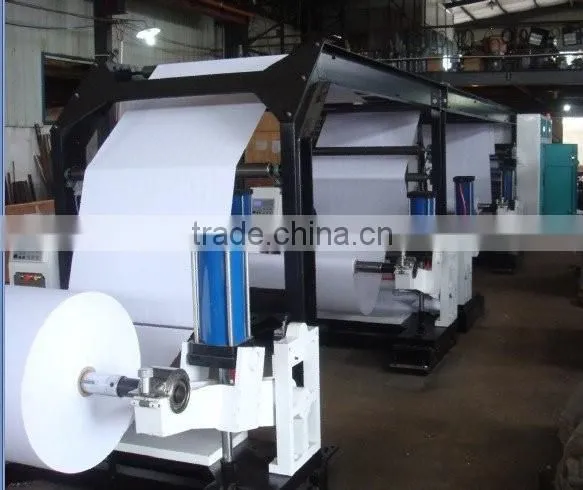

Unwinding Unit：
1). Materials: Machinery rock use steel plate and casting steel structure.
2). Control way：through PLC control way(Panasonic, Japan)
3). Unwinding shaft use air shaft type
4). Unwinding use photocell control edge position control system(EPC)
5). Adopt advanced magnetic-powder brake and hydraulic system,guarantee the paper move stablely,avoiding paper wrinkle or break.

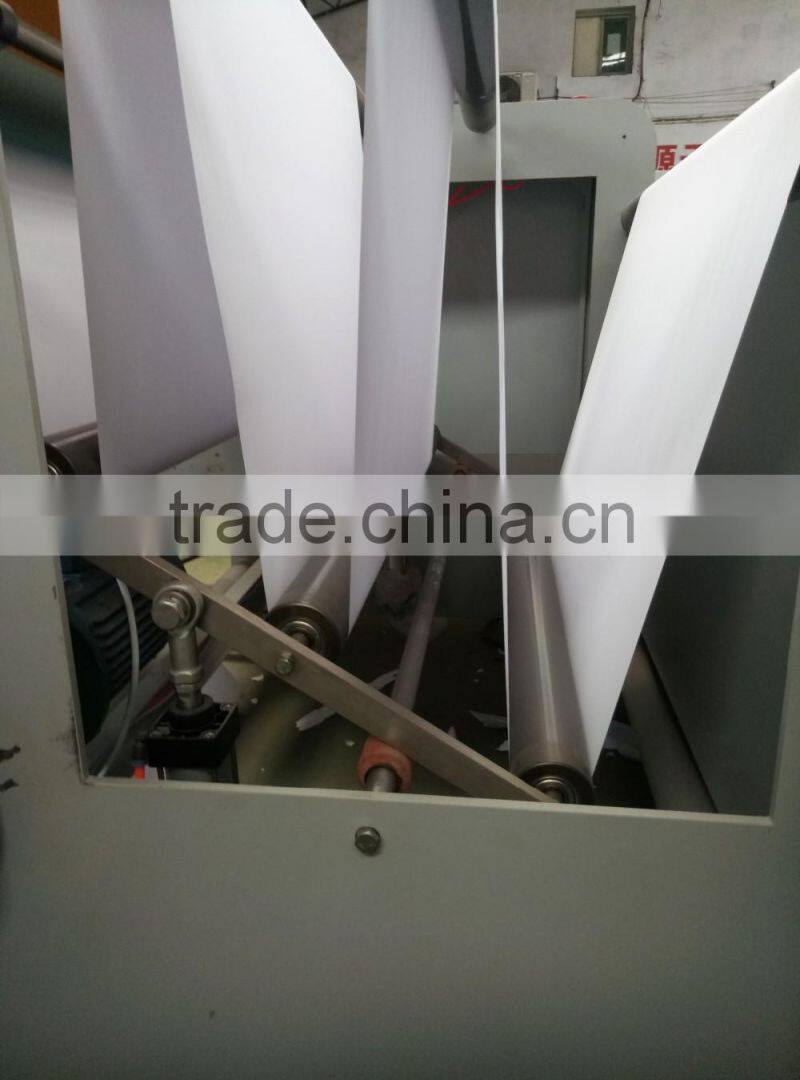

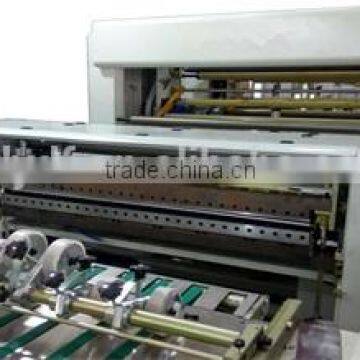

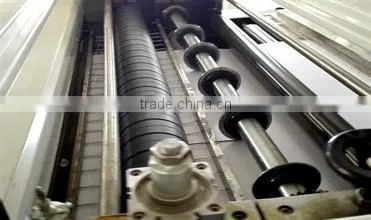

Slitting unit

1) Slitting way: Bottom blade initiative, drive upper balde to slit.
2) Slitting precision : ±0.2mm
3) Adopts round cutters,make sure accurate cut,flat cut,higher precision and high efficiency.

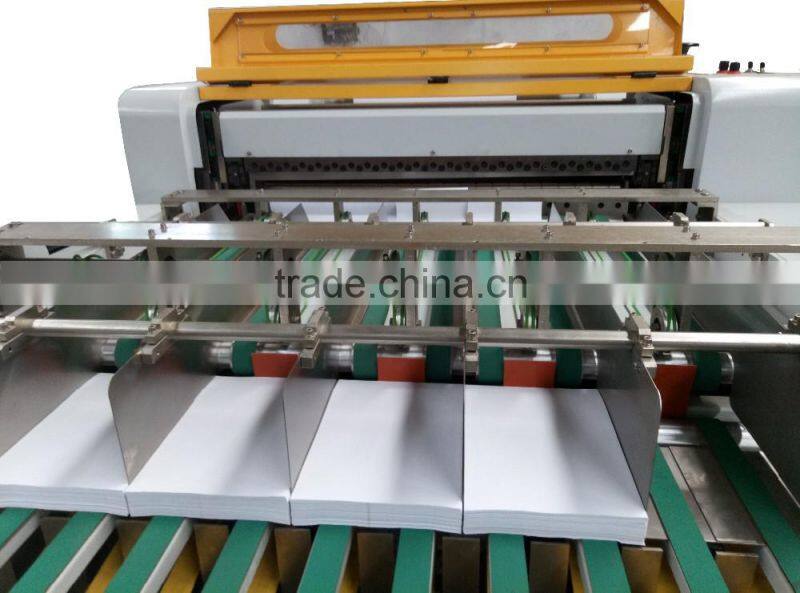

Material conveying and collecting unit:

1).Drive by synchronous belt and synchronous wheel transmission mechanism.
2).Fixed length control by servo motor
3). Back plate by automatic pneumatic control
4). Fequency conversion motor

Warm Tips:

1.Before installation,you should check that equipment’s model and dimension are all right with the parts complete d and level remaining.
2.Before the debugging of installation,Checking each part is correct, lubrication supply normal. water, electricity values reaching the standard.
3.During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and th en examine and repair regularly.
