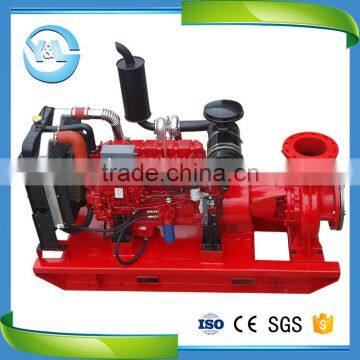

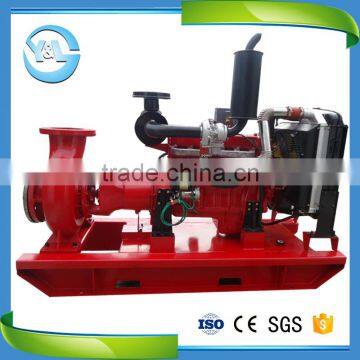

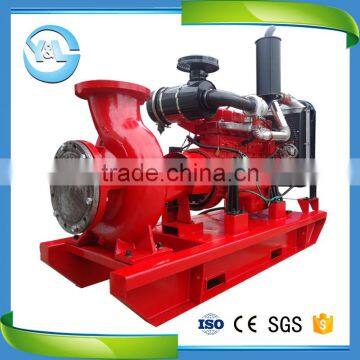

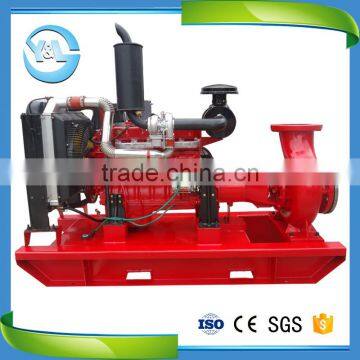

High Pressure Fire Fighting Water Pump
- 1000 Set / Sets per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Y&L | Model Number: | DA |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, Fire Pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | High Pressure | Application: | Fire |
Product Description
High Pressure Fire Fighting Water Pump
Our end suction centrifugal pump is specialized in pumping water , liquid, chemical substances, etc. With compact structure , its working diameter ranges from 50mm to 300 mm, each model of our product has 4-5 impellers with different sizes, the rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This circulation for air conditioner, sewage treatment and other fields. In spite of the same specification, the pump’s performances vary with the diameter of the impeller. (Indicated with the block letters A, B and C in the type.) The pump is simple in structure, reliable in performances, small in size, low in power consumption, convenient in maintenance of good cavitation proof.
Performance Range
Model: DA series back pull out end suction centrifugal pump |
Structure: horizontal, single stage, single suction, back pull out |
Size: 32mm, 40mm, 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm |
Max. Flow: 1400 m3/h |
Max. Head: 150 m |
Rotation Speed: 1450~2900 rpm (50HZ); 1750~3500 rpm (60HZ) |
Shaft Power: 1-284 kw |
Max. Working Temperature: 105 ºC |
Shaft Seal: Mechanical Seal or Packing Seal |
Pump Material: Cast Iron, Stainless Steel 304/316/316L |
Impeller Material: Cast Iron, Copper, Stainless Steel 304/316/316L |
Parameter Table
DA Model | Capacity | Head | Speed | Power | Impeller Dia. | |
Shaft | Motor | |||||
m3/h | m | r/min | kw | kw | mm | |
DA32/26 | 16.2 | 89.3 | 2900 | 11.76 | 15 | 264 |
27.0 | 82 | 14.52 | 18.5 | |||
32.4 | 75.3 | 16.28 | 18.5 | |||
DA40/26 | 21.6 | 93 | 2900 | 13.67 | 15 | 264 |
36.0 | 86.5 | 16.62 | 18.5 | |||
43.2 | 81.5 | 18.08 | 22 | |||
DA50/20 | 36.0 | 62 | 2900 | 10.48 | 15 | 214 |
60.0 | 56 | 13.07 | 15 | |||
72.0 | 51 | 14.70 | 18.5 | |||
DA65/26 | 72.0 | 98 | 2900 | 30.49 | 37 | 264 |
120.0 | 89.9 | 39.95 | 45 | |||
144.0 | 82.3 | 45.12 | 55 | |||
DA80/26 | 114.0 | 95 | 2900 | 45.01 | 55 | 264 |
190.0 | 83.5 | 57.59 | 75 | |||
228.0 | 74 | 63.79 | 75 | |||
DA100/20 | 171.0 | 58.7 | 2900 | 39.04 | 45 | 214 |
285.0 | 50.1 | 48.59 | 55 | |||
342.0 | 42 | 52.49 | 75 | |||
DA125/20 | 216.0 | 56.5 | 2900 | 55.84 | 75 | 214 |
360.0 | 49 | 64.89 | 90 | |||
432.0 | 42.5 | 68.94 | 90 | |||
DA32/26 | 6.6 | 23.7 | 1450 | 1.42 | 2.2 | 264 |
11.0 | 22.4 | 1.76 | 2.2 | |||
13.2 | 21.4 | 1.92 | 3 | |||
DA40/32 | 10.8 | 37.5 | 1450 | 3.56 | 5.5 | 329 |
18.0 | 35.6 | 4.36 | 5.5 | |||
21.6 | 33.8 | 4.73 | 5.5 | |||
DA50/32 | 30.2 | 35.6 | 1450 | 5.64 | 7.5 | 329 |
50.4 | 31.1 | 7.36 | 11 | |||
60.5 | 27.8 | 8.32 | 11 | |||
DA65/32 | 39.0 | 37 | 1450 | 7.28 | 11 | 329 |
65.0 | 34 | 9.40 | 11 | |||
78.0 | 31.7 | 10.36 | 15 | |||
DA80/40 | 60.0 | 56.5 | 1450 | 17.92 | 22 | 409 |
100.0 | 52.2 | 23.11 | 30 | |||
120.0 | 47.8 | 25.52 | 30 | |||
DA100/40 | 90.7 | 56.8 | 1450 | 22.62 | 30 | 409 |
151.2 | 51.8 | 30.03 | 37 | |||
181.4 | 47 | 34.39 | 45 | |||
DA125/50 | 172.8 | 95.1 | 1450 | 75.82 | 90 | 525 |
288.0 | 93.8 | 103.58 | 132 | |||
345.6 | 91 | 118.09 | 160 | |||
DA150/50 | 289.4 | 98 | 1450 | 115.25 | 132 | 525 |
482.4 | 93.8 | 156.91 | 200 | |||
578.9 | 89.5 | 178.53 | 200 | |||
DA200/50 | 414.7 | 88.5 | 1450 | 153.71 | 200 | 525 |
691.2 | 84 | 195.13 | 250 | |||
829.4 | 80.2 | 219.50 | 250 | |||
DA250/50 | 587.5 | 87.5 | 1450 | 199.92 | 250 | 525 |
979.2 | 81.5 | 260.18 | 315 | |||
1175.0 | 75.5 | 284.12 | 315 | |||
DA300/40 | 702.0 | 49.5 | 1450 | 137.09 | 160 | 409 |
1170.0 | 40.8 | 149.37 | 200 | |||
1404.0 | 38.7 | 170.01 | 200 |
More Model, Please Contat Us
Performance Curve
1. Constructional Engineering: clear water transportation, pressurization system, air condition water circulation system, fire extinguishing system, swimming pool and water circulation system.
2. Industry: circulating cooling system, process water for paper-making and paper pulp, steel production, shipbuilding, sea transportation and other manufacturing industry.
3. Mining Industry: water supply, mine drainage, generating station, etc.
4. Others: Municipal water supply, agricultural irrigation and some others.

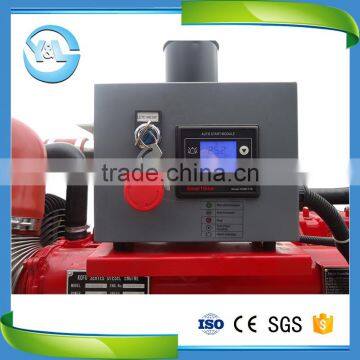

Fire Water Pump with Intelligent Control Panel
1. Delivery: Delivery time will be on time as the contract. Usually, the delivery time of pump is 7-15 working days.
2. Warranty: 1 year for the pump body, 3months for the main working parts.
3. Package: According to your quantity, we use strong carton or plywood case which is durable for ocean transport.
4. Shipping: By Sea or By Air.
5. Payment: we can accept T/T, L/C, West Union and so on.
6. Pre-sales Service: According to your requirement, we will give you our profession advice of pump solution.
7. On-sales Service: We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you our production situation.
8. After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if u need.
