Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Diesel Fire Fighting Pumps

Diesel Fire Fighting Pumps

US$ 200 - 4,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Y&L

Model Number:

D series

Contact Supplier Request Quote Chat Now

Shanghai Y&L Pump Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai /Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Y&L

Model Number D series

Theory Centrifugal Pump

Structure Multistage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Fire

Diesel Fire Fighting Pumps

Product Description

1. Pump Introduction

This series of pump is horizontal multistage single suction centrifugal water pump. This pump is efficient , reliable, and durable with low noise performance, easy maintenance and wide scope of usages. We specialize in manufacturing D, DF, DY and MD series of single-suction multistage centrifugal pumps. The pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance.While oily and corrosive or solid contained fluid can be pumped by means of material modification, sealing methods, and cooling system adding.

D type : Used for transmission of water free of solid particles and temperature below 80℃ , or similar physical and chemical liquid . Suitable for mining ,mill and city water supply and drainage .

DF type : Used for transmission of corrosive liquid with temperature range for -20℃ ~105 ℃ and non-solid particles material ,sealing methods ,structure of the pump and motor model can be determined by medium , gravity ,density ,working temperature and the suction pressure .

DY type : Used for transmission of non- solid oily liquid and petroleum product with temperature range of -20℃ ~105 ℃ and viscosity less than 120sST .

MD type : Used for transmission of neutral liquid from mining well or other similar liquid .The density and size of particles of the sewage shall be less than 1.5 % and 0.5 mm respectively . The temperature range of the sewage shall be -20℃ ~80 ℃ .

2. Specification Table

D(DF,DY,MD)280-43×(2-9)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	Impeller Dia	Pump Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	mm	kg
2	185	51.4	94	1480	69	68.6	φ360	667
	280	77.8	86		77	85.32
	355	93.1	76		75	92.5
3	185	51.4	141	1480	69	102.9	φ360	787
	280	77.8	129		77	127.7
	355	93.1	114		75	138.8
4	185	51.4	188	1480	69	137.7	φ360	908
	280	77.8	172		77	170.3
	355	93.1	152		75	185.0
5	185	51.4	235	1480	69	171.6	φ360	1028
	280	77.8	215		77	212.3
	355	93.1	190		75	231.3
6	185	51.4	282	1480	69	205.9	φ360	1149
	280	77.8	258		77	255.5
	355	93.1	228		75	277.5
7	185	51.4	329	1480	69	240.2	φ360	1271
	280	77.8	301		77	298.1
	355	93.1	266		75	323.8
8	185	51.4	376	1480	69	274.5	φ360	1391
	280	77.8	344		77	340.7
	355	93.1	304		75	370.0
9	185	51.4	423	1480	69	308.8	φ360	1512
	280	77.8	387		77	383.3
	355	93.1	342		75	416.3

3. Performance curve

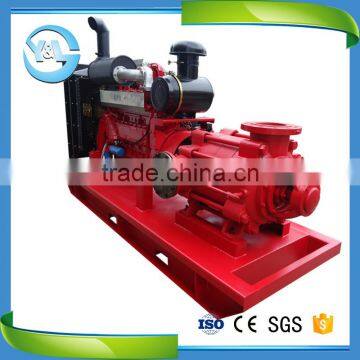

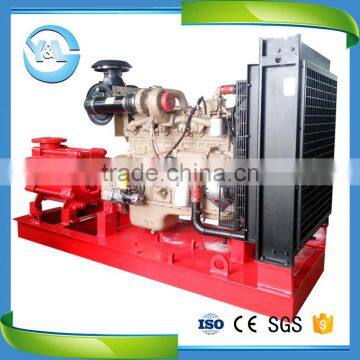

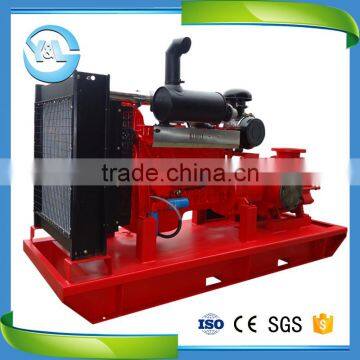

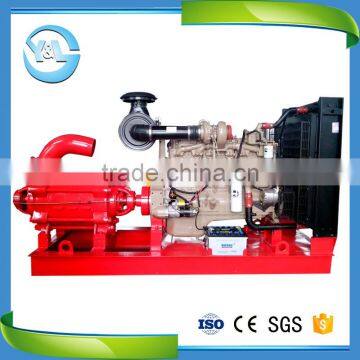

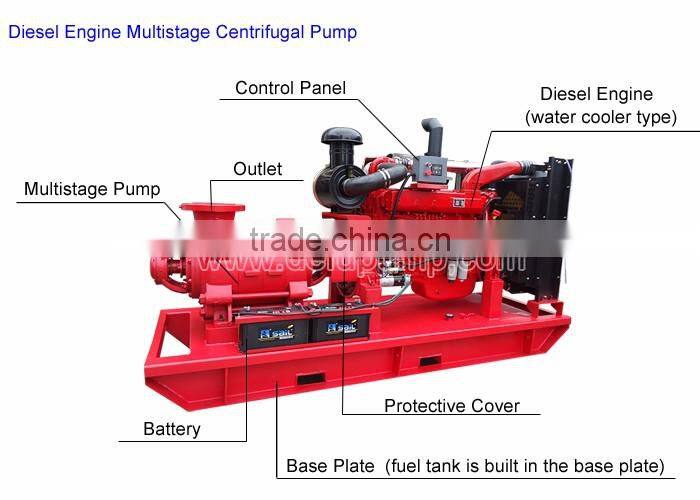

4. Pump Pictures

5. Application

Our horizontal multistage centrifugal water pump can be applied for transporting clear water or liquid with physicochemical property similar to that of clear water. These shall be no solid particle, abrasive material or suspended solid containing in the liquid, Particularly, this multistage centrifugal pump can be used for delivering hot water, oil , corrosive liquid or medium containing abrasive material through special employment of material, sealing more, or cooling system.
