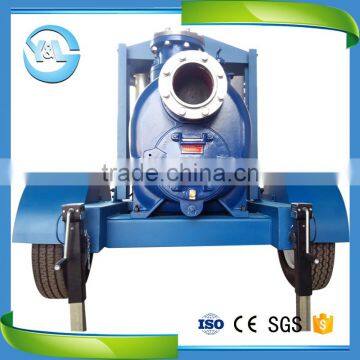

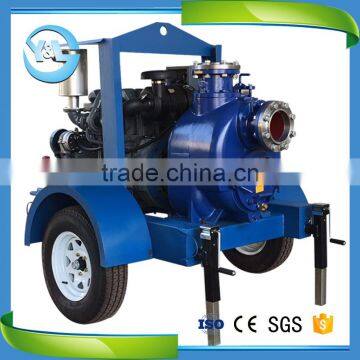

8 Inch Farm Irrigation Diesel Water Pump

Performance Range

>>>Parameter table of 8 inch farm irrigation diesel water pump

>>>Performance Curve of 8 inch Water Pump

1. Berif Introduction

JT&JU series non clog self priming centrifugal sewage pump is a kind of specialized sewage disposal equipment, designed with super strong anti-clogging and impurity disposal capability. It can be used to dispose ultra long fiber impurities and more than 3 inch solids.

Self-priming pumps are easy to operate and service. They can run high and dry above the water level, so maintenance can be completed quickly and easily. Our self-priming pumps specially designed for dirty water, limited solids and clear liquids applications. Self-priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.

2. Structure

3. Application

♦ Municipal engineering ,waste water treatment ,constructional engineering

♦ Sewage collection or discharge in residential community

♦ Sewage discharge in hospital and hotel

♦ Centralized and staged disposal in sewage treatment plant

♦ Water drainage station

♦ Seriously polluted water discharge

♦ Agricultural irrigation etc.

1) High and Dry mounting for fast and easy services

JT&JU series are self-priming centrifugal pump , they can be mounted on high and dry at floor level ,with only the suction line down in the liquid . Service or maintenance can be performed quickly and simply with common hand tools and without having to pull the pump . There are no long drive shafts to install and align . no hoists or cranes required , and no need for service personnel to enter the pump.

2)Clogging is kept to a minimum ,so downtime is virtually eliminated

Solids handling pump is designed for virtually clog-free performance,will handle spherical solids up to 3 inch ( 76mm ) in diameter and allow solids to pass through the entire pump , not just the impeller . If a clog does occur ,it can be eliminated quickly and easily by opening the cover plate, removing the clog ,and returning the pump to normal operation ,all in just a few minutes’ time.

3)Service is simple , fast and economical

The removable cover plate allows for convenient inspection or service of the impeller ,seal and wear-plate , with no special tools required . If the pump shaft or bearing need service , the entire rotating assembly can be removed without disturbing the pump casing or piping . plus , the rotating assembly is sealed with an O-ring which permits external clearance adjustments.

4)Automatic priming means dependable performance

Require very little attention , resulting in significant savings of maintenance time and money , Properly applied and installed , and after an initial priming , will continue to re-prime automatically . Our T series pumps will re-prime with only a partially filled pump casing and a completely dry suction line.

1. Delivery: Delivery time will be on time as the contract. Usually, the delivery time of pump is 7-15 working days.

2. Warranty: 1 year for the pump body, 3months for the main working parts.

3. Package: According to your quantity, we use strong carton or plywood case which is durable for ocean transport.

4. Shipping: By Sea or By Air.

5. Payment: we can accept T/T, L/C, West Union and so on.

6. Pre-sales Service: According to your requirement, we will give you our profession advice of pump solution.

7. On-sales Service: We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you our production situation.

8. After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if u need.
