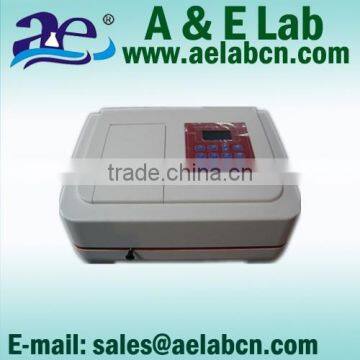

uv visible light spectrum meter
- 100 Unit / Units per Month
- Guangzhou/Shanghai China
- T/T L/C D/P D/A Credit Card PayPal
- Visible spectrophotometer
- Touch screen Double beam UV Vis Spectrophotometer Price
- Cheap Double beam UV Vis Spectrophotometer in China
- 190-1100nm wavelength Double beam Scanning UV Vis Spectrophotometer
- Cheap N6000 Double beam UV Vis Spectrophotometer Price with PC software
- uv1700 uv1720 single beam uv vis scanning spectrophotometer with PC software
Product Details
Place of Origin: | Guangdong, China | Brand Name: | A & E LAB | Model Number: | AE-S60 |
Size: | 550X420X280mm | Weight: | 14kg | Wavelength Range: | 190-1000nm/325-1000nm |
Product Description
Specifications
1.uv visible light spectrum meter2.Delivery Time: within 7 days after received payment
3.MOQ: 1 unit
4.Certification: CE&ISO
UV Vis Spectrophotometer
A & E Lab.
A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer,
PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker,
See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!
Key Features:
* Single beam spectrophotometer with highly stable optics.
* Extremely versatile with full functionality from
UV range 190-1000nm & VIS range: 325-1100nm.
* Spectral bandwidth 4nm.
* 2.5 inches LCD Display.
* USB port for data storage.
* ISO/CE Certificate passed.
* A & E Lab PC software available.
* Extensive range of accessories available.
Application:
* Can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up
to 200 results.
* It can set up various standard curves according to customer/s solutions and find the concentration of unknown
solutions.
* Equipped with imported deuterium lamp which ensures low stray light, photometric accuracy and is easy to be
replaced.
* Optional software UVProfessional can expand the applications to Spectrum scanning, kinetics and quantitative, et c.
Functions:
v T Mode: Continuously measure the Transmittance of samples
v A Mode: Continuously measure the Absorbance of samples
v C Mode: Standard Curve method, can use at most 9 standard samples to create a new standard curve, and to
measure the unknown samples by the new one.
v F Mode: Coefficient Method, Input the known K and C to measure the unknown concentration samples.
Ordering Information:
Order Code | Description |
AE-S60-2U | 190-1000nm, Bandwith: 2/4nm (optional) |
AE-S60-2UPC | 190-10000nm, Bandwith: 2/4nm, with PC software. |
AE-S60-4U | 200-1000nm, Bandwith: 4nm. |
AE-S60-4UPC | 200-1000nm, Bandwith: 4nm, with PC software. |
AE-S60 Series Visible Spectrophotometer | |
AE-S60-4V | 325-1000nm, Bandwith: 4nm. |
AE-S60-4VPC | 325-1000nm, Bandwith: 4nm, with PC software. |
Technical Specifications:
Wavelength | Photometric | ||
Wavelength Range | UV range: 190-1000nm VIS range: 325-1000nm | Photometric Accuracy | ±0.5%T |
Band Width | 4nm | Photometric Repeatability | 0.3%T |
Wavelength Accuracy | ±1nm | Photometric Display Range | 0-200%T, -0.3-3.0A, 0-9999C |
Wavelength Repeatability | 0.5nm | Stability | 0.002A/h @ 500nm |
Wavelength Setting | Auto | Stray Light | ≤0.3%T@220nm, 360nm |
Data Output Port | USB | ||
Printer Port | Parallel Port | ||
Optical System | Single Beam (1200 lines/mm grating) | ||
Display | 128x64 Dots LCD | ||
Detector | Silicon Photodiode | ||
Software | UV or VIS software | ||
Packing Size & Weight | 550×420×280mm & 14kg |
