Specifications
1. (band width 0.5/1.0/2.0/4.0nm)UV Vis Spectrum analyzer2.Warranty:1year
3.MOQ:1Pc
A & E Lab.
A & E Lab Hot Selling are include:
UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Melting Point Device, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Shaker Incubator, etc.
Welcome to inquire us!

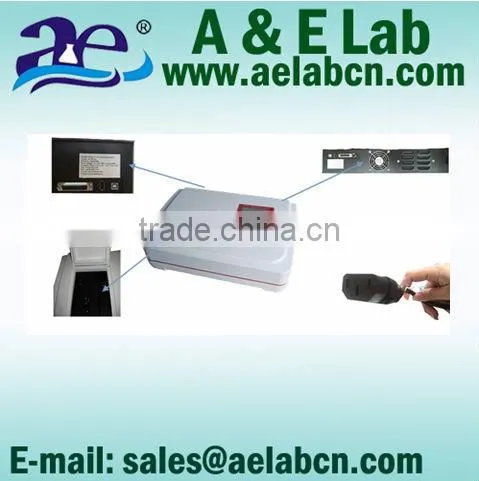

(Band width 0.5/1.0/2.0/4.0nm) UV Vis Spectrum analyzer
Model:AE-S80-MS
Technical Specifications:
AE-S80 series are large scanning uv vis spectrophotometer which combine best features of single beam
spectrophotometer.They vary in bandwidth, wavelength accuracy and dimension. They provide excellent performance for measurements in the range of 190nm to 1100nm. All spectrophotometers features high performance sealed
optics mounted on a stable machined platform.
AE-S80 series is ideal for quality control, general research, pharmaceutical, biochemical and clinical laboratory
applications.Such as: quantitative analyses, kinetics, wavelength scanning, multiple components and DNA/Protein analysis,etc.
Ordering Information:
Order Code | Description |
AE-S80-MS | Large screen, single bean, 4 cell holder, Bandwith: 0.5/1.0/2.0/4.0/5.0nm, with PC software. |
AE-S80-1S | Large screen, single beam, 4 cell holder, Bandwith: 1nm, with PC software. |
AE-S80-2S | Large screen, single beam, 4 cell holder, Bandwith: 1.8nm, with PC software. |
Technical Specifications:
Wavelength | Photometric | ||
Wavelength Range | 190-1100nm | Photometric Accuracy | ±0.3%T |
Wavelength Accuracy | ±0.3nm | Photometric Repeatability | 0.2%T |
Wavelength Repeatability | 0.2nm | Photometric Display Range | 0-200%T, -0.3-3.0A, 0-9999C |
Band Width | 1nm/1.8nm/0.5,1,2,4,5nm | Stability | 0.002A/h @ 500nm |
Others | Baseline Flatness | ±0.001A | |
Data Output Port | USB | Noise | ±0.001A |
Printer Port | Parallel Port | Stray Light | ≤0.05%T @220nm, 360nm |
Optical System | Single Beam (1200 lines/mm grating) | ||
Display | LCD (320X240 Dots ) | ||
Detector | Silicon Photodiode | ||
Lamps | Deuterium & Tungsten Halogen Lamp | ||
Power Supply | AC 220V/50Hz, 110V/60Hz. | ||
Packing Size & Weight | 860x660x465mm & 35kg | ||
