Help Center(Band Width:0.5nm/1.0nm/2.0nm/4.0nm)Double Beam Thermos UV Spectrophotometry
Related Products
Specifications
1.(Band Width:0.5nm/1.0nm/2.0nm/4.0nm)Double Beam Thermos UV spectrophotometry2.Warranty:1 year
3.MOQ:1 pc
A & E Lab Hot Selling are include:
UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Melting Point Device, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Shaker Incubator, etc.
Welcome to inquire us!
(Band Width:0.5nm/1.0nm/2.0nm/4.0nm) Double Beam Thermos UV spectrophotometry
Introduction:

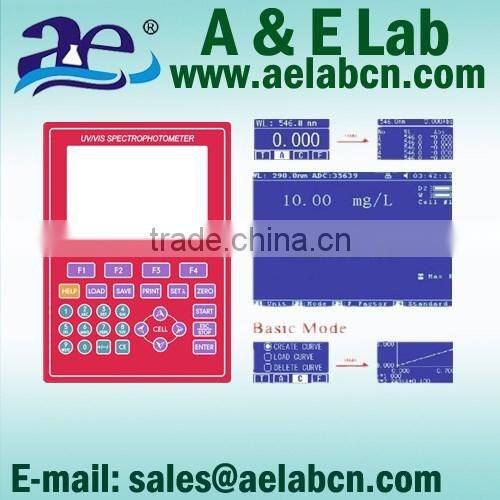

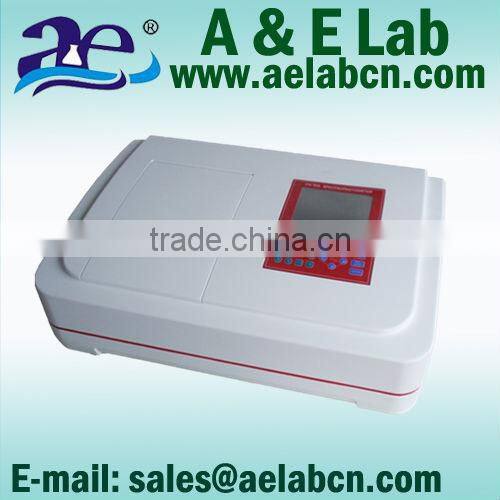

AE-S90 Series are wide screen double beam spectrophotometer. Its integrated design assures long term stability
and durability. The highly stable optics and two detectors measure the sample and reference simultaneously
optimising measurement accuracy.
It has measurement modes for photometrics, concentration, multi-wavelength, spectrum scanning, kinetics, quantitation,
DNA and protein analysis.
The PC software is supplied as standard and offers additional functionality with preloaded methods for DNA and protein analysis, as well as extensive post-measurement tools, unlimited results saving and easy export of data.
The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the uv/vis spectrum starting from 190nm and into the nearinfrared 1100nm. It is ideal for quality control, general research, pharmaceutical, biochemical and clinical laboratory applications.
Ordering Information:
Order Code | Description |
AE-S90-MD | Large screen, double beam, 2 single cell holder, Bandwith: 0.5/1.0/2.0/4.0/5.0nm, with PC software. |
AE-S90-1D | Large screen, double beam, 2 single cell holder, Bandwith: 1nm, with PC software. |
AE-S90-2D | Large screen, double beam, 2 single cell holder, Bandwith: 1.8nm, with PC software. |
Technical Specifications:
Wavelength | Photometric | ||
Wavelength Range | 190-1100nm | Accuracy | ±0.3%T |
Wavelength Accuracy | ±0.3nm | Photometric Repeatability | 0.2%T |
Wavelength Repeatability | 0.2nm | Photometric Display Range | -0.3-3A,0-200%T,0-9999C |
Bandwith | 1nm/1.8nm/0.5,1,2,4,5nm | Stability | ± 0.001A/h @ 500nm |
Others | Baseline Flatness | ±0.001A | |
Data Output Port | USB | Noise | ±0.001A |
Printer Port | Parallel Port | Stray Light | ≤0.05%T @220nm, 360nm |
Optical System | Double Beam (1200 lines/mm grating) | ||
Display | LCD (320x240 Dots ) | ||
Lamps | Deuterium & Tungsten Halogen Lamp | ||
Detector | Silicon Photodiode | ||
Software | UV PC Software | ||
Power Supply | AC 220V/50Hz, 110V/60Hz. | ||
Packing Size & Weight | 860x660x465mm & 35kg | ||
